BBQ Shisha Wood Sawdust Coconut Shell Olive Shell Charcoal Briquette Press Making Machine

Certification
Good quality Honeycomb briquette machine for sales
Good quality Honeycomb briquette machine for sales
I'm Online Chat Now

BBQ Shisha Wood Sawdust Coconut Shell Olive Shell Charcoal Briquette Press Making Machine

China BBQ Shisha Wood Sawdust Coconut Shell Olive Shell Charcoal Briquette Press Making Machine supplier
BBQ Shisha Wood Sawdust Coconut Shell Olive Shell Charcoal Briquette Press Making Machine supplier BBQ Shisha Wood Sawdust Coconut Shell Olive Shell Charcoal Briquette Press Making Machine supplier BBQ Shisha Wood Sawdust Coconut Shell Olive Shell Charcoal Briquette Press Making Machine supplier BBQ Shisha Wood Sawdust Coconut Shell Olive Shell Charcoal Briquette Press Making Machine supplier

Large Image :  BBQ Shisha Wood Sawdust Coconut Shell Olive Shell Charcoal Briquette Press Making Machine

Product Details:

Place of Origin: China
Brand Name: Yonghua
Certification: CE, ISO
Model Number: Hydraulic

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 5000-15000 per set
Packaging Details: Wooden case or Standard container
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T
Supply Ability: 25 sets per month
Contact Now
Detailed Product Description
Condition: New Warranty: 1 Year
Type: Briquette Machines,Custom Design Motor Type: AC Motor,DC Motor,Other,Stepper Motor
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Field Maintenance And Repair Service,Field Installation Dimension(l*w*h): As Specification Customized
Production Capacity: 50 Sets Per Month Certification: CE,ISO9001
Power(w): 7.5-15KW Raw Material: Charcoal Powder,sawdust,Coal.charcoal Powder,coal Dust,etc
Color: Client's Required Briquette Shape: Round,Round Square Hexagon Pillow,Cylinder-shaped,pentagon And Hexagon With A Hole In The Center
Capacity: 11-40 Pieces/minute Application: BBQ,Charcoal Briquetting
Name: Briquette Press Machine,shisha Charcoal Briquette Machine,Roller Press Bbq Charcoal Coal Briquette Machine Price Voltage: 380v,220V/380V/415V/460V
Keyword: Shisha Charcoal Tablet Press Machine/Briquette Making Machine Product Name: Briquette Press Machine

BBQ Shisha Wood Sawdust Coconut Shell Olive Shell Charcoal Briquette Press Making Machine



Brief Introduction:

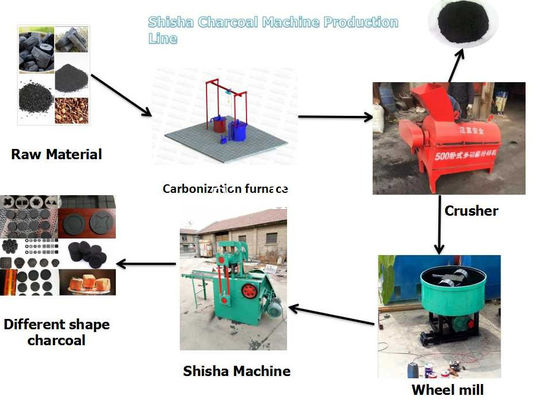

Shisha charcoal machine is specilize in make shisha hookah briquette. This machine use hydraulic principle, owing to the pressure is very large, so it can press good quality final product, so does the briquette quality is very good, our machine use PLC system, and about the product line, we can achieve all automatic production, of course, if you are beginner, want lower invest, we also can offer you semi-automatic production line. Machine include PLC system, hydraulic cylinder, conveyor, molds and main machine.

BBQ Shisha Wood Sawdust Coconut Shell Olive Shell Charcoal Briquette Press Making Machine

Main parameters:

Model SBJ-9 SBJ-48
Applicable materials charcoal powders, coal powders, sawdust, any powders materials
Capacity

11-16 pieces / time

20-40 times/min

48 Pieces per Time (30 mm)

8-20 times/min

Motor 7.5 kw (4 pole) 18.5kw (4 pole)
Diameter of briquettes

20,25,30 33 35 38 40 43 mm(round);

20-40 mm(cubic)

20,25,30 33 35 38 40 43 mm(round);

20-40 mm(cubic)

Feeding materials < 3 mm < 3 mm
Briquettes shape

Round shape and Cubic shape

Or as customers’ request

Round shape and Cubic shape

Or as customers’ request

Pressure 40-60tons(adjustable) 40-150tons
Press type Mechanical Press Hydraulic Press
Overall size

2500x 950x1550 mm

(includes conveyor)

3500*2000*1800mm

(includes conveyor)

Packing size 1500x1200x1750 mm 2100*2100*1900mm
Weight 1500 KG 5500kg



Festures:

(1) NO binder needed during production to make clean & green fuel briquette.
(2) Quantity of heat of final product is 500-1000Kcal higher than raw material.
(3) Can replace firewood and liquefaction gas, with less investment.
(4) Small cubage and easy for transport.
(5) Adopt high-speed, high-frequency stamping technique, ensure the stability of the molding.

shisha charcoal briquette machine Can Make

1.Size and shapes:
1) Size: round: 20-45mm, square: 15-55mm
2) Shape: round, square, restabgle, triangle, cylinder, diamound, cone, etc.
3) The shape of briquettes can be customized.
2. Characteristics:
1) The shisha charcoal briquettes use quick burning charcoal technology, can burn from the top to down.
2) Firepower fierce, smokeless, tasteless, non-toxic, long burning time.
3) Square shape shisha charcoal can burn for about 1-1.5 hours.
4) Round tablet shisha charcoal can burn for about 40 minutes.



Application:



The Shisha tablet press is widely used in refractory, power plants, metallurgy, chemicals, energy, transportation, heating, etc.

BBQ Shisha Wood Sawdust Coconut Shell Olive Shell Charcoal Briquette Press Making Machine

Shape and size

BBQ Shisha Wood Sawdust Coconut Shell Olive Shell Charcoal Briquette Press Making Machine
