Civil briquettes press punching type charcoal briquette machine

Civil briquettes press punching type charcoal briquette machine

Civil briquettes press punching type charcoal briquette machine
Civil briquettes press punching type charcoal briquette machine Civil briquettes press punching type charcoal briquette machine Civil briquettes press punching type charcoal briquette machine Civil briquettes press punching type charcoal briquette machine

Large Image :  Civil briquettes press punching type charcoal briquette machine Get Best Price

Product Details:
Place of Origin: Henan Province, CHina
Brand Name: Sinolion
Certification: CE,ISO
Model Number: 120
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 1000-4000 per set
Packaging Details: wooden case or standard container
Delivery Time: 5-7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 20 sets per month
Detailed Product Description
Condition: New Warranty: One Year
Type: Briquette Machines,Custom Design Motor Type: AC Motor,DC Motor,Other,Stepper Motor
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Field Maintenance And Repair Service,Field Installation Dimension(l*w*h): Madel
Certification: CE,ISO9001,ISO9001-2008,ISO Power(w): 7.5-15KW
Raw Material: Charcoal Powder,Coal.charcoal Powder,coal Dust Color: Client's Required,Blue,Customer's Request,green/blue/green,Customized
Briquette Shape: Round,Cylinder-shaped Capacity: 11-40 Pieces/minute
Application: BBQ,Fuel,Charcoal Briquetting Name: Briquette Press Machine,coal Briquettes Pressing Ball Briquetting Roller Press Machine
Voltage: 380v,220V/380V/415V/460V,380v 50hz 3phase Keyword: Sawdust Briquette Machine Supplier
Product Name: Briquette Press Machine,Brequitte Making Machine Weight: 1-25 Ton Per Unit

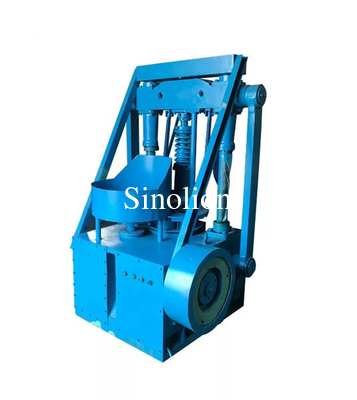

Civil briquettes press punching type charcoal briquette machine

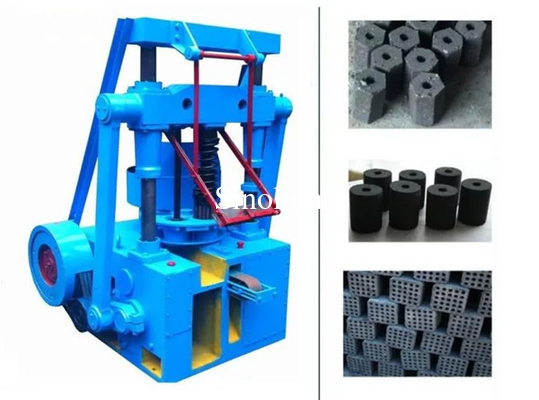

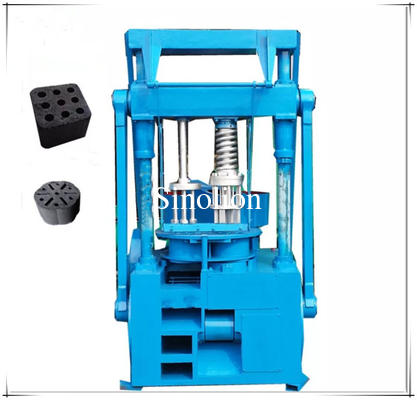

Brief Introduction of honeycomb briquette press machine:

It is maily used to process coal/charcoal powder into cylinder shape briquette with high density and standard looks,and marked with a number of holes inside the cylinder makes it seems like honeycomb,because it can increase the surface area of coal.make the full combustion of coal, to reduce rsource waste. Also our briquette machine now widely used to produce new-type ignited briquette.

Civil briquettes press punching type charcoal briquette machine 0



Product Application

The honeycomb press machine is mainly used to make the coal briquettes in honeycomb shapes. It has been popularly used in China for almost 80 years. Previously raw coal been processed into the coal sphere slightly larger than ping-pong, and later the coal processed into one cylinder, and marked with a number of holes inside the cylinder makes it seems like honeycomb, because it can increase the surface area of coal, make the full combustion of coal, to reduce resource waste. Mostly it is used in coal, metallurgical powder, powder cold-pressing ball, refractory materials.



Suitable Raw Materials:

a.raw materail: any kind of coal and charcoal powder



b. raw material diameter: less than 3mm



c. raw material moisture content: 8-15%



d. add different binder according to your raw material and final briquettes requirements.(liquid and dry powder binder).

Civil briquettes press punching type charcoal briquette machine 1



Advantages:

1. high profit and low cost in raw material
2. increase the net calorific value per unit volume after briquetting
3. energy saving, friendly-environment, low-consumption
4. no chemical addictives, no smell, no smoke
5. easy to transport and store as densities product



Parameters


Model
Capacity
Motor power
Diameter of model
Pressure
LFM140
45-50 pieces/minute
7.5kw
140mm
20-35 tons
LFM160
45-50
pieces/minute
7.5kw
160mm
20-35 tons
LFM180
20-26
pieces/minute
11kw
180mm
35-45 tons
LFM220
20-26
pieces/minute
11kw for coal
15kw for charcoal
220mm
30-40 tons



Civil briquettes press punching type charcoal briquette machine 2

Our services

♥. Pre-sale service: design and manufacture machines for you as your special requirements,

provide you with project, process design, and purchase programm.

♥. On-sale service: accompany with you to look around our factory, explain the manufacture

process of our machines, and check the working performance of our machines.

♥. After-sale service: engineers are available to install and debugging equipments of the whole

production line, besides, commissioning and training operators on site.







Civil briquettes press punching type charcoal briquette machine 3

Civil briquettes press punching type charcoal briquette machine 4
