Portable Gold Trommel Machine Gold Separating Equipment From China Manufacturer

Portable Gold Trommel Machine Gold Separating Equipment From China Manufacturer

Portable Gold Trommel Machine Gold Separating Equipment From China Manufacturer
Portable Gold Trommel Machine Gold Separating Equipment From China Manufacturer Portable Gold Trommel Machine Gold Separating Equipment From China Manufacturer Portable Gold Trommel Machine Gold Separating Equipment From China Manufacturer Portable Gold Trommel Machine Gold Separating Equipment From China Manufacturer

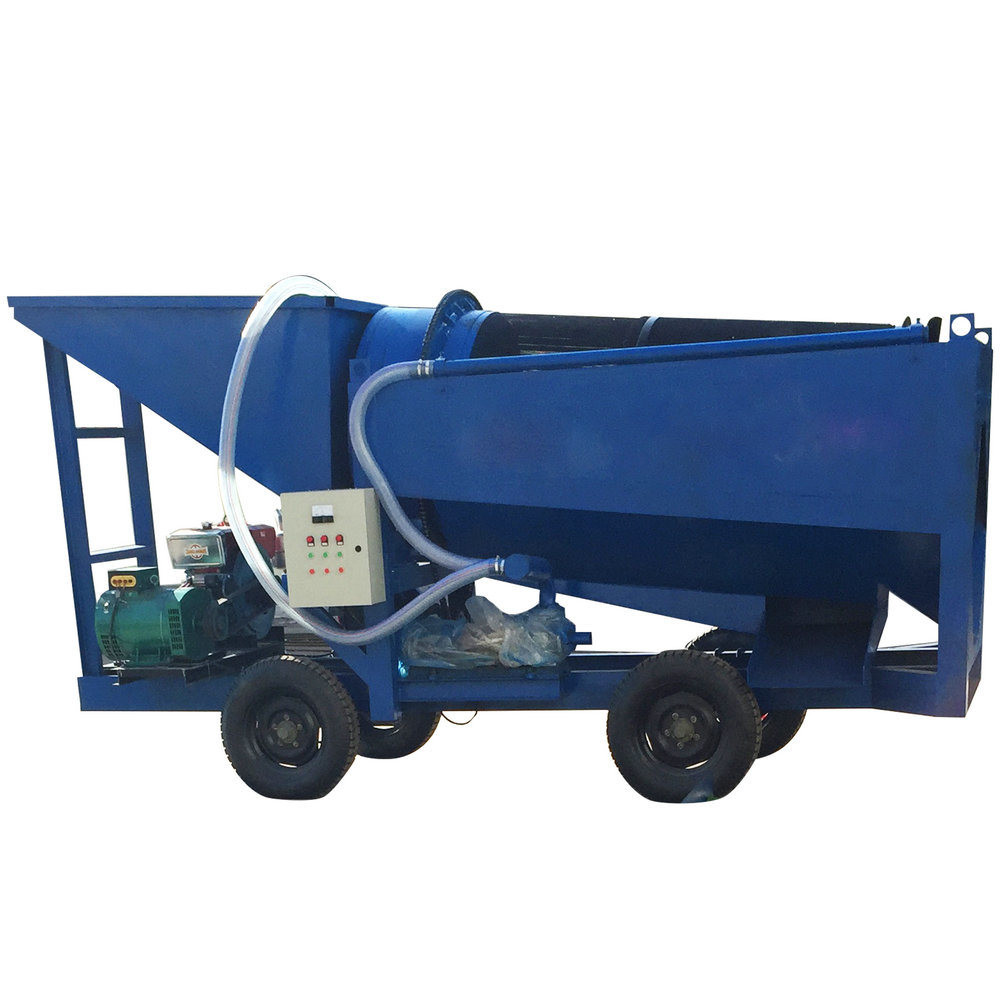

Large Image :  Portable Gold Trommel Machine Gold Separating Equipment From China Manufacturer Get Best Price

Product Details:
Place of Origin: Henan
Brand Name: Sinolion
Certification: CE,SGS
Model Number: YGTS1020, YGTS1225, YGTS1545, YGTS1548, YGTS1848, YGTS2060
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: usd10000-50000/set
Packaging Details: wooden case and standard container
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10 setsm per month
Detailed Product Description
Type: Circular,trommel Screen,clinder Rotary Screen,washing Machine After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Field Installation,commissioning And Training
Warranty: 1 Year Voltage: 220V/380V,380V,380-440v,Customized,your Request
Condition: New Application: Ore,Chemicals,gold,ceramic,Waste Water Treatment
Capacity: 10-40 T/h Color: Gray,as You Need
Material: Carbon Steel,Manganese Steel,Q235,steel Plate Punching Or As Required Power(w): 3-30KW
Usage: Separation Screening,Gold Processing Plant,Mining Separatoion,waste Separating Machine Product Name: Trommel Screen,good Quality Rotary Compost Trommel Screen,Rotary Skid Mounted Trommel Drum Screen,Small Scale Portable Trommel Screen Gold Washing Plant,MSW Municipal Solid Waste Trommel Screen And Gold Trommel Screen
Keywords: Gold Trommel,drum Screen,gold Ore Processing,Waste Trommel Screen And Gold Trommel Screen,Small Washing Plant Installation: Engineer Guide,and/or Dispatch Engineer,CAD Drawing,Send Video

Portable Gold Trommel Machine Gold Separating Equipment From China Manufacturer 0

Portable Gold Trommel Machine Gold Separating Equipment From China Manufacturer

Product Description

China Mobile Gold Dust Separator machine is the equipment for elutriating gold from sand mines. Due to the large proportion of gold, generally, the gold is recovered by gravity separation, that is, using water flow as a medium, and washing the sand mines with high pressure water. The minerals with large specific gravity settle and the minerals with small specific gravity flow away, so that gold can be recovered.

The process of gold wash machine is designed according to the situation of the ore body. The main classifications are as follows:

1. Chute sand gold equipment: It is to place gold felt in the chute. After the mineral materials are washed, they are screened, and then the gold is recovered using gold carpet

2. Agitating chute sand gold equipment: The process is better than the chute sand gold equipment. By swirling up and down, the water flow forms a vortex, leaving the light sand and mud gold in the agitating chute.

3. Nelson centrifugal concentrator: It is the currently used sand gold equipment. By supporting the Nielsen beneficiation machine, it can recover both fine-grained gold and large-grained gold. The comprehensive recovery rate is 90%.

China Mobile Gold Dust Separator machine introduction:
The gold wash machine produced by our factory is a kind of mobile gold selection equipment that can be moved on land. It has the characteristics of compact structure, light weight, large processing capacity, simple operation, easy maintenance, and convenient movement. It adopts tire-type movement, and the leveling mechanism is hydraulic leveling and mechanical leveling, which can be configured according to user requirements. This machine contains loading, screening, and chute gold selection as a whole, easy to use and easy to operate, suitable for small gold rush customers who have just entered the gold rush industry test stage, and can be equipped with different types of gold drenched grass according to the different gold particles.

This equipment is mainly used for dry land beaches and rivers. It is a gravity beneficiation equipment and is mainly used for the recovery of individual gold in sand gold mines and vein mines. It can be dragged by excavator, forklift or car.

Gold wash machine integrates the principles and characteristics of the separation of fixed chute and jig, overcomes the phenomenon of fixed chute and adopts dual-channel recovery to collect fine gold with coarse gold and sheet gold, and improves the gold ore dressing recovery rate.
China Mobile Gold Dust Separator Machine Working Principle:
The excavator feeds into the silo, and the high-pressure water in the silo is used to flush the ore to the drum sieve. The heavy sand with high gold content is processed by shaking table.

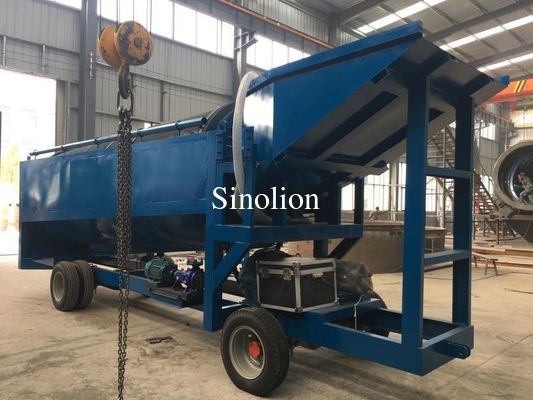

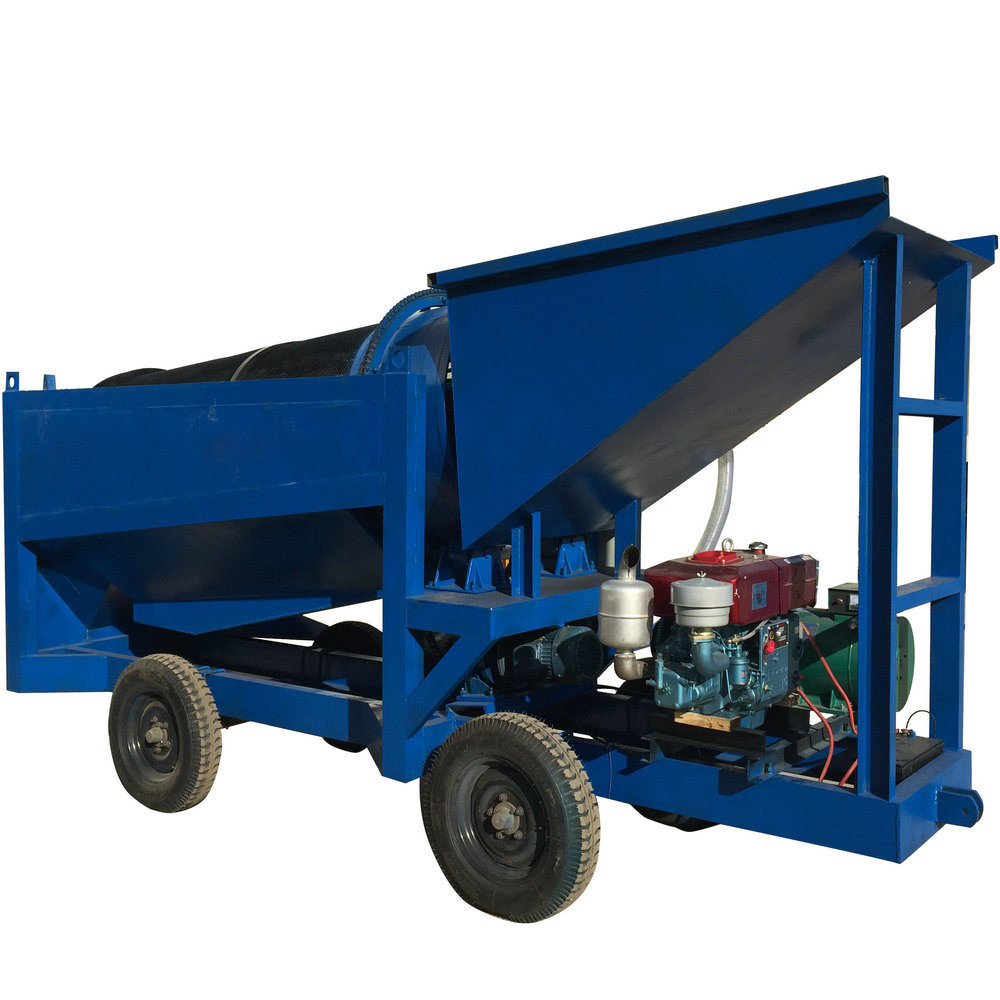

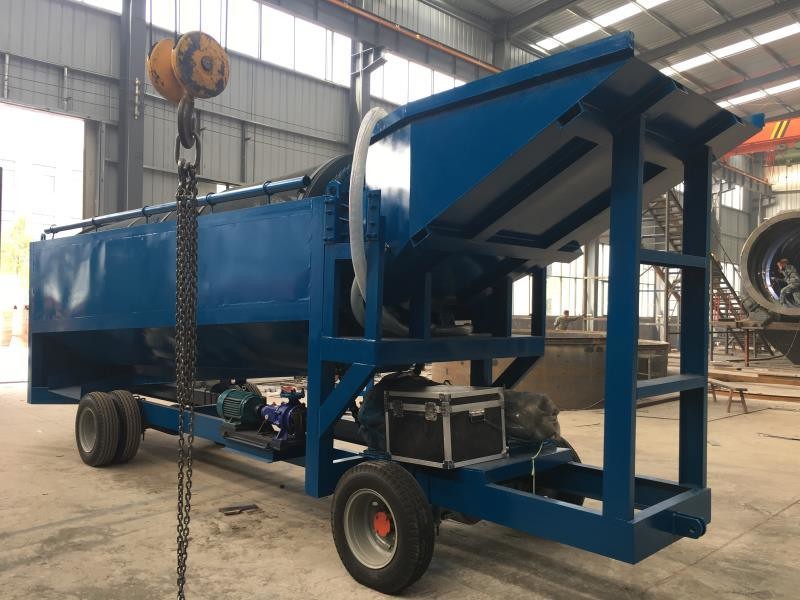

Detailed Photos
Portable Gold Trommel Machine Gold Separating Equipment From China Manufacturer 1



Product Parameters

Gold washing machine technical parameters:

Model Capacity Power Screen diamater Screen Length Discharge size Input Size

Dimension

(L×W×H)

(t/h) (kw) (mm) (mm) (mm) (mm) (mm)
YGTS1020 10-30 4 1000 2000 0-100 ≤300 3390x1400x2140
YGTS1225 30-50 5.5 1200 2500 0-100 ≤300 4146x1600x2680
YGTS1545 50-120 11 1500 4500 0-100 ≤400 8160×2300×2500
YGTS1548 80-150 15 1500 4800 0-100 ≤400 8160×2300×2500
YGTS1848 100-200 15 1800 4800 0-100 ≤400 8460×2300×2700
YGTS2060 200-350 30 2000 6000 0-100 ≤400 9680×2300x3420
Packaging & Shipping

Packing Details : All products will be processed to be rustproof and moisture proof before delivery.

20GP container or 40GP container
Equipment is packed with plastic wrap or steel case, depends on machine weight.
Motro is packed with steel case or wooden case. Control panel is packed with steel case.
Loading container in factory.

Delivery Details : 15-25 days after confirming order,detail delivery date should be decided according to production season and order quantity.



Company Profile

Zhengzhou Berno Machinery Co., Ltd. is located in Zhengzhou, China, is a high-tech company which professional manufacturing the production of screen equipment, shredder for waste disposal, hydraulic baler and various conveyors.

After 30 years of development, Berno is now setting up branches, integrating engineering, trade, research and development, production and sale to develop to be a large sized enterprise. Berno Machinery has been awarded as the pioneer in the field of solid waste in China.
Our company persists in the philosophy of ''quality for survival, reputation and development'', and Berno strives to build a world well known brand to satisfy customers in order to let them rest assured with comfort.

Portable Gold Trommel Machine Gold Separating Equipment From China Manufacturer 2

Berno has modern standard workshops, as well as advanced technology and testing equipment. Extensively cooperating with environmental engineering research institutions and other research departments, Berno has continuously improved product values and performance. Now, there are 80 emplees in Berno, among which over 30 are holders of Bachelor's Degree and above, and nearly 70% of senior and experienced engineers of reserchers specilizing in wlectrical engineering, mechanical engineering, hydraulics, logistics and so on.

Berno provides space planning and design, equipment installation and commissioning support. Our company persists in the philosophy of ''quality for survival, reputation and development'', and Berno strives to build a world well known brand to satisfy customers in order to let them rest assured with comfort. Berno Company is willing to take full use of the new technology, dedicated to providing superior products with reliable quality, favorable prices and perfect service for users who need us to design, manufacture and install trommel sorting production lines.

Our company not only has superb technical staff and experienced after-sales service team,but also keeps in step with the times. Bring internet technology into all aspects of production and operation, goes in for internet marketing actively, offers latest product information and technical service.




After Sales Service
  1. We can send special after-sales staff to instruct site installation.
  2. We can assistance machine debugging and running test.
  3. We can training operation workers on site.
  4. After complete sets of equipments installation,leave one technical worker to assist customer(free charge) on-site production for half a month until satisfactory training operation workers on site.
FAQ

Question 1: How to choose the suitable one?
A:Please tell us your detailed requirements by mail or online,we will recommend the suitable one
as your request, or customization as your request.

Question 2: Why the price is just a range?
A:Because different model and qantity,the price is different,competitive price will be according to
your model and quantity.

Question 3: How can I pay?
A:We accept many payment,such as L/C, T/T, Western Union, Paypal, Moneygram.......

Question 4: When I receive it after pay?
A:The normal models can be sent out within 7-10 days, it's according to your model and quantity,
please contact us to check shipping time to your address.

Question 5: Is it will be broken during transport?
A:Please don't worry,our goods with standard export package.

Question 6: What should I do if I don't know how to use?
A:Please don't worry,manual user will be sent together,you can also contact us for technical support

Question 7: What should I do if some parts broken?
A:Please don't worry,we have 12 months warranty except wear parts.
You can also buy from us after 12 months.
