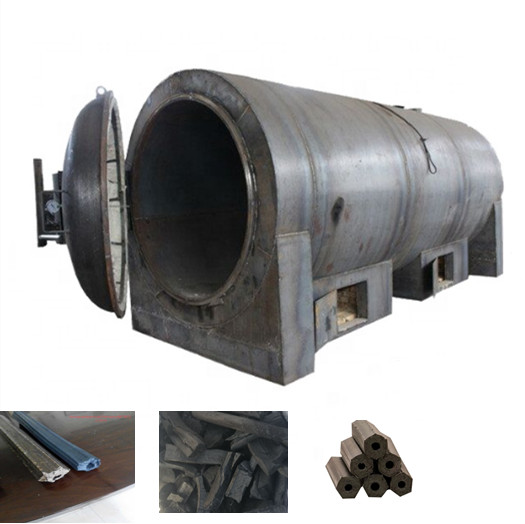

Forest waste hardwood log carbonization furnace mechanism charcoal stove

Forest waste hardwood log carbonization furnace mechanism charcoal stove

Forest waste hardwood log carbonization furnace mechanism charcoal stove
Forest waste hardwood log carbonization furnace mechanism charcoal stove Forest waste hardwood log carbonization furnace mechanism charcoal stove Forest waste hardwood log carbonization furnace mechanism charcoal stove Forest waste hardwood log carbonization furnace mechanism charcoal stove

Large Image :  Forest waste hardwood log carbonization furnace mechanism charcoal stove Get Best Price

Product Details:
Place of Origin: Henan, China
Brand Name: Sinolion
Certification: SGS
Model Number: 0.8m*1.5m 1m*1.5m 1.5m*1.5m 1.5m*2m 1.5m*3m 1.5m*4.5m 1.9m*4.5m 1.9m*6m
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 1500-9000$/set
Packaging Details: wooden case, container
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10 sets per month
Detailed Product Description
Weight: 3500kg Warranty: 1 Year
Voltage: 380V Power(w): 1.5kw,0.75kw,1.5 KW,3kw,1000w
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Field Maintenance And Repair Service,Video Technical Support
Effective Volume: 3.5-10CBM Certification: CE,SGS
Capacity: According To Different Types Carbonization Furnace Color: Customer Required
Application: Cooking, Charcoal Briquettes Name: Wood Log Smokeless Charcoal Stove,smokeless Activated Carbon Furnace,charcoal Making Machine/carbonizing Kiln Stove,Black Wood Charcoal Making Furnace,carbonization Furnace
Type: Airflow Type Or Spontaneous Type Raw Material: Rice Husk,sawdust,Biomass Material,Biomass Wastes,bits Of Wood
Fuel: Charcoal Wood,Firewood/wood Wastes Cooling Time: 12-24hours,10-16h
Advantage: Energy Saving,Continuous Working Environment Friendly,high Effective,non-toxic Odor-free,Smokeless Carbonization Time: According To Different Material And Carbonization Furnace

Forest waste hardwood log carbonization furnace mechanism charcoal stove



Brief introduction of horizontal continuous carbonizing furnace



Horizontal Continuous Carbonizing Furnace can complete the carbonization of raw materials from drying to carbonization at one time. It is mainly used for peanut hull, sawdust, corn stalk, bagasse, tree branches, rice hull, bamboo chips, sorghum stalk, sunflower seed hull, distiller's grains, corn cob, sorghum stalk, coconut shell, apricot shell, peanut hull, coffee residue, cotton stalk, bean stalk, yam straw, dead leaves, Chinese medicine residue, sludge and daily life. Waste and other biomass-based materials are carbonized.

Forest waste hardwood log carbonization furnace mechanism charcoal stove 0

Advantages of Horizontal Continuous Carbonizing Furnace
1. The main engine has large volume, high carbonization rate and strong production capacity. It can carbonize 0.5-2 tons per hour.
2. Low cost, low cost and high practicability meet the investment requirements of early entrepreneurs.
All internal parts of horizontal continuous carbonization furnace are made of special high temperature resistant precious metal steel, which is strong, durable, non-deformable, non-oxidizing, good heat preservation performance, simple operation, safe and reliable.

Forest waste hardwood log carbonization furnace mechanism charcoal stove 1



The working principle of Horizontal continuous carbonization furnace

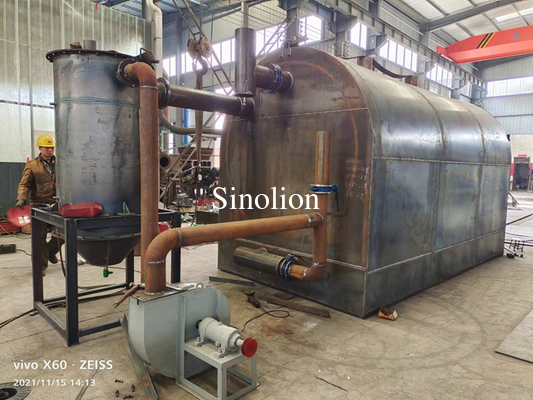

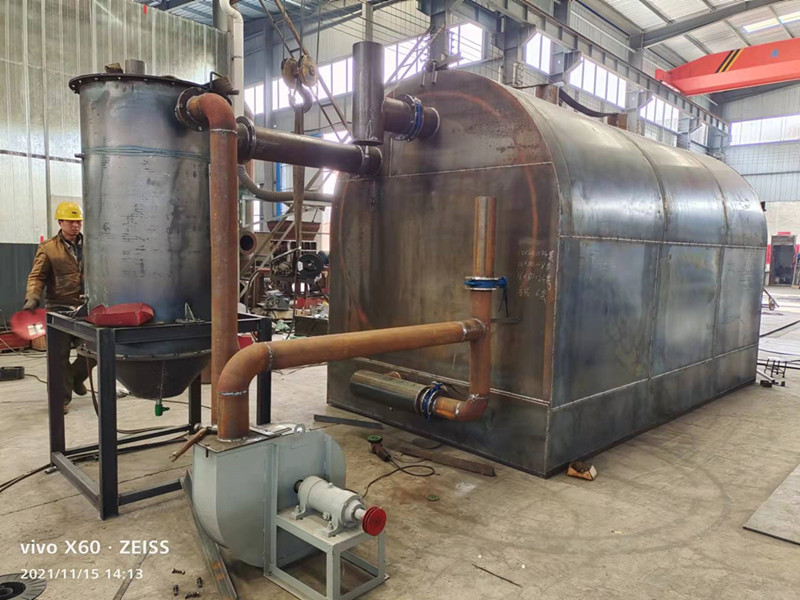

The whole charcoal carbonization furnace including: gas cleaner, fan, gas burners, furnace and other equipments .
The charcoal carbonization furnace adopt dry distillation processing, fully utilization the carbon monoxide, methane, hydrogen and other combustible gases produced at carbonizating process, through gas cleaner system to separate wood tar, wood acid to collect gas, then as fuel to burn for furnace(temperature control around 600 ℃). There are four layers pipelines in the furnace, first and second layer pipeline for preheating and drying , the third layer pipeline for low-temperature carbonizating , the fourth layer pipeline for high-temperature carbonizating . There are pipes for dicharging exhaust steam at first and second layers. Third and fourth layer with gas recovery pipes for heating furnace to carbonization.

Forest waste hardwood log carbonization furnace mechanism charcoal stove 2

Technical parameters of carbonization furnace

Model overall size inner pot volume(m3) capacity equipment weight
0.8*1.5m 1.1*1.7*1.3m 0.8*1.5m 0.76 100kg 0.4t
1*1.5m 1.3*1.7*1.5m 1*1.5m 1.2 150kg 0.6t
1.5*1.5m 1.8*1.7*2m 1.5*1.5m 2.65 300-350kg 0.9t
1.5*2m 1.8*2.2*2m 1.5*2m 3.55 400-450kg 1.2t
1.5*3m 1.8*3.2*2.m 1.5*3m 5.3 600-650kg 1.8t
1.5*4.5m 1.8*4.7*2m 1.5*4.5m 8 900-950kg 2.7t
1.9*4.5m 2.2*4.7*2.5m 1.9*4.5m 12.8 1000-1500kg 3.5t
1.9*6m 2.2*6.2*2.5m 1.9*6m 17 1500-2000kg 5t


Forest waste hardwood log carbonization furnace mechanism charcoal stove 3
