Design Cleaning Brush Trommel Screen for Big Capacity Sorting Voltage 220V/280V/415V

Design Cleaning Brush Trommel Screen for Big Capacity Sorting Voltage 220V/280V/415V

Design Cleaning Brush Trommel Screen for Big Capacity Sorting Voltage 220V/280V/415V
Design Cleaning Brush Trommel Screen for Big Capacity Sorting Voltage 220V/280V/415V Design Cleaning Brush Trommel Screen for Big Capacity Sorting Voltage 220V/280V/415V Design Cleaning Brush Trommel Screen for Big Capacity Sorting Voltage 220V/280V/415V Design Cleaning Brush Trommel Screen for Big Capacity Sorting Voltage 220V/280V/415V Design Cleaning Brush Trommel Screen for Big Capacity Sorting Voltage 220V/280V/415V Design Cleaning Brush Trommel Screen for Big Capacity Sorting Voltage 220V/280V/415V

Large Image :  Design Cleaning Brush Trommel Screen for Big Capacity Sorting Voltage 220V/280V/415V Get Best Price

Product Details:
Place of Origin: Henan, China
Brand Name: Sinolion
Payment & Shipping Terms:
Price: $10,700.00/sets 1-1 sets
Packaging Details: Standard wooden case packing or long distance marine container shipping
Supply Ability: 100 Set/Sets per Month
Detailed Product Description
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Energy & Mining, Other Showroom Location: Philippines, Morocco, Australia, New Zealand
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: New Product 2022 Warranty Of Core Components: 1 Year
Core Components: Engine, Bearing, Gearbox, Motor, Gear Condition: New
Type: Circular Application: Material Sorting
Voltage: 220V/280V/415V Dimension(L*W*H): 4300*1900*2450MM
Weight: 2920 KG Warranty: 1 Year
Product Name: Mobile Trommel Screen Material: Carbon Steel
Usage: Material Sorting Function: Screening\separation\sorting\sieving
Advantage: High Efficiency Cleaning System: Cleaning Brush
Mesh Size: 2-80MM Color: Green
Installation: Easy Installation Customized: Acceptable
Port: Qingdao/Shanghai/Tianjin/Guangzhou/Dalian

Design Cleaning Brush Trommel Screen for Big Capacity Sorting Voltage 220V/280V/415V 0
Products Description
Design Cleaning Brush Trommel Screen for Big Capacity Sorting Voltage 220V/280V/415V 1


About Trommel Screen

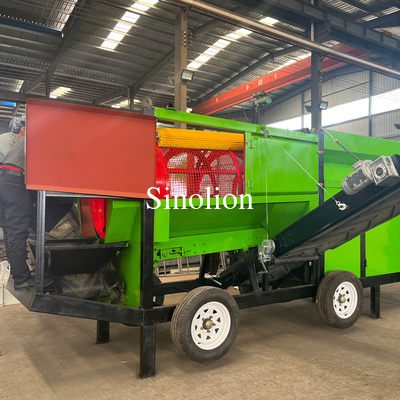

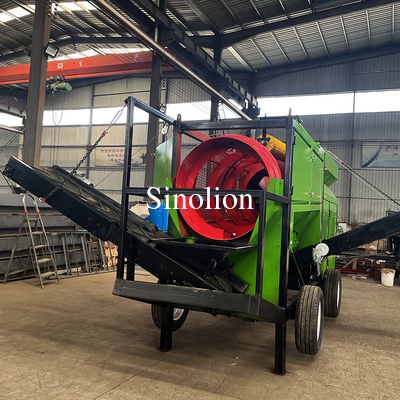

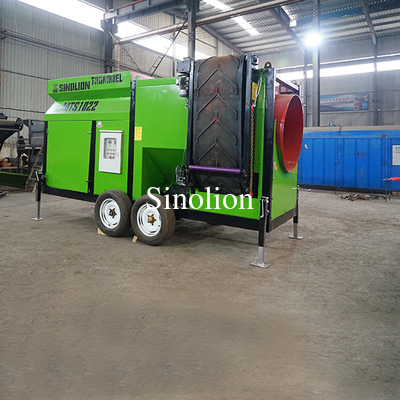

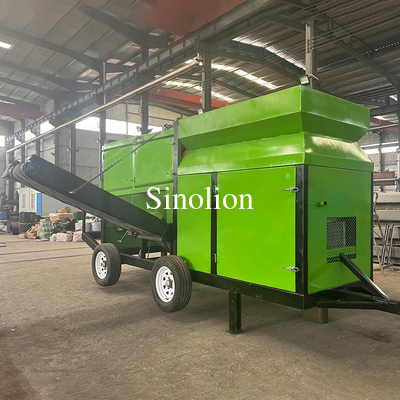

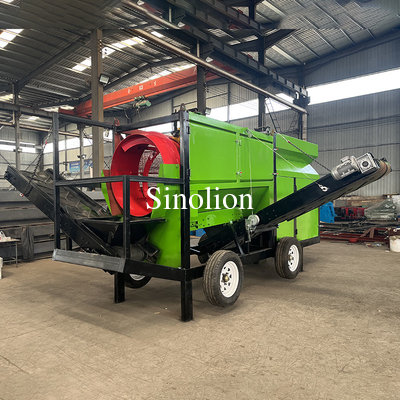

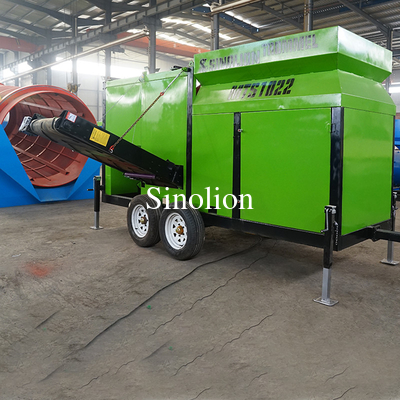

The MTS1022 Trommel is a self-contained, standard electric-powered, portable screening plant designed to separate topsoil, compost, wood chips and green waste products. It features a direct open feed hopper with a large 1*2.2 m rotating drum that creates 50.7 square feet (4.1 Sq) of screening area. The pile heights created by the side discharge conveyor and oversize conveyor will give the operator hours of uninterrupted processing time. It is the ultimate high-volume processing plant designed by professional engineers for virtually any feed material.
Design Cleaning Brush Trommel Screen for Big Capacity Sorting Voltage 220V/280V/415V 2

Model
Trommel diameter
(MM)
Trommel length
(MM)
Capacity
(M3/H)
Motor power
(KW)
Weight
(KG)
Dimensions
(L*W*H)(M)
(mm)
(mm)
(m3/h)
(Kg)
(L*W*H)
MTS1022
1000
2200
≤30
8.2
2750
4.3*1.9*2.45
Application
Design Cleaning Brush Trommel Screen for Big Capacity Sorting Voltage 220V/280V/415V 3
Discus Your Materials
About Our Design
Design Cleaning Brush Trommel Screen for Big Capacity Sorting Voltage 220V/280V/415V 4
Discuss your design ideas
PACKING & DELIVERY
Design Cleaning Brush Trommel Screen for Big Capacity Sorting Voltage 220V/280V/415V 5
OUR SERVICE
Design Cleaning Brush Trommel Screen for Big Capacity Sorting Voltage 220V/280V/415V 6
COMPANY INTRODUCTION
Design Cleaning Brush Trommel Screen for Big Capacity Sorting Voltage 220V/280V/415V 7
Zhengzhou Sinolion Equipment Co.. Ltd., a Chinese high-tech company, which is professional in manufacturing trommel sieving equipment, also one of the earliest Chinese enterprises to enter this field. After 30 years of development, Sinolion has been now setting up branches,integrating engineering,trade research and development, production and sales, developed to be a large-scale enterprise. Sinolion has modern standard workshops,as well as advanced technology and testing equipment. Now, sieving equipment are renowned in domestic and foreign markets,and Sinolion products have been exported to Serbia, United Kingdom, Turkey, Malaysia, Indonesia, Kazakhstan, Vietnam, Egypt, Mexico, Ghana, Tanzania, Nigeria, South Africa, Chile, Bolivia, Canada and other countries. Sinolion provides space planning and design,equipment installation and commissioning support under holding the concept of "To survive with quality and develop with credit". Sinolion strives to build a brand enterprise with satisfaction of customers. Let customers buy reassured and use comfortably! Widely cooperate with relevant institutions to continuously improve product value and performance.For users who ask us to design, manufacture and install products, will provide satisfactory products with the latest technology, reliable quality, favorable price and perfect service. We warmly welcome cooperations with friends from all around the world!
Design Cleaning Brush Trommel Screen for Big Capacity Sorting Voltage 220V/280V/415V 8
Design Cleaning Brush Trommel Screen for Big Capacity Sorting Voltage 220V/280V/415V 9
Design Cleaning Brush Trommel Screen for Big Capacity Sorting Voltage 220V/280V/415V 10
FAQ
Q:What materials can the equipment screen?
A:Our mobile trommel screen can screen compost, topsoil,sand, gravel, cow and sheep manure etc.It can be used in many scenarios.

Q:How is the equipment transported?
MTS0818 uses wooden box packaging for transportation.Before shipment,it is package in wooden boxes and moisture-proof and rustproof treatmentis performed to prevent rustand corrosion of the equipment during transportation.MTS1022 and MTS1230 require a 20GP container for transportation,A 40HQ can hold 2 set MTS1230s and a 40HQ container can hold 3 set MTS1022s. MTS1550 requires one 40HQ container for transportation.

Q:What kind of power can the equipment provide?
A;Currently, our equipment supports motor type,diesel engine type and diesel generator set type. Three types are optional to meet your various needs.

Q:What are the biggest highlights of the equipment?
First, our side conveyor belt uses a herringbone belt which can prevent materials from slipping during conveying materials. The conveyor belt thickness is 11mm for better quality. Secondly,the cleaning brushes use nylon material which is very wear-resistant.According to different models.the brush diameter is between 200-350mm.At the same time, the cleaning brushes can prevent sticky materials from blocking the sieve holes.

Q: Can you give me a solution and quotation? A: Absolutely sure, we can provide accurate solution and quotation, please give us background information, including. raw material, the capacity, max. input size, the output size, the usage of final products, etc.

Q: After order equipment how do we slove the equipment installing?
A:For a small single equipment, we offer you user manual, customer wll install and commissioning as operating introduction; For a complete production line, we will send our engineer to your workplace to help you install and commissioning until machines work normally. Sinolion has several experienced technicians with passports ready to go for installation, when installation service is needed, the client should pay for technicians' round way air tickets, salary(shall be confirmed before leaving), food and lodging, most importantly to guarantee the technicians' safety.

Q:What's the delivery time after I pay the deposit?
A:We will clear delivery time in slaes contract, Single movable drum sieve often deliveried within 10-15 working days after receipt of the pre-payment. Complete production line will delivery within 25-40 working days after receipt of the pre-payment.

Q:How long of your machine quality guarantee terms ?
A:Quality guarantee time is one year(wearing parts excluded).
