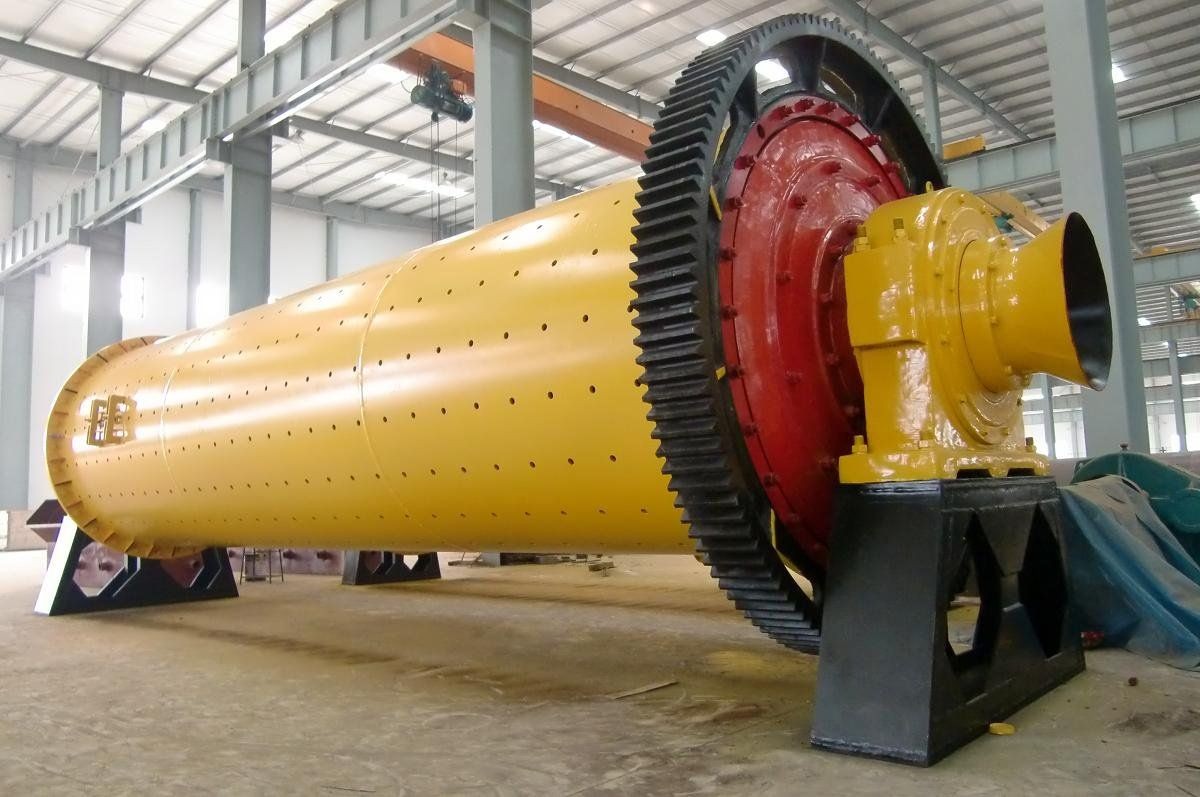

Chalcopyrite ball milling machine

Chalcopyrite ball milling machine

Chalcopyrite ball milling machine
Chalcopyrite ball milling machine Chalcopyrite ball milling machine

Large Image :  Chalcopyrite ball milling machine Get Best Price

Product Details:
Place of Origin: Henan Province, China
Brand Name: Sinolion
Certification: ISO, CE
Model Number: 900*1800
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 5000USD-10000USD
Packaging Details: standard container
Delivery Time: 10 days
Payment Terms: T/T, L/C
Supply Ability: 15sets per month
Detailed Product Description


Ball mill
1. low consumption
2. high capacity per hour
3. no pollution
4. easy to maintain
Description of Chalcopyrite ball milling machine

Ball mill is mainly used for grinding materials in such production industries as cement, silicate product, new building materials, corhart, chemical engineering, nonferrous and black metal, mineral processing, glass and ceramic, etc. It is used for grinding various ore and other grindable materials dry or wet.
Structural Feature of Ball Mill:
Ball mill is a principle and cylindrical revolving device, and belongs to external gear-driving ball mill. The materials are transported by feeder, and gets into mill chamber through hollow screw axis equably, and there is lining plate and steel balls in the chamber. When the cylinder body goes round and round, the steel ball is taken to certain height, then falls down, and the materials are struck and grinded heavily. The above action repeats constantly till the size of materials reaches the required fineness. The powdery materials are discharged through discharge grate plate, and the milling work is over.
Ball mill mainly consists of feeding part, discharging part, gyre part, transmission part (decelerated machine, small transmission gear, motor, electric control) and so on. The hollow axis adopts cast steel, the lining plate can be replaced, the big gyre gear is made of forging rolling gear, and there is lining plate in the cylinder body, which has favorable abrasion resistance. The ball mill has the features of stable running and reliable working.

Ball Mill Specification and Technical Data:


Model

Speed of bucket(r/min)

Weight of ball(t)

Size of feed opening(mm)

size of outputting feed(mm)

Production(t/h)

Power(Kw)

Weight(t)

900*1800

38

1.5

20

0.075-0.89

0.65-2

18.5

3.6

900*3000

38

2.7

20

0.075-0.89

1.1-3.5

22

4.6

1200*2400

32

3.8

25

0.075-0.6

1.5-4.8

45

12.5

1200*3000

32

5

25

0.075-0.4

1.6-5

45

12.8

1200*4500

32

7

25

0.075-0.4

1.6-5.8

55

13.8

1500*3000

27

8

25

0.075-0.4

2-5

90

17

1500*4500

27

14

25

0.075-0.4

3-6

110

21

1500*5700

27

15

25

0.075-0.4

3.5-6

132

24.7

1830*3000

24

11

25

0.075-0.4

4-10

180

28

1830*6400

24

23

25

0.075-0.4

6.5-15

210

34

1830*7000

24

25

25

0.075-0.4

7.5-17

245

36

2200*5500

21

30

25

0.075-0.4

10-22

370

48.5

2200*6500

21

30

25

0.075-0.4

14-26

280

52.8

2200*7500

21

33

25

0.075-0.4

16-29

475

56

2200*9500

21

38

25

0.074-0.4

18-35

475

62
