Direct manufacturer wood pallet crusher machine

I'm Online Chat Now

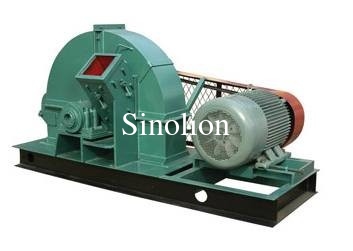

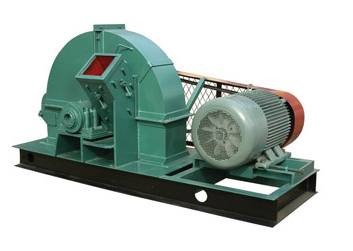

Direct manufacturer wood pallet crusher machine

China Direct manufacturer wood pallet crusher machine supplier
Direct manufacturer wood pallet crusher machine supplier Direct manufacturer wood pallet crusher machine supplier

Large Image :  Direct manufacturer wood pallet crusher machine

Product Details:

Place of Origin: Henan Province, China
Brand Name: Yonghua
Certification: ISO, CE
Model Number: 800

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: US $4,000 - 6,000 / Set for FOB
Packaging Details: plywood case
Delivery Time: within 7days after getting prepayment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 20 set per month
Warranty: 1 year
Port: Main port in China
Contact Now
Detailed Product Description
Codition: New Motor Power: 30kw
Weight: 1200kgs Capacity: 2-3t/h
Cutter Head Diameter: 800mm

Specifications

wood pallet crusher:
1.easy maintaince
2.saves energy & low operation cost
3.reliable and safe lubrication system
4 CE,ISO

Performance wood   pallet crusher  machine have stock from Chinese machinery manufacturer



Brief introduction of wood pallet crusher :

Wood  pallet crusher  can cut log and other wooden materials into less than 200mm diameter pieces. And it is applicable to paper pulp factory, forest tree factory, paper mill, thermal power plant, etc.  Wood  pallet crusher is mainly composed of four parts such as principal machine etc, in which the principal machine of chipping machine is composed of cutter head, upper and lower covers, feed inlet and outlet, etc

Wood pallet crusher working principle:

Wood  pallet crusher  is the special equipment for producing wood chips. The timber is sent into the feeding port, as long as the wood touch the peel and cut blade, the wood begin to be peeled and cut at the high speed rotating with the cutter head, and then the wooden pieces in the cutting room are sent out with the faster-moving air produced by the blade movement.The whole chipping process is finished.

Structure of wood pallet crusher :

  Wood  pallet crusher   is mainly made up of coupling bottom frame and motor,feeding port, the cutter head, peel and cut blade and electronic control.  Wood pallet crusher can adjust the peel and cut blade according to need in order to produce the different specifications and thickness of wood.



Features & Benefits of   wood pallet crusher :

1. Wood  pallet crusher   has reasonable design and stable structure

2.  . Wood  pallet crusher has highly eco-friendly and saves energy

3. The wood chipper machine has low operation cost

4. Reliable and safe lubrication system.



Application of the   wood pallet crusher

  Wood  pallet crusher  is used to cut the wood log and branches into chips, that is used for material of man-made wood board

  Wood  pallet crusher is suitable branch and many kinds of waste wood, all can be cut into chip, which size is about 30mm

Main technical parameter of wood pallet  crusher :

Type

800

950

1100

1210

1410

Cutter head diameter (mm)

800

950

1100

1210

1410

Revolving speed of cutter head(r/m)

960

960

960

960

960

Number of the blade(piece)

4

4

4

4

4

Feeding way

slope

slope

slope

slope

slope

Discharge method

upwards

upwards

upwards

upwards

upwards

power equipment (kw)

30

37

45

75

90

Capacity( t/h)

3-6

6-8

8-10

10-13

13-16

Max. cutting diameter(cm)

20

25

30

35

40

Direct manufacturer wood pallet crusher machine
