High efficiency New Type Energy Saving Industrial Drying Equipment Rotary Drum Dryer

Certification
Good quality Honeycomb briquette machine for sales
Good quality Honeycomb briquette machine for sales
I'm Online Chat Now

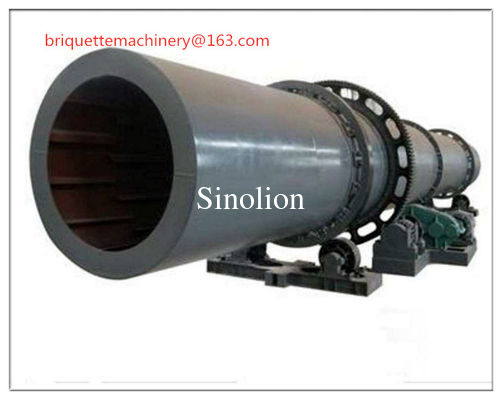

High efficiency New Type Energy Saving Industrial Drying Equipment Rotary Drum Dryer

China High efficiency New Type Energy Saving Industrial Drying Equipment Rotary Drum Dryer supplier
High efficiency New Type Energy Saving Industrial Drying Equipment Rotary Drum Dryer supplier High efficiency New Type Energy Saving Industrial Drying Equipment Rotary Drum Dryer supplier High efficiency New Type Energy Saving Industrial Drying Equipment Rotary Drum Dryer supplier

Large Image :  High efficiency New Type Energy Saving Industrial Drying Equipment Rotary Drum Dryer

Product Details:

Place of Origin: Henan Province, China
Brand Name: Yonghua
Certification: ISO
Model Number: 1.0*10m

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 3000-12000
Packaging Details: standard container
Delivery Time: 20 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Type: Dry Heat Sterilization Equipments,Gas Sterilization Equipments Instrument Classification: Class I,Class II
Name: Steam Sterilizer Equipment Material: SUS304 Stainless Steel,304 Stainless Steel,304/316L Stainless Steel Optional
Color: Red White Silver Voltage: 110v Or 220v/380v,220V/50HZ,110-120V/220-240V
Power(w): Based Condition: New
Weight: 2.9-104.9t Warranty: 1 Year

High efficiency New Type Energy Saving Industrial Drying Equipment Rotary Drum Dryer



Descriptions

Drum drying equipment is a kind of rotating continuous drying equipment with internal heating conducting-style. Certain thickness of materials film attach to the drum from material liquid vessel under the drum. Heat is transferred to the internal wall of the cylinder through pipes and then to the external wall and to materials film, to evaporate the moisture in materials film so as to dry materials. Dried products are then scraped off by the blade fitted on the surface of the cylinder, fall down to the spiral conveyor under the blade, and are conveyed, collected and packed.

High efficiency New Type Energy Saving Industrial Drying Equipment Rotary Drum Dryer

Features

1. High heat efficiency. The principle of heat transfer of the cylinder dryer is heat conduction and the conducting direction keeps identical in the whole operation circle. Except heat loss of end cover and radiation loss, all heat can be used for evaporation of wet materials on the wall the cylinder. The efficiency can reach 70-80%.

2. Large operation elasticity and wide application. Various drying factors of the dryer can be adjusted, such as concentration of feeding liquid/thickness of material film, temperature of heating medium, rotating speed of the drum etc. which can change drying speed of the under dryer. As these factors have no interrelations each other, it brings great convenience to dry operation and makes it applicable to dry various materials and to meet different requirements of production.

3. Short drying period. The drying period of materials is normally 10 to 300 seconds, so it is suitable for heat-sensitive materials. It also can be pressure reducing operated if it is put in vacuum vessel.

Main parameters

High efficiency New Type Energy Saving Industrial Drying Equipment Rotary Drum Dryer

Show details

High efficiency New Type Energy Saving Industrial Drying Equipment Rotary Drum Dryer

Inner Structure
This part mainly about chain, lifting board, removable racket. These accessories can prevent sticky materials from sticking to the drum barrel so that the rotary dryer can dry the material effectively.
High efficiency New Type Energy Saving Industrial Drying Equipment Rotary Drum Dryer

Wheel gear
It is the important accessory of the transmission part. It’s connected to the motor and reducer to drive the rotation of the rotary dryer.
High efficiency New Type Energy Saving Industrial Drying Equipment Rotary Drum Dryer
Roll Ring & Carrier Roller
It is an indispensable part of the rotary dryer. They support the drum barrel and help the dryer runs smoothly.



High efficiency New Type Energy Saving Industrial Drying Equipment Rotary Drum Dryer

Dust Remover
It is the important part of the drying system. It can purify the dust of exhausted humidity air to protect the environment.
High efficiency New Type Energy Saving Industrial Drying Equipment Rotary Drum Dryer
Transmission Part
This part mainly consists of motor and reduction gears and pinion. The pinion is used to connect with the big gear to drive the rotary drye

Flow chart



High efficiency New Type Energy Saving Industrial Drying Equipment Rotary Drum Dryer

FAQ

1. I want to purchase a rotary dryer?

Hello, We are glad to receive your inquiry. In order to supply a proper proposal of drying line for you, please confirm the following info: 1. What is your raw material for drying? 2. How much inlet moisture in your material before drying? 3. How much outlet moisture do you want to keep after drying? 4. How larger capacity per hour do you want?______TPH 5. Which kind of heating source do you want to use for drying raw material? Natural gas? Coal block? Available hot air or others.

2. We want to purchase a sawdust/wood chips rotary drum dryer, can you tell us the price?

Dear Sirs, thanks for your inquiry about the sawdust/wood chips rotary drum dryer. There are many models of rotary drum dryer, different model is with different price. Firstly, we should choose a proper model of dryer based on the moisture range during drying. Secondly, the sawdust, wood chips belong to biomass type material, the density is light, around 400kg/m3; So that when dry biomass type materials, required larger drying space than common type material. We will make a detail proposal with price of rotary dryer based on your actual demand.

3. Which kind of heating source can we use for this rotary dryer?

Dear Sirs, thanks for your professional inquiry of rotary dryer. You can use natural gas, coal block, diesel, heavy oil, wood log, biomass, electricity etc. Different heating source required different burner, along with combustion chamber. We can design a proper proposal based on your choice of heating source.



If you want to learn more, please contact us when you are free as follows?
