|Condition:||New||Warranty:||1 Year,one Year,2years Warranty Without The Spare Parts|
|Type:||Briquette Machines,Custom Design||Motor Type:||AC Motor,DC Motor,Other|
|After-sales Service Provided:||Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Field Maintenance And Repair Service,Field Installation||Production Capacity:||1100-2000kg/h|
|Raw Material:||Charcoal Powder,sawdust,Coal.charcoal Powder,coal Dust,etc||Color:||Client's Required,Customer's Request|
|Briquette Shape:||Round,Round Square Hexagon Pillow||Voltage:||380v,220V/380V/415V/460V|
|Loading Port:||Qingdao, Tianjin, Shanghai, Guangzhou, Yiwu, Etc|

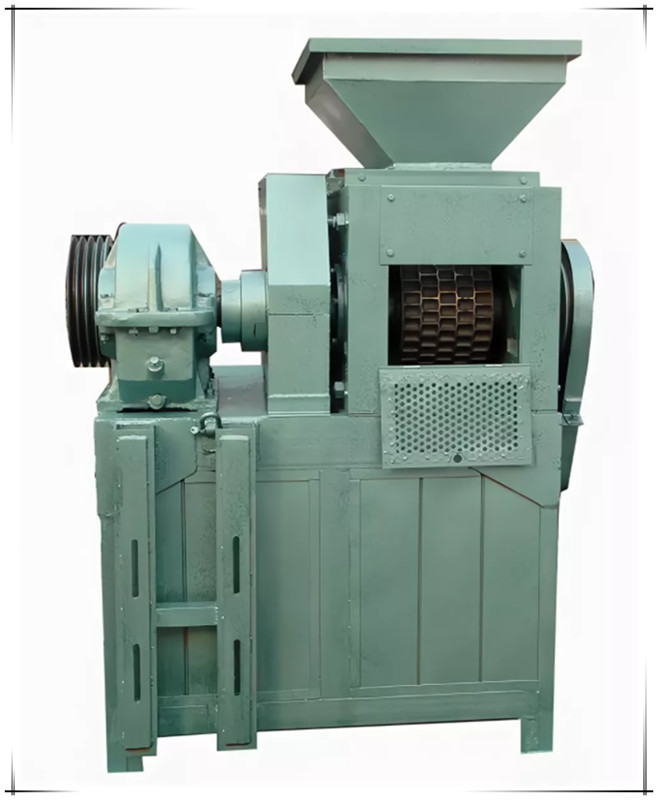

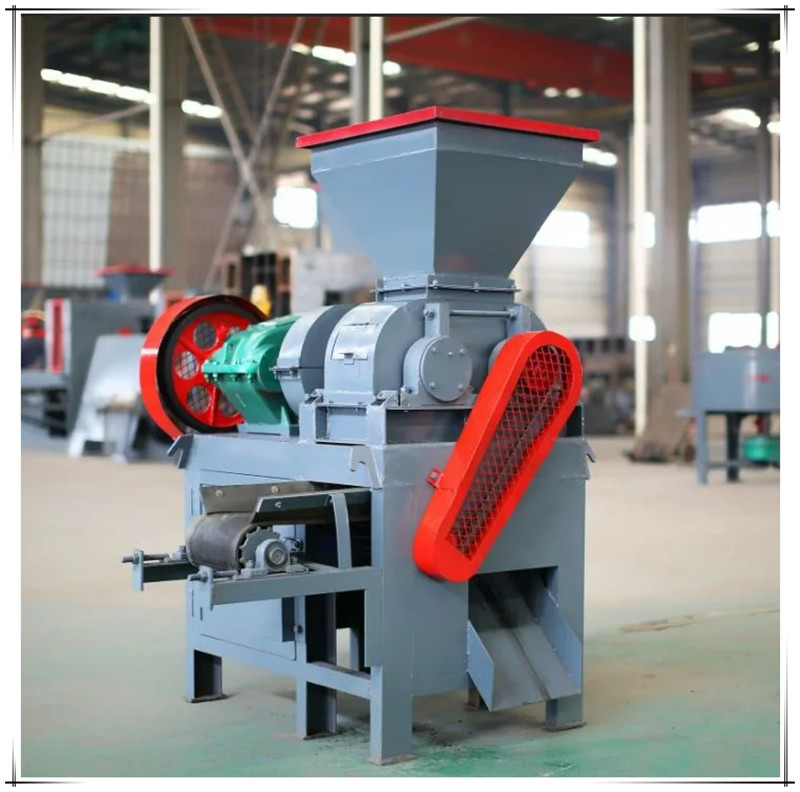

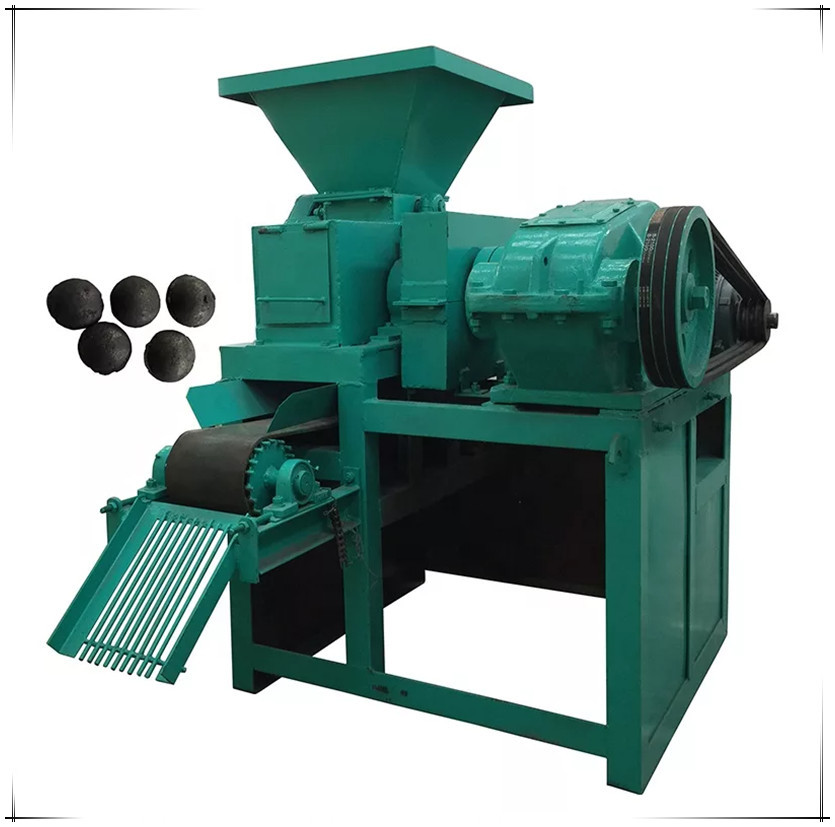

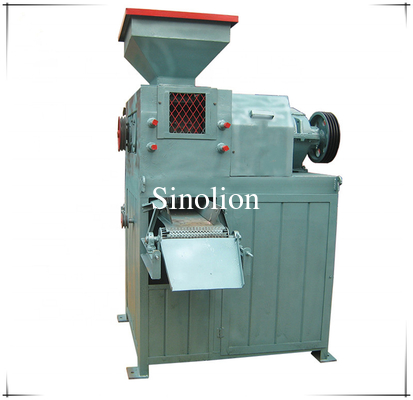

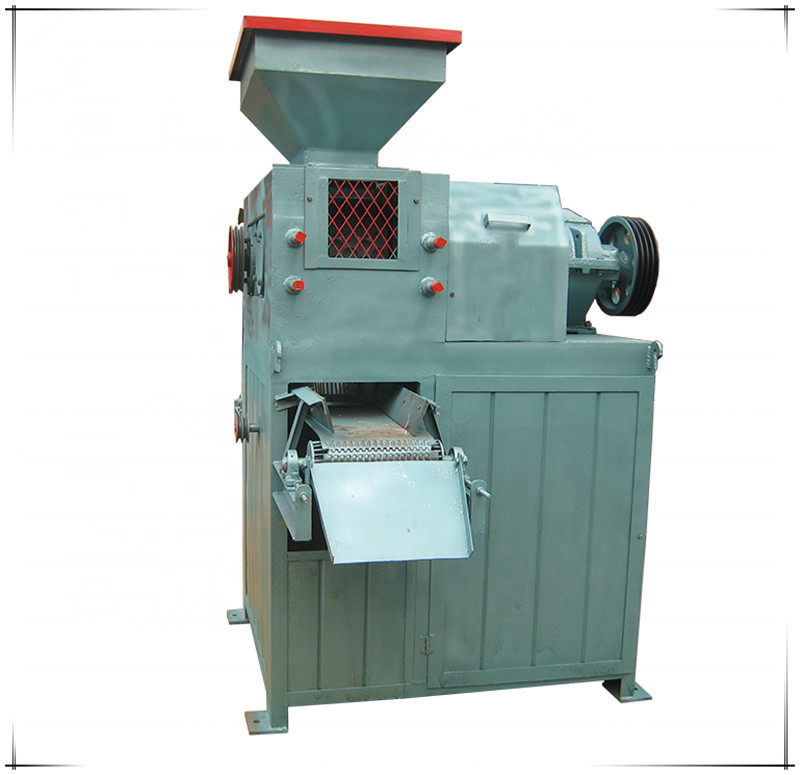

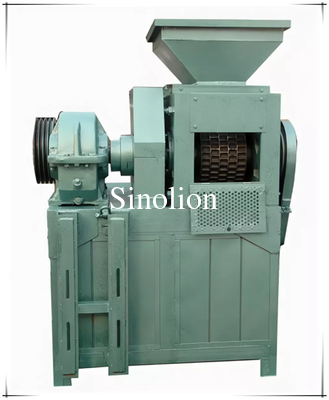

Southeast premium briquettes coconut shell fiber charcoal briquette making machine
Brief introduction of roller briquette machine:
Briquette machine is a kind of mechanical equipment which can press powder particles into spherical, oval, square. As granular powder is difficult to shape, briquette machine can make it formed quickly and stably.
Working principle of roller briquette machine:
1. Ball press machine transmits the power to two pressure rollers through reducer and makes them rotate in opposite directions.
2. In two pressure rollers rotation, materials naturally enter into the ball molds on pressure roller and materials pressure vary from small to large with the rotation of the pressure roller.
3. When materials are rotated to two rollers line contact points, materials pressure has reached a peak. Powder materials are suppressed into finished ball under enormous pressure .
Features of the roller briquette machine:
1. high pressure of equipment
2. 56-63 HRC hardness of the rollers
3. High density of briquetting
4. Compact structure and durable quality
5. Low consumption
Raw materials application:
Our coal briquettes press machine is mainly used for briqutting pulverized coal, coal face, slime, coal, coke powder, coking coal, coke, coke and metallurgical powder into briquettes and pellets by using high cold mechanical pressing method.
(1) Afer-sale service will send technician to customer site for installation if at present epidemic allowed.
(2)Be responsible for equipment adjustment and trial operation.
(3)Provide customer training program
(4)In time tracks the problems encountered in the customer's production process. Our company's service personnel guarantee a clear solution within 24 hours.
1.20GP or 40GP International export standard container pack briquette machine
2.Small parts are woodened box package
3.Inside plastic packaged
