Alluvial Gold Ore Mining Rotary Gravity 30tph Trommel Machinery Processing Plant
1set
MOQ
USD2900-15,000/SET
Price
Alluvial Gold Ore Mining Rotary Gravity 30tph Trommel Machinery Processing Plant
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Henan province, China
Brand Name: Berno
Certification: SGS
Model Number: YGTS0519, YGTS1020, YGTS1225, YGTS1545, YGTS1548, YGTS1848, YGTS2060
Payment & Shipping Terms
Packaging Details: wooden case, standard container
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 20Sets per month
Specifications
Type: Screen Printing Frame,Photo Emulsion For Screen Printing
Color: Blue,Customized,Blue Color Photo Emulsion,Silver
Usage: Glass Mosaic,Screen Printing,Water Treatment Chemicals,Label Printer
Application: Advertisement Printing
Condition: New
Purity: As Request
Voltage: 220V/110V,110V / 220V,AC220 1P/380V 3P
Automatic Grade: Automatic
Warranty: 1 Year
Product Description

Alluvial Gold Ore Mining Rotary Gravity 30tph Trommel Machinery Processing Plant

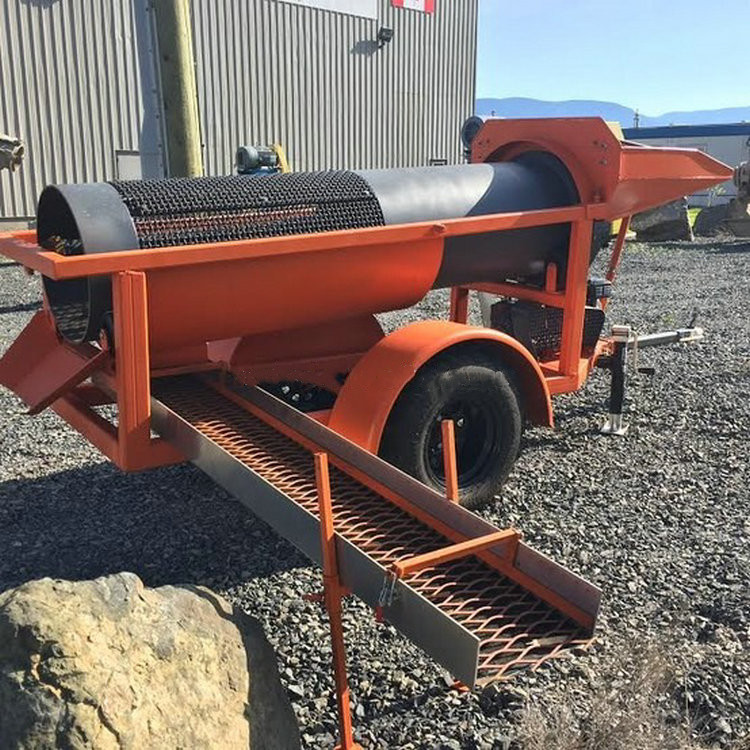

Alluvial Gold Ore Mining Rotary Gravity 30tph Trommel Machinery Processing Plant 0

Introduction of placer gold trommel screen

Placer gold trommel is a movable drum sieve gold equipment on land, it has a compact structure, strong integrity,

light weight, large handling capacity, simple operation, reliable work, and easy maintenance, easy to move and so on.Th e quipment is mainly used in dry land beach, river is a gravity processing equipment is mainly used in sand gold ore and the recovery of monomer gold in the vein.

Alluvial Gold Ore Mining Rotary Gravity 30tph Trommel Machinery Processing Plant 1
The structure of placer gold trommel screen



Placer gold trommel is composed of feeding hopper, screen drum, chassis, wheel, transmission device (optional parts: gasoline engine and belt conveyor). It overcomes the problem of screen blocking of various vibrating screens when screening wet materials. Increased production and reliability of the screening system. The maximum product under the sieve is 100mm, the middle is 10-50mm, and the finest is up to 3mm. The product is well received by the vast majority of customers at home and abroad.



Operation



First connect the pipe to the spray nozzle, then open the pump to check the operation of the machine and equipment.



Second, check the operation of the gasoline engine, manually pull the gasoline engine, running for a few minutes, to see whether it is normal.



Then, start feeding, the material through the grate slowly into the drum screen, so that the big material is screened out, small material into the drum screen. Start the spray nozzle, pump will smoke coming from a distance, the water to spray the mouth, and then at a certain pressure, the water to the spray pipe, water wash away the mud, the supplies of greater than 5 mm material emerged from behind the barrel body, less than 5 mm material after drum sieve screening, slowly into the sneak gold, gold above the grass with a lot of gold.



Driving method:



There are three ways to start the drum screen, one is gasoline engine, one is motor start, and one is diesel engine. Gasoline engine noise is low, customers generally choose gasoline engine.

Gasoline engines are quieter than diesel engines. You don't want to pull the gasoline engine by hand. We can change it to an electric one for you. It can also be driven by a motor or a diesel engine.



Main technical parameters:

Model capacity(t/h) power(kw) screen diameter(mm) screen length(mm) input size(mm) discharge size(mm) dimension(mm)
YGTS0519  50-10 3 500 1910 0-100 <300 3000*1000*1400
YGTS1020 10-30 4 1000 2000 0-100 <300 3390*1400*2140
YGTS1225 30-50 5.5 1200 2500 0-100 <300 4146*1600*2680
YGTS1545 50-120 11 1500 4500 0-100 <400 8160*2300*2500
YGTS1548 80-150 15 1500 4800 0-100 <400 8160*2300*2500
YGTS1848 100-200 15 1800 4800 0-100 <400 8460*2300*2700
YGTS2060 200-400 30 2200 6500 0-100 <400 9680*2300*3420





Alluvial Gold Ore Mining Rotary Gravity 30tph Trommel Machinery Processing Plant 2

Frequent questions



Q1: How long is the delivery time?

A: It will takes about 7-10 days for delivery after pre-payment.



Q2: What is the driving force?

A: Japan Honda Gasoline Engine. The Honda Gasoline Engine could supply Environmental Protection Certificate.



Q3: How long is the warranty period A: One year



Q4: Do you have a certificate of origin, EU certification, etc. A: yes, of course



Q5: How many wheels does it have?

A: There are two and four rounds, according to customer requirements



Shipping & packing

Alluvial Gold Ore Mining Rotary Gravity 30tph Trommel Machinery Processing Plant 3

Alluvial Gold Ore Mining Rotary Gravity 30tph Trommel Machinery Processing Plant 4

Alluvial Gold Ore Mining Rotary Gravity 30tph Trommel Machinery Processing Plant 5
