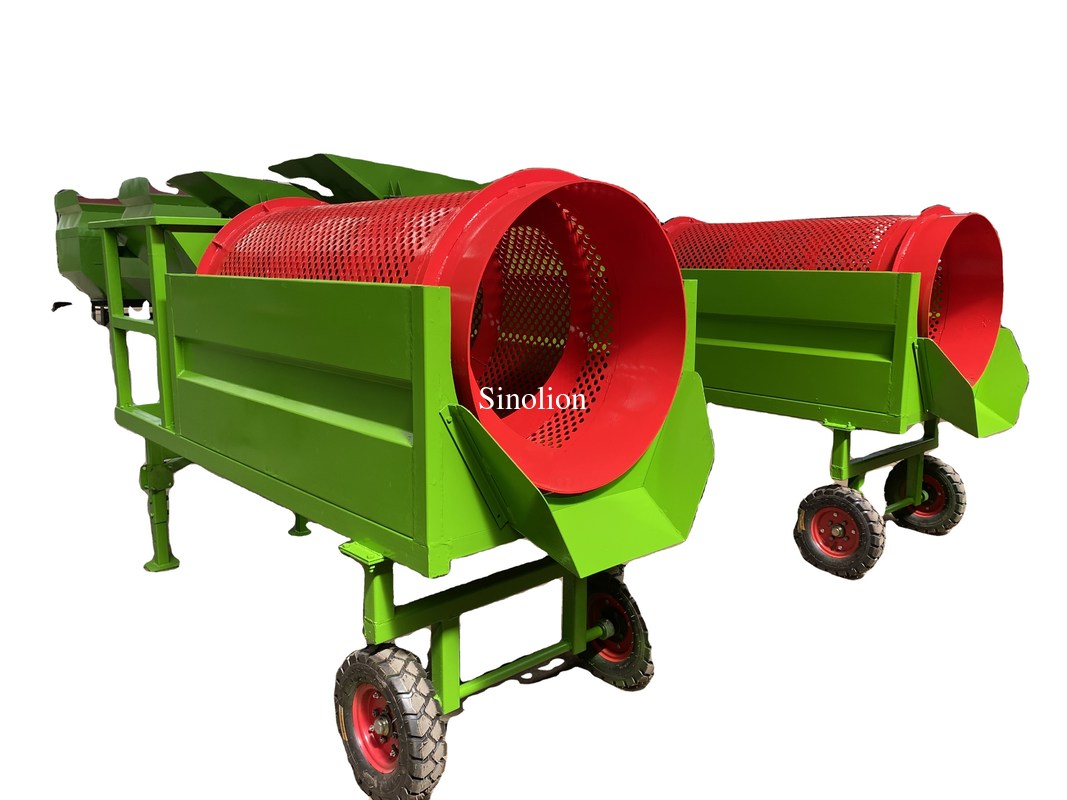

Farm fertilizer sand sawdust mobile rotary drum trommel screen

Farm fertilizer sand sawdust mobile rotary drum trommel screen

Farm fertilizer sand sawdust mobile rotary drum trommel screen
Farm fertilizer sand sawdust mobile rotary drum trommel screen Farm fertilizer sand sawdust mobile rotary drum trommel screen Farm fertilizer sand sawdust mobile rotary drum trommel screen Farm fertilizer sand sawdust mobile rotary drum trommel screen Farm fertilizer sand sawdust mobile rotary drum trommel screen

Large Image :  Farm fertilizer sand sawdust mobile rotary drum trommel screen Get Best Price

Product Details:
Place of Origin: Henan province, China
Brand Name: Sinolion
Certification: SGS
Model Number: MTS0818, MTS1022, MTS1230, MTS1550
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD4000-28000/SET
Packaging Details: wooden case, standard container
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 20Sets per month
Detailed Product Description
Type: Compost Trommel, Sand Trommel, Mobile Screen Color: Blue,Customized,Blue Color Photo Emulsion,Silver
Usage: Glass Mosaic,Screen Printing,Water Treatment Chemicals,Label Printer Application: Advertisement Printing
Condition: New Purity: As Request
Voltage: 220V/110V,110V / 220V,AC220 1P/380V 3P Automatic Grade: Automatic
Warranty: 1 Year Color: Green Or Customized

Farm fertilizer sand sawdust mobile rotary drum trommel screen



Farm fertilizer sand sawdust mobile rotary drum trommel screen 0

Introduction of compost processing trommel



MTS series trommel screen machine is well known for its large processing capacity of compound fertilizer and farm compost. It is also a good choice for the classification of refractory materials, coal, sand , soil, grval, earth, sandstone block, limestone, metallic or non-metallic minerals,etc.

Farm fertilizer sand sawdust mobile rotary drum trommel screen 1



Farm fertilizer sand sawdust mobile rotary drum trommel screen 2
The structure of
compost processing trommel



The main structure of trommel screen machine is sieving cylinder, which is composed of several circular shape of the screen.The whole and ground plane is in heeling condition.External sealed the isolation cover seal is to prevent the pollution of the environment. The speed reducing system enables the screening cylinder rotates at a certain speed.Thus the material is separated by sieving cylinder from top to bottom.Afterwards fine material is discharged from the lower front part of sieving cylinder.While coarse material discharged from the tail end of the screening cylinder.

Operation



(1) Smoothly operation and low noise.
(2) High powerful Screening ability, screened and washed widely and remarkable effects.
(3) The screening tube can be closed, easy to collect dust airtight.
(4)The high reliability and one-time investment is less.





Main technical parameters:

Model capacity(t/h) power(kw) screen diameter(mm) screen length(mm) volume(m³) sieve square meters shell dimension(m)
MTS0818  <15 2.2 800 1800 0.4 3 1.2*0.8*0.8m
MTS1022  <30 2.2 1000 2200 1.1 5.3 2*1.3*0.7m
MTS1230  <60 4 1200 3000 2 8.3 2.35*1.6*0.88m
MTS1550  <90 5.5 1500 5000 4.5 18.84 3*1.7*1m





Farm fertilizer sand sawdust mobile rotary drum trommel screen 3

Frequent questions



Q1: How long is the delivery time?

A: It will takes about 7-10 days for delivery after pre-payment.



Q2: What is the driving force?

A: Japan Honda Gasoline Engine. The Honda Gasoline Engine could supply Environmental Protection Certificate.



Q3: How long is the warranty period A: One year



Q4: Do you have a certificate of origin, EU certification, etc. A: yes, of course



Q5: How many wheels does it have?

A: There are two and four rounds, according to customer requirements



Shipping & packing

Farm fertilizer sand sawdust mobile rotary drum trommel screen 4

Farm fertilizer sand sawdust mobile rotary drum trommel screen 5

Farm fertilizer sand sawdust mobile rotary drum trommel screen 6
