Product Details:
Payment & Shipping Terms:
|
Condition: | New | Weight: | 1-30t |
---|---|---|---|
Warranty: | 12 Months | Dimension(l*w*h): | 2800mmx2342 Mmx2668mm,3789*2826*3025mm,Detailed Description,According To The Machine Type,2620*2302*3110 Mm |
After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service,Online Support,Video Technical Support,Field Installation |

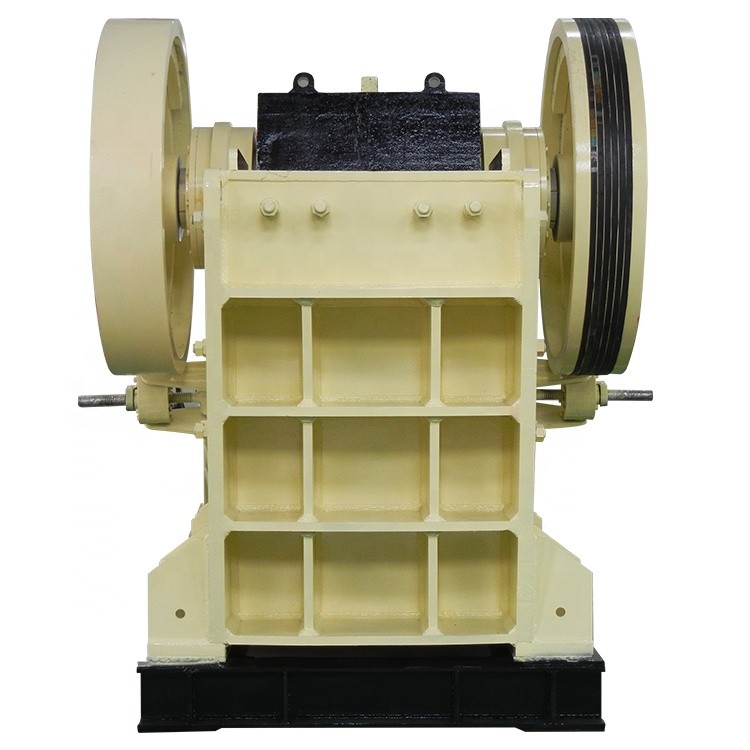

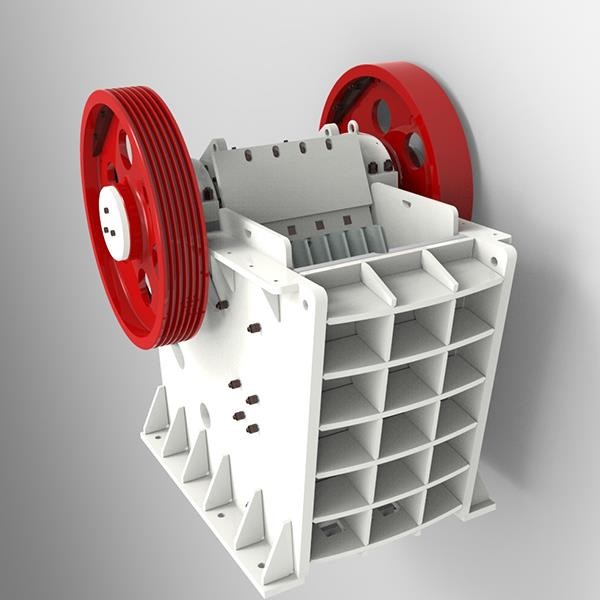

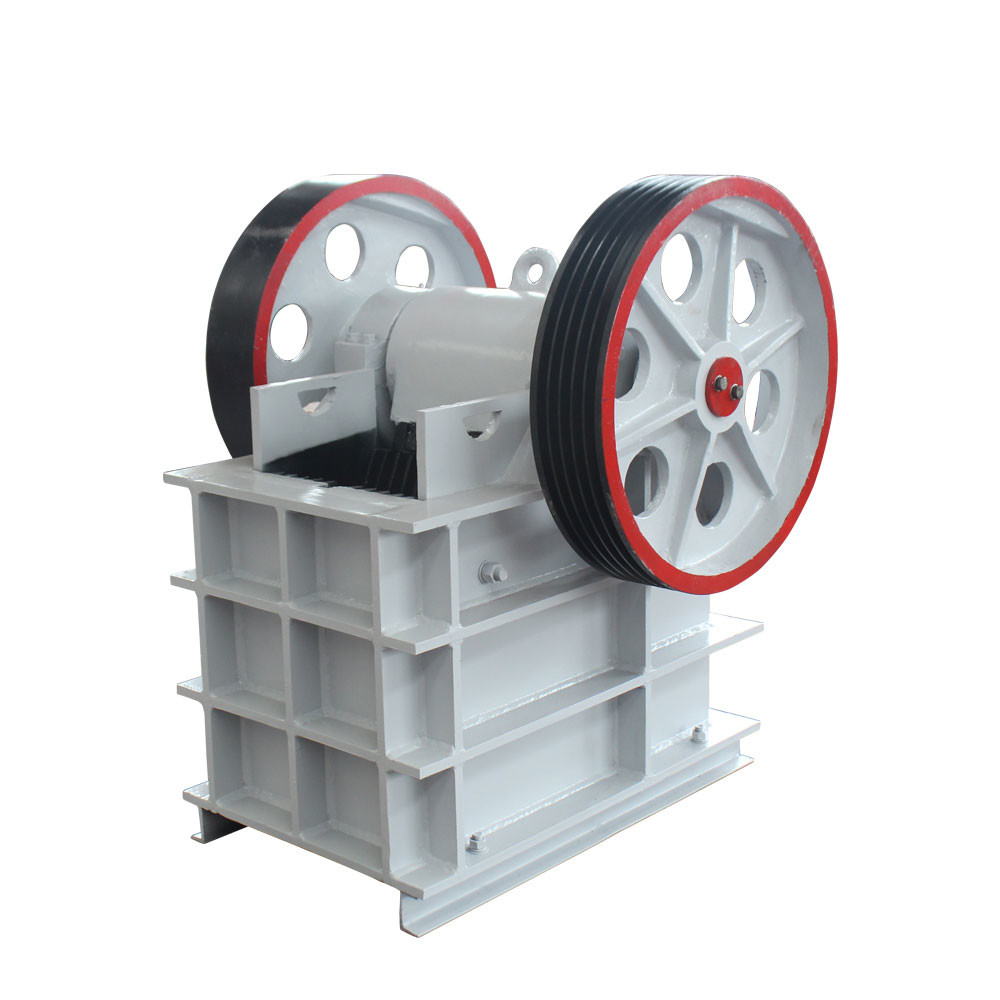

Small Rock Stone Jaw Crusher Mining Jaw Crusher Machine /Granite Crusher Machine
Specifications
1.ISO9001:2000
2.Price:negotiable
3.Capacity:50-120T/H
4.Payment terms:LC,TT
Application
PE series jaw crusher, whose reduction ratio up to 4-6 and the finished products are even, can be widely used in breaking hard, medium-hard, soft ore, such as various kinds of ore, the solvent, slag, building stones, marble,etc. compression strength does not exceed 320Pa. This machine is suitable for mines,building materials,highway,railway,water conservancy and chemical industry,etc.
Futures of jaw crusher:
1) Firm structure, stable performance, large capacity, even producing granularity.
2) With the increase of production, our jaw crusher can greatly reduce the operating costs.
3) Convenient maintenance and economical running expense..
4) The large feed opening and force-feeding action from the inward and downward eccentric movement of the swing jaw mean that our jaw crusher can increase the capacity.
Specification of jaw crusher:
Model |
Feed Opening |
Max. Feed Size |
Capacity |
Power |
Discharge Opening |
Overall Dimension |
PE-150×250 |
150×250 |
125 |
1-5 |
5.5 |
10-40 |
758×758×794 |
PE-250×400 |
250×400 |
210 |
5-20 |
15 |
20-60 |
1500×1400×900 |
PE-400×600 |
400×600 |
340 |
16-65 |
30 |
40-100 |
1700×1800×1600 |
PE-500×750 |
500×750 |
425 |
50-100 |
55 |
50-100 |
1890×1940×1870 |
PE-600×900 |
600×900 |
500 |
50-120 |
55 |
65-160 |
2395×1843×2230 |
PE-750 ×1060 |
750×1060 |
630 |
52-180 |
110 |
80-140 |
2775×2426×2840 |
PE-800×1060 |
800×1060 |
640 |
136-230 |
110 |
100-200 |
2500×2472×2810 |
PE-900×1200 |
900×1200 |
750 |
140-260 |
110 |
95-165 |
3400×3200×3500 |
PE-1000×1200 |
1000×1200 |
850 |
315-342 |
110 |
195-265 |
3335×3182×3430 |
PE-1200×1500 |
1200×1500 |
1020 |
400-800 |
160 |
150-300 |
4200×3732×4620 |
PE-250 ×750 |
250×750 |
210 |
15-30 |
22 |
15-70 |
1400×1300×1350 |
PE-250×1000 |
250×1000 |
210 |
16-52 |
30 |
25-60 |
1600×2000×1500 |
PE-250 ×1200 |
250×1200 |
210 |
20-60 |
37 |
25-60 |
1900×2200×1500 |
PE-300×1300 |
300×1300 |
260 |
30-70 |
55 |
30-90 |
1800×2300×1700 |
Packing details
We will load different sizes of packing according to different machine sizes, and the normal packing is in wooden cases. If exported to European countries, wood frame will be fumigation. If the container is too tight, we will use the PE film according to the customer's special requirements.
Our services
Pre-service
1) Inquiry and consulting support.
2) Pre-sale service: Freely provide project designing, process designing, choosing suitable equipment for you.
3) View our Factory. Field trips to sell products.
After-service
1) After acceptance of the equipment, we will draft the construction program and detailed process, and complete the export process.
2) After-sales service: We sent engineer to the scene to guide installation, debugging and training operators.
