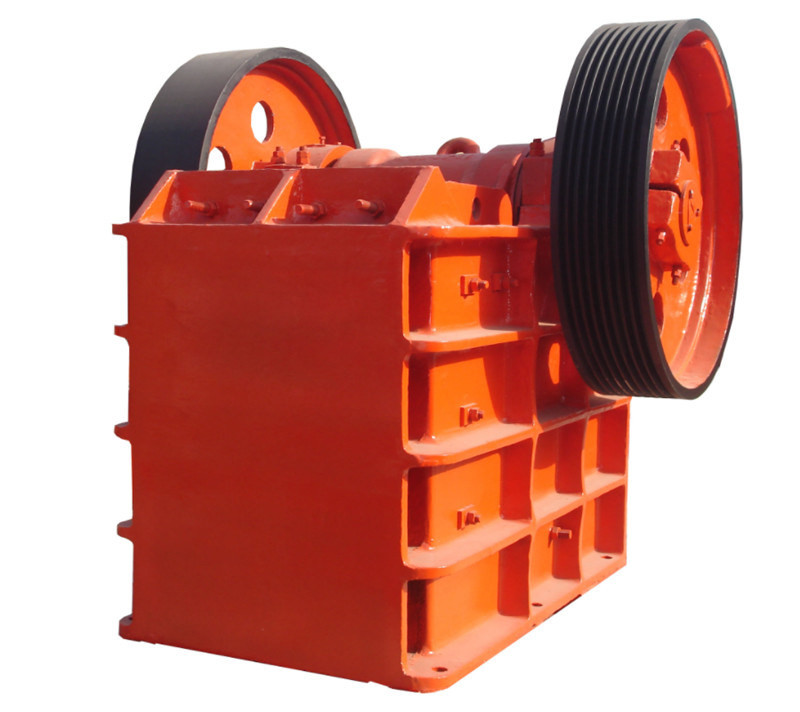

China henan jaw crusher machine professional mining equipment for gold

China henan jaw crusher machine professional mining equipment for gold

China henan jaw crusher machine professional mining equipment for gold
China henan jaw crusher machine professional mining equipment for gold China henan jaw crusher machine professional mining equipment for gold China henan jaw crusher machine professional mining equipment for gold China henan jaw crusher machine professional mining equipment for gold

Large Image :  China henan jaw crusher machine professional mining equipment for gold Get Best Price

Product Details:
Place of Origin: Henan Province, China
Brand Name: Sinolion
Certification: ISO,SGS
Model Number: PE400*600 Jaw Crusher
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 2000USD-10000USD
Packaging Details: standard container or wooden case
Delivery Time: in stock
Payment Terms: T/T, L/C, Western Union
Supply Ability: 20 set per month
Detailed Product Description
Condition: New Weight: 1-30t
Warranty: 1 Year Dimension(l*w*h): Detailed Description
After-sales Service Provided: Engineers Available To Service Machinery Overseas Type: Jaw Crusher
Motor Type: AC Type Capacity(t/h): 5-20t/h
Application: Mining,coal,construction,ore,stone Color: Customizable
Product Name: Mining Rotary Rock Equipment,PE400x600 Jaw Crusher With ISO CE,Stone Jaw Crushers Plant/mining Equipment/stone Crusher Machine,China Henan Jaw Crusher Machine Professional Mining Equipment For Gold Test&installation: Professional Engineer Assigned,Engineer's Guide
Spare Parts Supply: Will Supply Any Time Installation: Under Engineer's Guide,engineer Guide On Site,under The Guidance Of Engineer,Professional Engineers Assigned
The Machines Classification: Stone Crushing Machine Keyword: Rock Crusher,jaw Crusher
Max Feeding Size: 35-300 Mm After-sale Service: 12 Months

 China henan jaw crusher machine professional mining equipment for gold



Product Description


The jaw crusher is used in the first process of crushing various minerals and rocks. It can process various ores with a compressive strength not higher than 320MPa to a medium particle size at one time. It is often used to form a complete set of sand and gravel production lines with cone crushers, impact crushers, and sand making machines and so on, which are widely used in mining, metallurgy, chemical, building materials, power, water conservancy, transportation and other fields.

China henan jaw crusher machine professional mining equipment for gold 0
Specifications

1.various types
2.reliable operation
3.easy to maintain
4.high capacity



Application of Jaw Crusher:
Jaw crusher is a trusted and reliable brand for its high quality and good manufacturing. It specializes in producing Jaw Crusher which is widely applied to crush high hardness, mid hardness and soft rocks and ores such as slag, construction materials, marble, etc. The pressure resistance strength is under 200Mpa, that is, suitable for primary crush. Each model has a large feed opening for its size and an ideal nip angle, giving smooth material flow, high reduction efficiency and high capacity. Their simple design conceals many advanced features that give easy operation, simple maintenance, long life and a low cost per ton.
The structure of Jaw Crusher:
The structure of Jaw Crusher includes Main Frame, Main Axle, Roller Bearings, Eccentric Shaft, Jaw Plates, Side Plates, Toggle Mechanism, Fly Wheels and Springs.
The Features of Jaw Crusher:
1. Jaw Crusher is of various types;
2. Jaw Crusher is suitable for crushing maximum, medium and minimum stones;
3. The operating principle of Jaw Crusher is easy to be operated;
4. The structure of Jaw Crusher is simple and it is easy to maintain;
Operating principle:
Jaw crusher uses motor as its power. Through the motors wheels, the eccentric shaft is driven by the triangle belt and slot wheel to make the movable jaw plate move by a regulated track. Therefore, the materials in the crushing cavity composed of fixed jaw plate, movable jaw plate and side-lee board can be crushed and discharged through the discharging opening.
Specifications of Jaw Crusher:

Model

Max feed size
mm

Adjust size
mm

Capacity
m³/h

Rotate speed
r/min

Power
kw

Weight
kg

 PEF150X750

 125

10-40

 1-3

 285

 7.5

 700

 PEF200X300

 165

 20-70

 2-8

 265

 11

 800

 PEF250X400

 210

 20-80

 5-20

 310

 18.5

 3000

 PEF400X600

 340

 40-90

 10-40

 275

 30

 7200

 PEF350X750

 290

 30-55

 20-50

 300

 37

 8900

 PEF500X750

 425

 50-100

 34-68

 275

 55

 11320

 PEF600X900

 480

 75-200

 40-120

 255

 75

 17600

 PEF750X1060

 630

 80-200

 80-160

 250

 90

 30530

 PEF900X1200

 750

 100-200

 110-200

 250

 110

 50000

 PEF1000X1200

 850

 195-265

 315-500

 200

 110

 55000

 PEF1200X1500

 1020

 150-300

 400-800

 180

 160

 100000

 PEX150X750

 125

 10-40

 5-15

 300

 15

 3600

 PEX250X750

 210

 15-55

 10-32

 300

 30

 7350

 PEX250X1200

 210

 15-60

 12-38

 300

 37

 8700

 PEX300X1300

 250

 20-90

 16-65

 300

 55

 11600



China henan jaw crusher machine professional mining equipment for gold 1

Working Principle

The jaw crusher is mainly composed of a frame, an eccentric shaft, a large belt pulley, a flywheel, a side guard, a toggle, a toggle back seat, a clearance screw, a return spring, a fixed jaw and a movable jaw. The crushing method of jaw crusher is curved extrusion type. When working, the motor drives the belt and pulley to move the movable jaw up and down through the eccentric shaft. When the movable jaw rises, the angle between the toggle plate and the movable jaw becomes larger, thereby pushing the movable jaw plate closer to the fixed jaw plate, and the material passes through the two jaws. The squeezing, rubbing, and grinding between the plates realize multiple crushing; when the movable jaw moves down, the angle between the toggle plate and the movable jaw becomes smaller, and the movable jaw leaves the fixed jaw under the action of the pull rod and spring, and the material has been crushed under the action of gravity, it can be discharged freely through the discharge port at the lower part of the jaw cavity. With the continuous rotation of the motor, the movable jaw is periodically crushed and discharged to realize mass production.

China henan jaw crusher machine professional mining equipment for gold 2

Our company information:

♥Zhengzhou Berno Machinery Co., Ltd. is a high-tech Company which professional manufacturing the production of briquette equipment, building material equipment, and mining machinery.
♥After 30years of development, Sinolion machinery is now setting up branches, integrating engineering, trade, research and development, production and sale to develop to be a large sized enterprise.

♥Berno machinery has modern standard workshops, as well as advanced technology and testing equipment. Extensively cooperating with coal research institutions and other research departments,
Now, 10,000-300,000 tons briquette production lines are renowned in domestic and foreign markets, Our products have been exported to Indonesia, Kazakhstan, Vietnam, North Korea, Egypt and other countries and regions. It is ideal equipment for briquette mine power in the world market.
♥Zhengzhou Berno machinery provides space planning and design, equipment installation and commissioning support.

China henan jaw crusher machine professional mining equipment for gold 3
