Anthracite Coal Ball Briquettes Production Plant Matched Briquetting Machine
1set
MOQ
USD1600-12000 per set
Price
Anthracite Coal Ball Briquettes Production Plant Matched Briquetting Machine
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Berno
Certification: CE,SGS
Model Number: XM290
Payment & Shipping Terms
Packaging Details: wooden case, standard container
Delivery Time: 3-5 working days advanced payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets per month
Specifications
Condition: New
Warranty: 1 Year
Type: Briquette Machines,Custom Design
Motor Type: AC Motor,DC Motor,Other
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Field Maintenance And Repair Service
Dimension(l*w*h): As Specification Customized
Production Capacity: 600-1200kg/h
Certification: CE,ISO9001,ISO9001-2008,ISO
Power(w): 7.5-15KW
Raw Material: Charcoal Powder,sawdust,Coal.charcoal Powder,coal Dust
Color: Client's Required
Briquette Shape: Round,Round Square Hexagon Pillow,Cylinder-shaped
Application: BBQ,Fuel,mining,Charcoal Briquetting
Name: Briquette Press Machine,shisha Charcoal Briquette Machine,scrap Iron Press Machine,Roller Press Bbq Charcoal Coal Briquette Machine Price,coal Briquettes Pressing Ball Briquetting Roller Press Machine
Voltage: 220V/380V/415V/460V
Keyword: Sawdust Briquette Machine Supplier,briquette Press Machine
Product Name: Briquette Press Machine,Brequitte Making Machine
Product Description

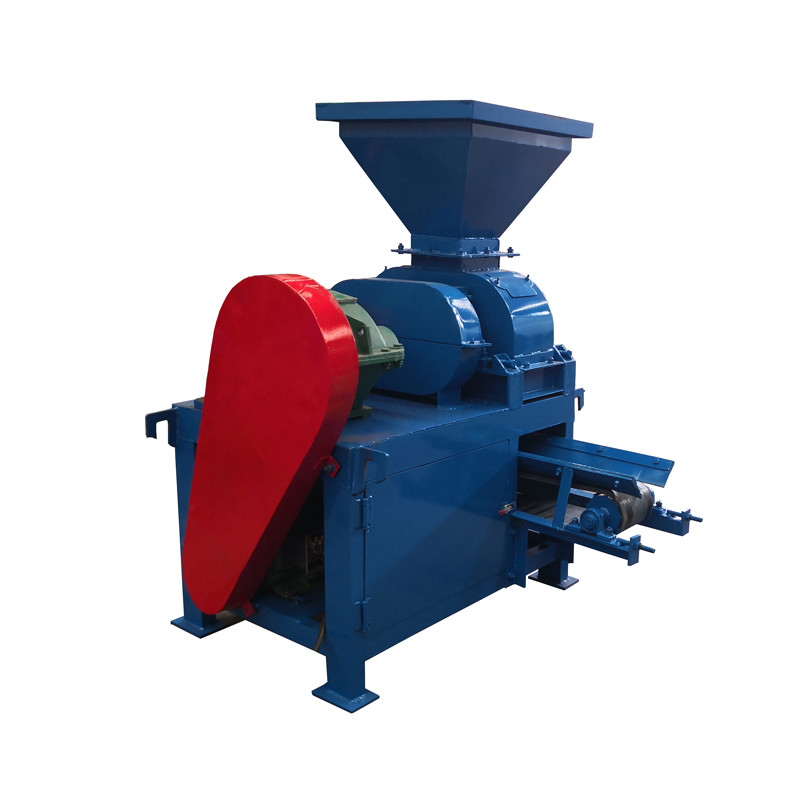

Anthracite Coal Ball Briquettes Production Plant Matched Briquetting Machine 0

Anthracite Coal Ball Briquettes Production Plant Matched Briquetting Machine



Coal briquette machine including common roller type briquette machine and dry powder briquette machine.



Common roller type briquette machine also named ball press machine, briquetting machine, briquette making machine , briquette press machine etc, it can used to press various powders such as coal powder, iron powder, coking coal, slag, oxidation iron sheet, carbon dust, gypsum, tailings, sludge, kaolin, active carbon and burnt powder, etc.
Common roller type briquette machine also applies on the industries such as refractory material, electric power plant, metallurgy, chemical industry, energy, transportation and heating, etc.

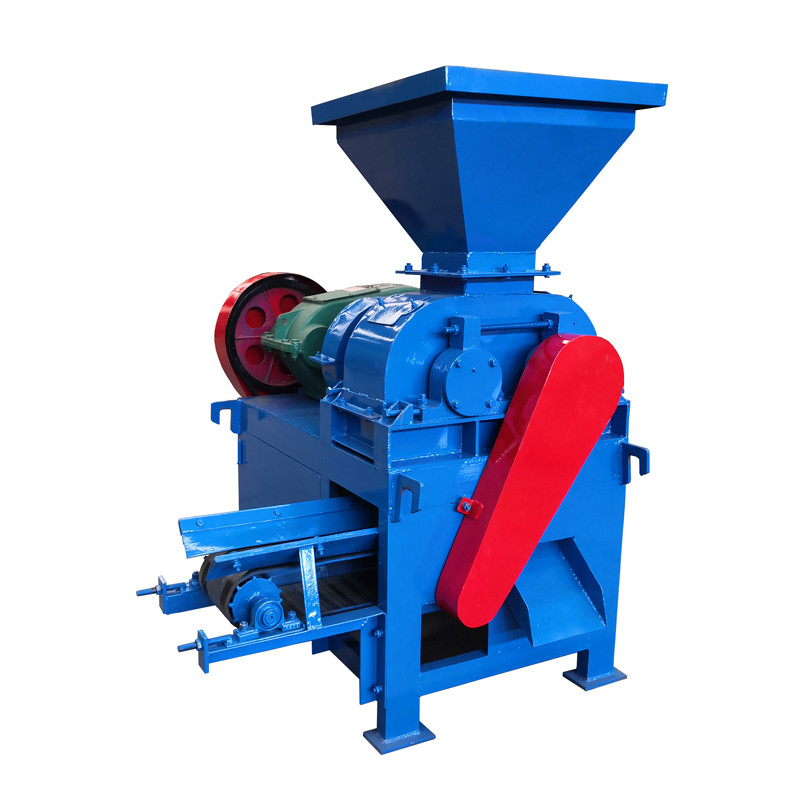

Anthracite Coal Ball Briquettes Production Plant Matched Briquetting Machine 1

Common roller briquette machine technical parameter:

Model
Reducer
Roller Size (mm)
Power(kw)
Yield (t/h)
XM290
ZQ300
Φ290
5.5
0.8-2
XM360
ZQ350
Φ360
7.5
2-3.5
XM400
ZQ400
Φ400
11
4-5
XM430
ZQ400
Φ430
11
5-7
XM500
ZQ500
Φ500
18.5-30
6-8
XM650
ZQ650
Φ650
22
8-12
XM750
ZQ750
Φ750
30 -75
12-18
XM850
ZQ850
Φ850
55-90
18-25



Common roller briquette machine application materials
The material which can use common roller briquette machine to press briquette including many industries.

Raw material size: 0-5mm

Raw material moisture:8-15%

1.Coal 2.Charcoal 3.Desulfurization Gypsum 4 charcoal 5.carbon black 6.manganese 7.light burning magnesium
8.clay 9.copper powder 10.iron powder (fines) 11.iron oxide skin 12.mill scale 13.lime powder 14.sludge 15.silicon carbide 16.gypsum 17.coke coal etc.

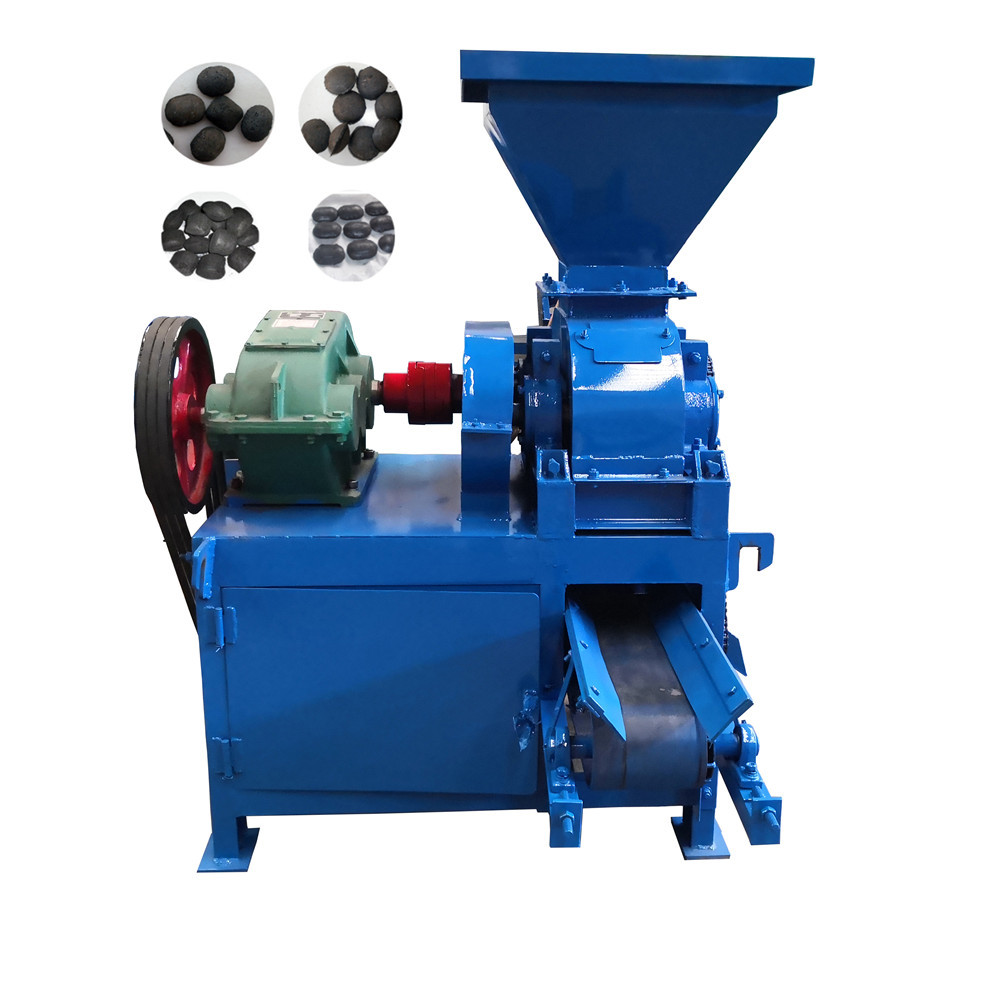

Anthracite Coal Ball Briquettes Production Plant Matched Briquetting Machine 2



Briquette production line

General the complete briquettes production line include material Dryer --- Hopper --- Crusher--- Mixer--- Briquette Machine--- Briquette--- Briquette Dryers.

Our engineers will design process flowchart and choose suitable machines according customers actual demand and working place.

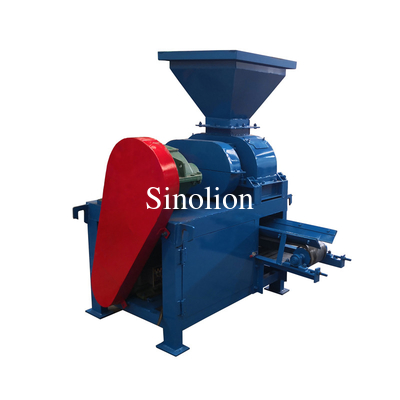

Anthracite Coal Ball Briquettes Production Plant Matched Briquetting Machine 3



Press roller of briquette machine

Roller forming methods divided into two types whole forging and casting, when casting, the roller has low-density and structure is rough but economical, Forging is shaping depending on air beating gravity, thus very substantially increased roller density, due to high density, it has effectively improved the wear resistance and extended service life.

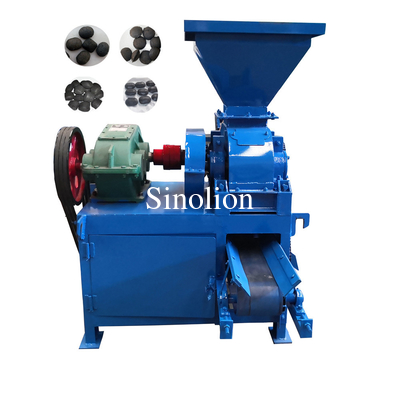

Anthracite Coal Ball Briquettes Production Plant Matched Briquetting Machine 4

Briquette Machine roller making

Roller material: 65Mn/9Cr2Mo /High chromium alloy

We have different roller material to choose when briquetting different materail.
The diameter of roller based on briquette machine model.
The briquette shape can be oval, oblate and pillow shape etc.
The size of final briquette between 20-75mm

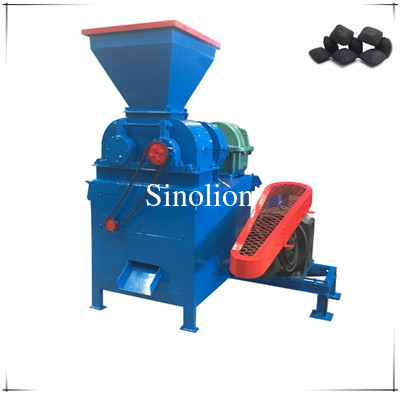

Anthracite Coal Ball Briquettes Production Plant Matched Briquetting Machine 5

Anthracite Coal Ball Briquettes Production Plant Matched Briquetting Machine 6

Briquettes information

The final briquette out from our briquette machine can be oblate, pillow and oval shape.

The briquette size between 20-75mm.

Please confirm briquette shape and size before briquette machine making.

Packing &Shipping

Packing Details : All products will be processed to be rustproof and moisture proof before delivery.

20GP container or 40GP container
Equipment is packed with plastic wrap or steel case, depends on machine weight.
Motro is packed with steel case or wooden case. Control panel is packed with steel case.
Loading container in factory.

Delivery Details : 15-25 days after confirming order,detail delivery date should be decided according to production season and order quantity.

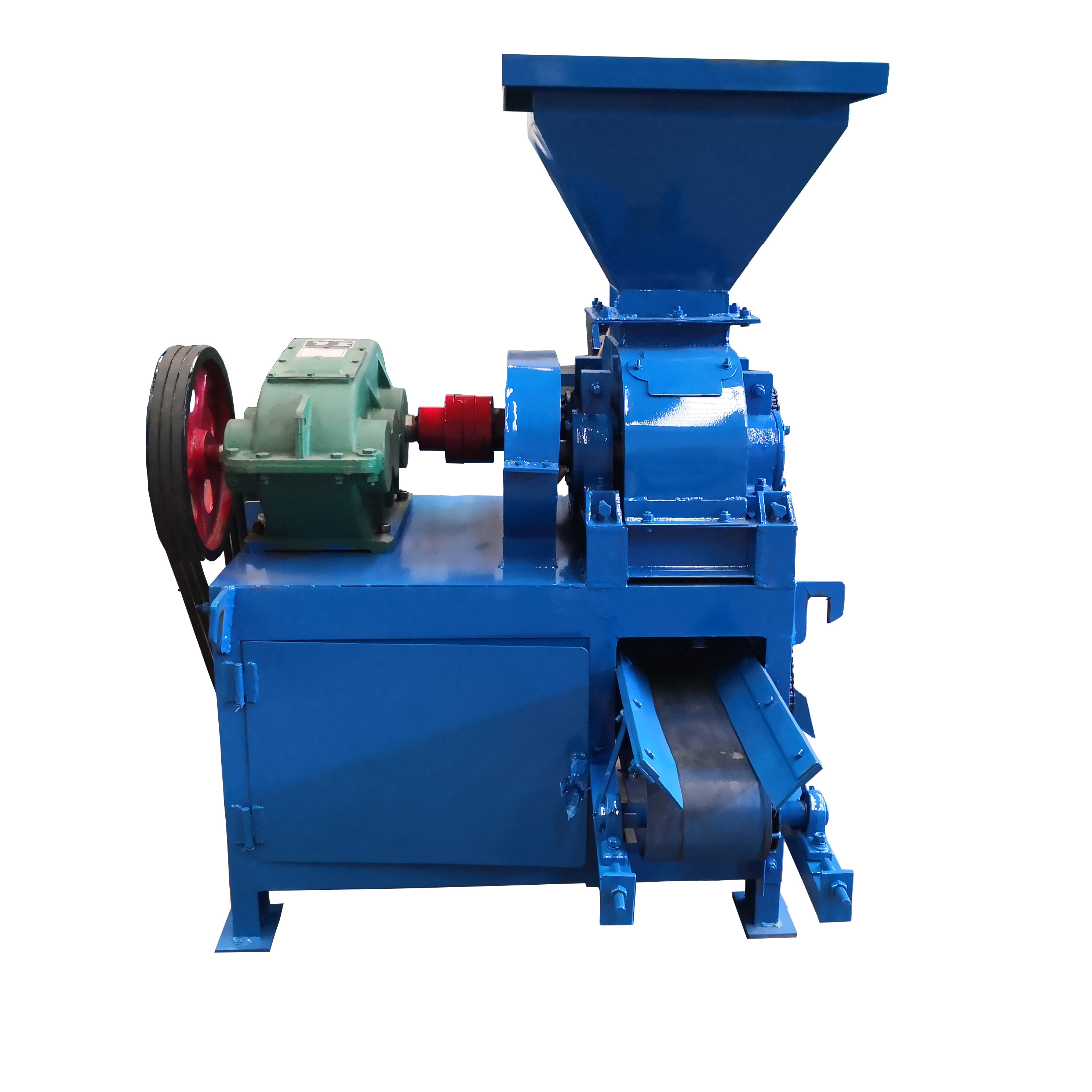

Anthracite Coal Ball Briquettes Production Plant Matched Briquetting Machine 7

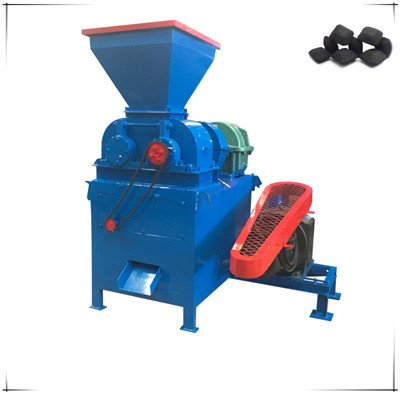

Anthracite Coal Ball Briquettes Production Plant Matched Briquetting Machine 8
