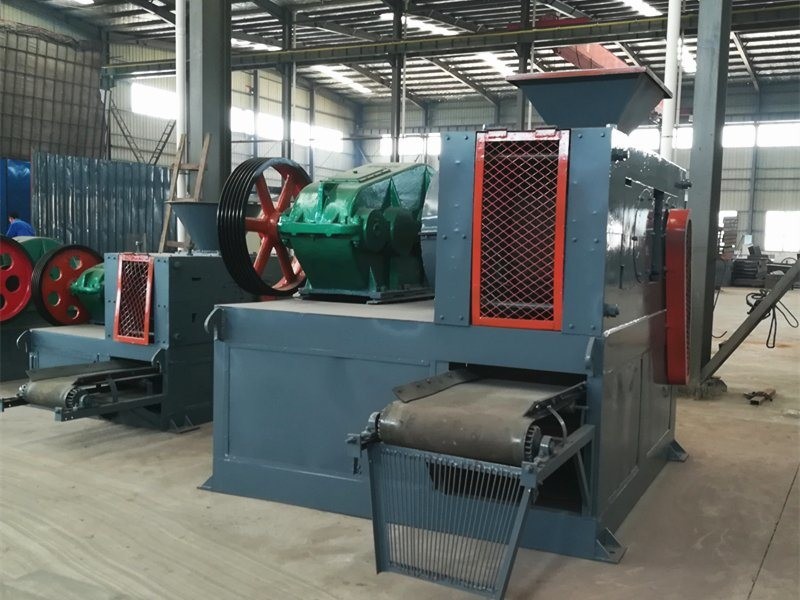

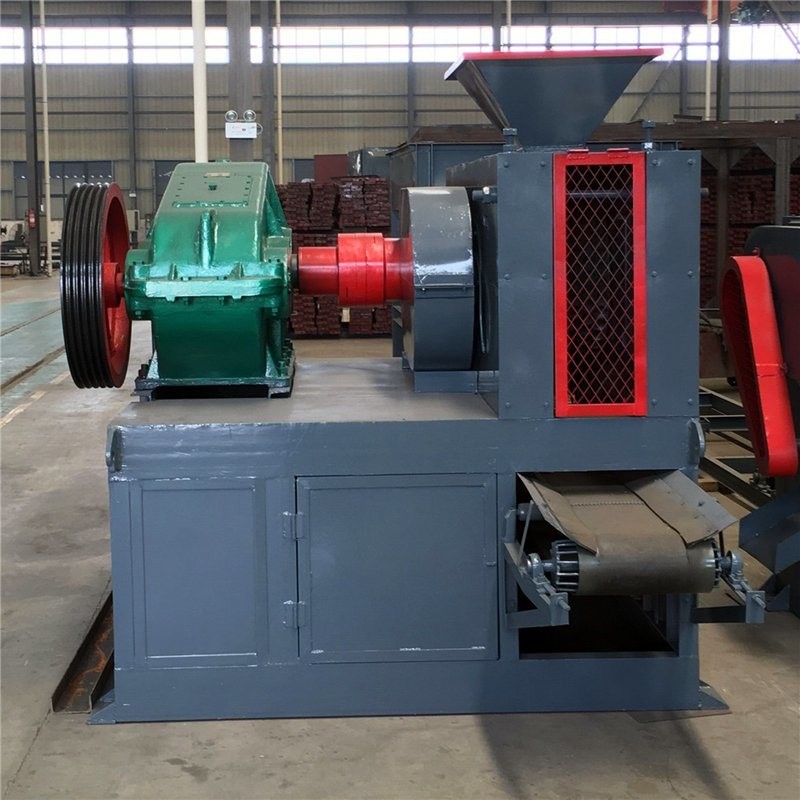

High pressure fluorite limestone mineral powder briquette making machine
1set
MOQ
3000USD-12000USD
Price
High pressure fluorite limestone mineral powder briquette making machine
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Henan Province, China
Brand Name: Berno
Certification: CE, SGS
Model Number: KF370, KF500, KF650, KF750, KF850, KF1000
Payment & Shipping Terms
Packaging Details: standard container
Delivery Time: 20 days
Payment Terms: T/T, L/C
Supply Ability: 10sets per month
Color: white
Specifications
Condition: New
Warranty: 1 Year,one Year
Type: Briquette Machines
Motor Type: AC Motor
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support
Dimension(l*w*h): Madel
Certification: CE,SGS
Power(w): 5.5-132KW
Color: Client's Required
Briquette Shape: Round,Round Square Hexagon Pillow
Application: Fuel,abrasives,mining
Name: Briquette Press Machine,scrap Iron Press Machine
Voltage: 380v,220V/380V/415V/460V
Keyword: Briquette Press Machine
Product Name: Briquette Press Machine,Brequitte Making Machine
Weight: 3-25 Ton Per Unit
Product Description

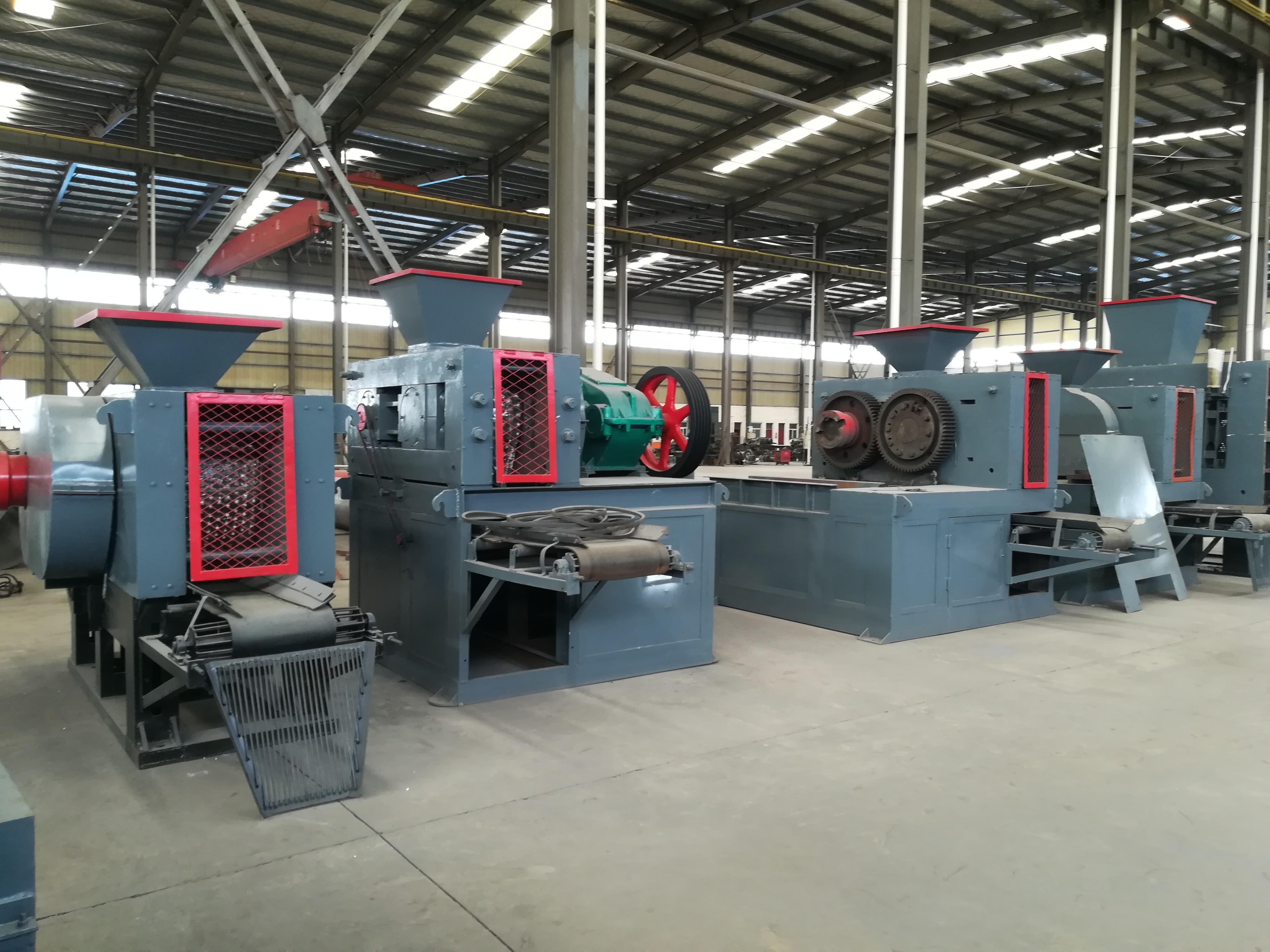

High pressure fluorite limestone mineral powder briquette making machine 0

High pressure fluorite limestone mineral powder briquette making machine



Brief introduction:

The mineral powder briquette machine specialize in pressing various mineral powder material, like pulverized lime, iron ore powder,chromite powder,manganese ore powder, etc. Due to the double roller forced squeezing, The output briquette have the features of high density, high strength, high hardness, Roller material adopts 65Mn 9Cr2Mo and wear-resistant alloy material
Zhengzhou Berno machinery staff have mastered lots of practical experience research, study and numerous testing, We are willing to instruct you right models to meet production line according to different materials
This mineral powder briquetting machine also applies on the industries such as refractory material, electric power plant, metallurgy, chemical industry, energy, transportation and heating, etc.

High pressure fluorite limestone mineral powder briquette making machine 1



Application:

The briquette making machine is mainly used to press mill scale, iron powder, ores powder, oxide iron skin, slag and refractory matter and all other powder materials into different shapes of briquette.

High pressure fluorite limestone mineral powder briquette making machine 2



Rollers materials

1.Rollers' raw material can be 65 Mn, 9Cr 2Mn, stainless steel or other raw materials according to customers' requirements.
2.Rollers' shape and dimension is designed according to customers' requirements
High pressure fluorite limestone mineral powder briquette making machine 3
Briquette machine production line
General the complete briquettes production line include material Dryer --- Hopper --- Crusher--- Mixer--- Roller Briquette Machine--- Briquette--- Briquette Dryers.
Our engineers will design process flowchart and choose suitable machines according customers actual demand and working place.
High pressure fluorite limestone mineral powder briquette making machine 4


Main technical parameters:

Model reducer ratio roller size(MM) main shaft speed(r/min) motor power(kw) capacity(t/h) pressure type

KF500-370-280

ZQ500 40.17 370*280 8-10 11 6.5-7.5
KF650-500-300 ZQ650 40.17 500*300 8-10 37 8.5-9.5
KF850-650*300 ZQ850 40.17 650**300 8-10 55 10.5-11.5
KF1250-750-350 ZS1250 50 750*350 7-9 110 13.5-14.0
KF1450-850-350 ZS1250 50 750*350 7-9 132 15.0-16.0
KF1560-1000-350 ZSY1560 50 1000*350 7-9 150 17.0-20.0

Remarks: 1. Above capacity is based on material specific gravity 2, brique4tte size dia50*33mm

                 2.Roller material is 65Mn, high pchrome alloy and 9Cr2Mo.

                 3. According to differenat materials adjust machine parameter to meet customers' production.



High pressure fluorite limestone mineral powder briquette making machine 5

FAQ
Q: How do I choose a suitable hydraulic briquette machine for the project?
A: In your first inquiry, please offer us information about your raw materials, its size, moisture, and the shape of final briquettes you required, also tell the output per hour you required
Q: What is the binder in process?
A: It depends on the properties of your raw materials, and also usage of briquettes. We have some formula of binders for some of raw materials, we will share them to our customers.
Q: How about the hardness of briquette products?
A: Our hydraulic briquette machine adopts 9Cr2 forging steel to make rollers, with a hydraulic station, the whole pressure is very high, the briquettes will not be broken when it drops down from 5 meters high.
Q: After ordered a hydraulic briquette machine, how do we solve the equipment installing?
A: For the single hydraulic briquette machine, we will offer you a user manual, customer can install and test according to the operation introduction; For a complete briquette machine production line, we will send our engineer to your workshop to assist you to install and test the briquette machine until working well
Q : What's the delivery time after you pay the deposit?
A: We will clear delivery time in the contract, Single hydraulic briquette machine will be delivered within 10-15 working days after receipting the pre-payment. Complete production line will be delivered within 25-40 working days after receipting the pre-payment.



Packing &Shipping

♥Standard export packing
♥The loading port is Qingdao Port, also can be requested by customer. We have superior cargo agent to arrange the sea shipment for each client, competitive price, secure transportation.

♥All products will be processed to be rustproof and moisture proof before delivery.
♥20GP container or 40GP container Equipment is packed with plastic wrap or steel case, depends on machine weight.
♥Motor is packed with steel case or wooden case.
♥Control panel is packed with wooden case or Plastic packaging
♥Loading container in factory.



High pressure fluorite limestone mineral powder briquette making machine 6



Company information

Zhengzhou Berno Machinery Co., Ltd. is a high-tech Company which professional manufacturing the production of briquette production line equipment and mining machinery. After 30years of development, Sinolion is now setting up branches, integrating engineering, trade, research and development, Zhengzhou Berno have modern standard workshops, as well as advanced technology and testing equipment. Extensively cooperating with coal research institutions and other research departments, Now, 10,000-300,000 tons briquette production lines are renowned in domestic and foreign markets, Our products have been exported to Indonesia, Kazakhstan, Vietnam, North Korea, Egypt and other countries and regions. It is ideal equipment for briquetting mine power in the world market. We provides space planning and design, equipment installation and commissioning support.



Related supporting equipment

biner mixer  pictures
Binder mixer is often used in stirring powder binder into water, and make them be fully mixed to form one kind of compound additive. It offen works in complete briquette production line.  High pressure fluorite limestone mineral powder briquette making machine 7
wheel grinding mixer pictures Wheel grinding mixer introduction
High pressure fluorite limestone mineral powder briquette making machine 8 Wheel grinding mixer is prodessional mixer for sticky material.It has two rollers and internal & exterior scrapers which make the adhesive material well mixed in short time, when it is agitated and crushed. According to the different proportions of the material, each time adds some material and agitated 3-5 minutes. The machine has automatic discharge device, thus it will be greatly save the labors.

High pressure fluorite limestone mineral powder briquette making machine 9

High pressure fluorite limestone mineral powder briquette making machine 10

High pressure fluorite limestone mineral powder briquette making machine 11

High pressure fluorite limestone mineral powder briquette making machine 12



High pressure fluorite limestone mineral powder briquette making machine 13
