Wheat straw, barley straw and Alfalfa straw alloy propeller sawdust briquetting screw making machine
1 set
MOQ
2000-9800$/set
Price
Wheat straw, barley straw and Alfalfa straw alloy propeller sawdust briquetting screw making machine
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Henan Province, China
Brand Name: Berno
Certification: CE, SGS
Model Number: ZBJ50, ZBJ60, ZBJ80, ZBJ90
Payment & Shipping Terms
Packaging Details: wooden case, standard container
Delivery Time: 7 working days after getting advanced payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30sets per month
Specifications
Features: Extruding Type,Low Energy Consumption,low Noise
Voltage: 380V,380v/400v/415v,415V
Condition: New
Warranty: 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Maintenance And Repair Service,Field Installation
Weight: 500-1200kg
Dimension(l*w*h): According To Different Type
Application: Biomass Fuel,final Product As Fuel,make Sawdust Briquettes Or Make Charcoal,agriculture
Raw Material: Sawdust,rice Husk,straw,coconut Shell
Color: Customer Required
Name: Briquette Machine
Capacity: As The Need Of Customers
Usage: Make Biomass Briquettes
Keyword: Sawdust Briquettes Charcoal Machine,biomass Briquette Machine,BBQ Biomass Wood Sawdust Rice Husk Charcoal Briquettes Machine,sawdust Briquetting Press,agro Waste Briquette Making Machine
Type: Biomass Fule Briquetting Machine,sawdust Briquette Making Machine,automatic Biomass Briquette Making Machine,ZBJ-50
Production Capacity: 150kg/h,260-300Kg/Hour,150-200kg/h,1-6t/h
Product Name: Briquette Forming Machine,sawdust Briquette Charcoal Making Machine
Power(w): 22kw,18.5-22kw
Briquette Shape: Square,hexagonal Sticks With Holes Inside
Product Description

Wheat straw, barley straw and Alfalfa straw alloy propeller sawdust briquetting screw making machine



Product Description


Sawdust charcoal making machine is belong to environmental protection machinery. High production and low loss, using the raw material of wood sawdust, peanut shell,corn cob, baggage, cotton stalk, corn stalks, rice hull, miscellaneous branches etc shattered into granular.
Within 3 to 5 mm by sawdust crusher; then the dryer dry material till water content is within 12%; through high temperature, high pressure of molding (do not add any additives) of the bar machine to the process of carbonization of coking furnace, then finished product of charcoal formed.

Wheat straw, barley straw and Alfalfa straw alloy propeller sawdust briquetting screw making machine 0

Product features

1. Widespread and common raw materials
2. Wide application:
3. High density, small volume,good flammability;
4. Energy saving,no smoke,no additive,environment friendly.

Product Parameters
Model ZBJ-50 ZBJ-60 ZBJ-70 ZBJ-80
Motor power 15kw 15kw18.5kw 18.5kw 22kw
capacity  180-200kg/h  200-250kg/h  250-350kg/h 300-400kg/h
dimension  1.68*0.72*1.25m 1.68*0.72*1.25m 1.86*0.72*1.32m 1.96*0.72*1.32m
briquette size 50mm 60mm 70mm 80mm



Our Advantages


1.No binder is needed during processing ,and so no pollution when it burns.
2.We have added 5-6 grooves in the machine to discharge the vapors and help increase density. Moreover,we add a wedding-ring in the machine ,which also helps to increase the density of wood sticks.
3.Wood sticks is easy for carrying and packaging .We have also design trolleys to help load the sticks.
4.The wood charcoal briquette making machine can be linked to the drier to form an automatic line .This is from our design with patent rights. It can save labour cost.

Wheat straw, barley straw and Alfalfa straw alloy propeller sawdust briquetting screw making machine 1

How to repair the screw propeller of the biomass briquette machine?

R angle treatment on the root of the screw prepeller head, the surface of the screw propeller head should be smooth, no cracks and no pores. This minimizes the frictional resistance in briquettes production. In general, the screw head should be replaced after 1-2 days briquette machine working, no matter the wear is serious or not.



Flow chart

Wheat straw, barley straw and Alfalfa straw alloy propeller sawdust briquetting screw making machine 2

Application
Wheat straw, barley straw and Alfalfa straw alloy propeller sawdust briquetting screw making machine 3

Wheat straw, barley straw and Alfalfa straw alloy propeller sawdust briquetting screw making machine 4

Company Profile


Zhengzhou Berno Machinery Co., Ltd. is a high-tech Company which professional manufacturing the production of briquette production line equipment and mining machinery.
After 30years of development, Berno is now setting up branches, integrating engineering, trade, research and development,
Zhengzhou Berno have modern standard workshops, as well as advanced technology and testing equipment. Extensively cooperating with coal research institutions and other research departments, Now, 10,000-300,000 tons briquette production lines are renowned in domestic and foreign markets, Our products have been exported to Indonesia, Kazakhstan, Vietnam, North Korea, Egypt and other countries and regions. It is ideal equipment for briquetting mine power in the world market.
We provides space planning and design, equipment installation and commissioning support.

FAQ

Q1: How can i get the after-service?
A: We provide one year guarantee and lifelong maintenance.
We will send you the spare parts by free if the problems caused by us.
Q2: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory. Our factory located Xingyang city, near Xinzheng airport.
Q3:Are you a factory or trade company?
A:We are manufacturer with own factory for 10 years, export proportion 50~60%.

Q4 :Is your price competitive?
A: Only good quality machine we supply. Surely we will give you best factory price based on superior product and service.

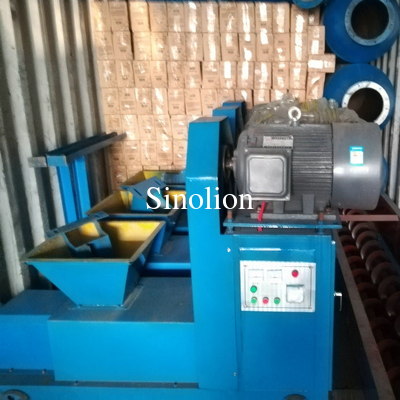

Packing &shipping details

Equipment must to be rustproof and moisture proof before delivery.

20GP container or 40GP container
Equipment is packed with plastic wrap or steel case, depends on machine weight.
Motro is packed with steel case or wooden case. Control panel is packed with steel case.
Loading container in factory.

Delivery Details : 15-25 days after confirming order,detail delivery date should be decided according to production season and order quantity.

Wheat straw, barley straw and Alfalfa straw alloy propeller sawdust briquetting screw making machine 5



Wheat straw, barley straw and Alfalfa straw alloy propeller sawdust briquetting screw making machine 6
