Smallest model 5-10Tons Gold Ore Processing Gold Washing Machine Trommel Screen Machine

Smallest model 5-10Tons Gold Ore Processing Gold Washing Machine Trommel Screen Machine

Introduction of placer gold trommel screen

Placer gold trommel is a movable drum sieve gold equipment on land, it has a compact structure, strong integrity,

light weight, large handling capacity, simple operation, reliable work, and easy maintenance, easy to move and so on.Th e quipment is mainly used in dry land beach, river is a gravity processing equipment is mainly used in sand gold ore and the recovery of monomer gold in the vein.

The structure of placer gold trommel screen

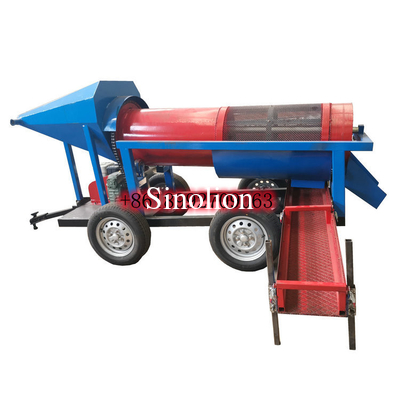

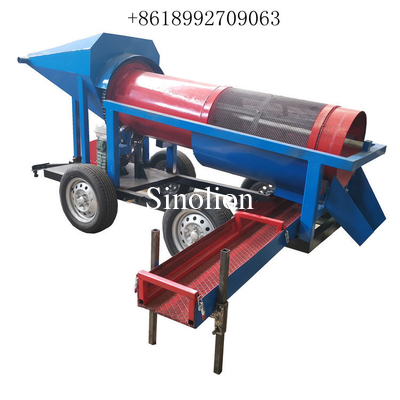

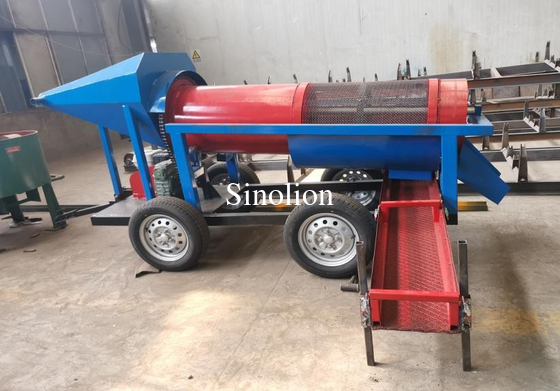

Placer gold trommel is composed of feeding hopper, screen drum, chassis, wheel, transmission device (optional parts: gasoline engine and belt conveyor). It overcomes the problem of screen blocking of various vibrating screens when screening wet materials. Increased production and reliability of the screening system. The maximum product under the sieve is 100mm, the middle is 10-50mm, and the finest is up to 3mm. The product is well received by the vast majority of customers at home and abroad.

Operation

First connect the pipe to the spray nozzle, then open the pump to check the operation of the machine and equipment.

Second, check the operation of the gasoline engine, manually pull the gasoline engine, running for a few minutes, to see whether it is normal.

Then, start feeding, the material through the grate slowly into the drum screen, so that the big material is screened out, small material into the drum screen. Start the spray nozzle, pump will smoke coming from a distance, the water to spray the mouth, and then at a certain pressure, the water to the spray pipe, water wash away the mud, the supplies of greater than 5 mm material emerged from behind the barrel body, less than 5 mm material after drum sieve screening, slowly into the sneak gold, gold above the grass with a lot of gold.

Driving method:

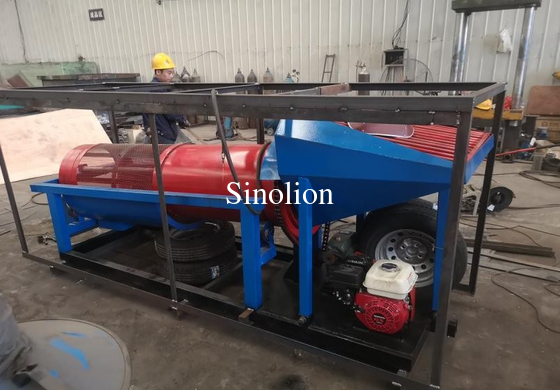

There are three ways to start the drum screen, one is gasoline engine, one is motor start, and one is diesel engine. Gasoline engine noise is low, customers generally choose gasoline engine.

Gasoline engines are quieter than diesel engines. You don't want to pull the gasoline engine by hand. We can change it to an electric one for you. It can also be driven by a motor or a diesel engine.

Main technical parameters:

Frequent questions

Q1: How long is the delivery time?

A: It will takes about 7-10 days for delivery after pre-payment.

Q2: What is the driving force?

A: Japan Honda Gasoline Engine. The Honda Gasoline Engine could supply Environmental Protection Certificate.

Q3: How long is the warranty period A: One year

Q4: Do you have a certificate of origin, EU certification, etc. A: yes, of course

Q5: How many wheels does it have?

A: There are two and four rounds, according to customer requirements

Shipping & packing
