Payment & Shipping Terms:
|After-sales Service Provided:
|Engineers Available To Service Machinery Overseas
|Mining Rotary Rock Equipment,PE400x600 Jaw Crusher With ISO CE,Stone Jaw Crushers Plant/mining Equipment/stone Crusher Machine,China Henan Jaw Crusher Machine Professional Mining Equipment For Gold
|Professional Engineer Assigned,Engineer's Guide
|Spare Parts Supply:
|Will Supply Any Time
|Under Engineer's Guide,engineer Guide On Site,under The Guidance Of Engineer,Professional Engineers Assigned
|The Machines Classification:
|Stone Crushing Machine
|Rock Crusher,jaw Crusher
|Max Feeding Size:

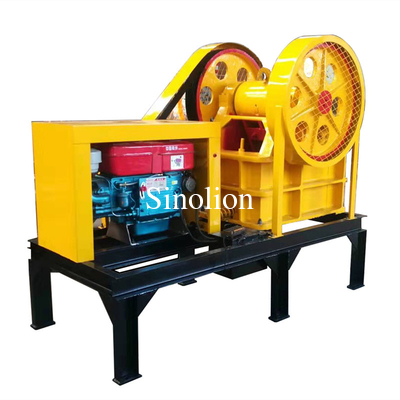

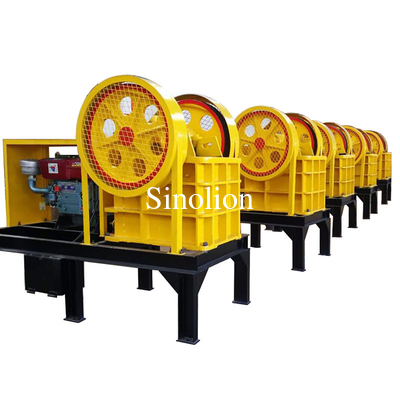

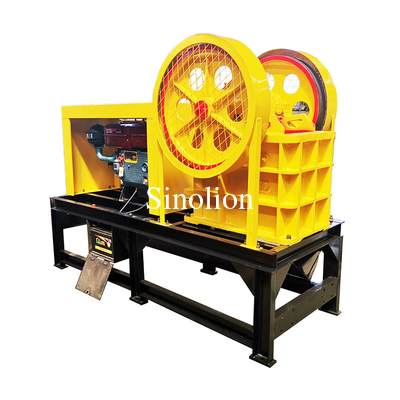

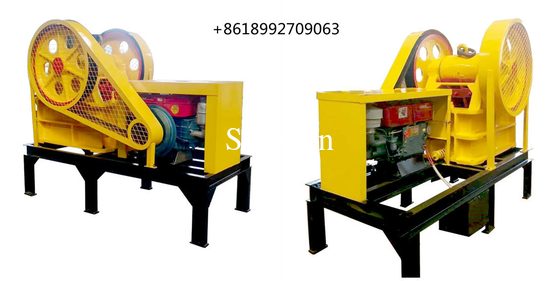

High Quality Diesel Type Mobile Mini Small Gold Ore Limestone Stone Jaw Crusher Machine Price
This series crusher, has features of big crushing ratio, uniform discharging size, simple structure, reliable performance, easy maintenance, economic operation cost, etc. It is mainly used in mining, metallurgy, building material, highway, railway, water conservancy and chemical industry, etc. Crushing various material with resistance not more than 320Mpa.
3.easy to maintain
Application of Jaw Crusher:
It specializes in producing Jaw Crusher which is widely applied to crush high hardness, mid hardness and soft rocks
and ores such as slag, construction materials, marble, etc. The pressure resistance strength is under 200Mpa, that is,
suitable for primary crush. Each model has a large feed opening for its size and an ideal nip angle, giving smooth material flow,
high reduction efficiency and high capacity. Their simple design conceals many advanced features that give easy operation,
simple maintenance, long life and a low cost per ton.
Side Plates, Toggle Mechanism, Fly Wheels and Springs.
Specifications of Jaw Crusher:
The jaw crusher is mainly composed of a frame, an eccentric shaft, a large belt pulley, a flywheel, a side guard, a toggle, a toggle back seat, a clearance screw, a return spring, a fixed jaw and a movable jaw. The crushing method of jaw crusher is curved extrusion type. When working, the motor drives the belt and pulley to move the movable jaw up and down through the eccentric shaft. When the movable jaw rises, the angle between the toggle plate and the movable jaw becomes larger, thereby pushing the movable jaw plate closer to the fixed jaw plate, and the material passes through the two jaws. The squeezing, rubbing, and grinding between the plates realize multiple crushing; when the movable jaw moves down, the angle between the toggle plate and the movable jaw becomes smaller, and the movable jaw leaves the fixed jaw under the action of the pull rod and spring, and the material has been crushed under the action of gravity, it can be discharged freely through the discharge port at the lower part of the jaw cavity. With the continuous rotation of the motor, the movable jaw is periodically crushed and discharged to realize mass production.
