Customized Construction Waste Sorting Line with Garbage Sorting System Equipment
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Applicable Industries: | Farms, Retail, Construction Works , Energy & Mining | Showroom Location: | Canada, United States, Australia |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Gear | Condition: | New |
| Type: | Circular | Application: | Chemicals, MSW Trommel Screen Solid Waste |
| Voltage: | 220v /380v /415v ... | Dimension(L*W*H): | 4.3*1.9*2.45m |
| Weight: | 2200 KG | Warranty: | 1 Year, 1 Year |
| Product Name: | City Garbage Sorting Machine | Color: | Customer Requirements |
Products Description
MSW SORTING SYSTEMS
Today, over 2 billion metric tons of municipal solid waste (MSW) are produced annually worldwide and is rapidly increasing. MSW consists of everyday post-consumer waste produced by households, and depending on the regional waste structure, may include waste from commercial facilities such as businesses and public institutions. Our sensor-based sorting technology has revolutionized how waste management companies and material recovery facilities can process municipal solid waste more effectively, thus enabling a circular economy. We deliver world-class MSW sorting systems that efficiently separate plastics, paper, glass, organics, inert materials and bulky items from complex mixed waste streams.

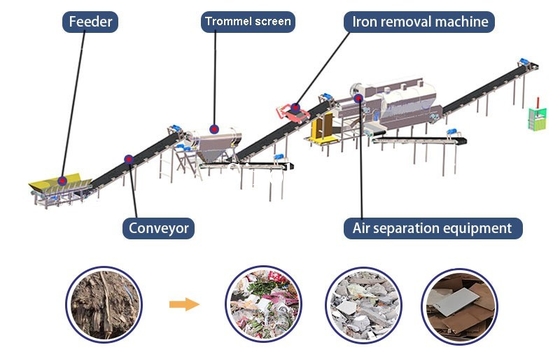

The whole trash separator system usually includes plate feeder, uniform materials spreader, rotatory screening machine, winnowing machine, magnetic separation machine, and manual sorting platform and so on. The largest capacity of this system is about 50 ton per day. Because the trash sorting facility asks for a fairly large area of working, the clients need to make sure they have enough space to install the waste recycling plant. And we strongly suggest a workshop rather a large open area to guarantee the environment of the surroundings.
How to Sort Trash – Trash Sorting Process
1.All the trash collected in the waste transfer station will be transported into the workshop and unloaded onto the plate feeder. The feeder transits them to uniform materials spreader. The spreader is installed at the rear end of the feeder. It can spread those garbage uniformly on the belt conveyor. 2.The conveyor transits the trash onto the manual sorting platform. Large pieces of trashes, like the quilt, big wood branches, and hazardous waste will be picked out by manpower. 3.The rest trash will go to rotatory screening machine. If needed, the plastic bags in the trash can be broken by the bag breaker to make sure the following procedures running smoothly before they going to the screening machine. 4.And then the rotatory screening machine screens the trashes through bores which have a diameter of 50 mm. As a result, it can screen oversized materials and undersized waste. 5.Undersized organic wastes (diameter<50 mm) are mostly organics, so they will first go to a magnetic separator to get the iron matters out and then be collected, packed and transported out. Oversized materials will firstly go to magnetic separation machine. Metal materials, like iron cans or tins, will be separated out. The rest oversized materials will be sent to comprehensive winnowing machine. It can sort light plastic wastes, heavy materials, and other wastes clearly. 6.Light plastic waste will be sent to the manual sorting platform again and workers will pick out those impurities in the plastic. Finally, the plastic waste will be sent to the packaging machine. Heavy materials like hard plastic waste, fabrics, rubber products and large organic wastes will also be packed and then wait for the subsequent processing.
PACKING & DELIVERY
COMPANY INTRODUCTION
Zhengzhou Sinolion Equipment Co.. Ltd., a Chinese high-tech company, which is professional in manufacturing trommel sieving equipment, also one of the earliest Chinese enterprises to enter this field. After 30 years of development, Sinolion has been now setting up branches,integrating engineering,trade research and development, production and sales, developed to be a large-scale enterprise. Sinolion has modern standard workshops,as well as advanced technology and testing equipment. Now, sieving equipment are renowned in domestic and foreign markets,and Sinolion products have been exported to Serbia, United Kingdom, Turkey, Malaysia, Indonesia, Kazakhstan, Vietnam, Egypt, Mexico, Ghana, Tanzania, Nigeria, South Africa, Chile, Bolivia, Canada and other countries. Sinolion provides space planning and design,equipment installation and commissioning support under holding the concept of "To survive with quality and develop with credit". Sinolion strives to build a brand enterprise with satisfaction of customers. Let customers buy reassured and use comfortably! Widely cooperate with relevant institutions to continuously improve product value and performance.For users who ask us to design, manufacture and install products, will provide satisfactory products with the latest technology, reliable quality, favorable price and perfect service. We warmly welcome cooperations with friends from all around the world!
FAQ
Q:What materials can the equipment screen?
A:Our mobile trommel screen can screen compost, topsoil,sand, gravel, cow and sheep manure etc.It can be used in many scenarios.
Q:How is the equipment transported?
MTS0818 uses wooden box packaging for transportation.Before shipment,it is package in wooden boxes and moisture-proof and rustproof treatmentis performed to prevent rustand corrosion of the equipment during transportation.MTS1022 and MTS1230 require a 20GP container for transportation，A 40HQ can hold 2 set MTS1230s and a 40HQ container can hold 3 set MTS1022s. MTS1550 requires one 40HQ container for transportation.
Q:What kind of power can the equipment provide?
A;Currently, our equipment supports motor type，diesel engine type and diesel generator set type. Three types are optional to meet your various needs.
Q:What are the biggest highlights of the equipment?
First, our side conveyor belt uses a herringbone belt which can prevent materials from slipping during conveying materials. The conveyor belt thickness is 11mm for better quality. Secondly，the cleaning brushes use nylon material which is very wear-resistant.According to different models.the brush diameter is between 200-350mm.At the same time, the cleaning brushes can prevent sticky materials from blocking the sieve holes.
Q: Can you give me a solution and quotation? A: Absolutely sure, we can provide accurate solution and quotation, please give us background information, including. raw material, the capacity, max. input size, the output size, the usage of final products, etc.
A:For a small single equipment, we offer you user manual, customer wll install and commissioning as operating introduction; For a complete production line, we will send our engineer to your workplace to help you install and commissioning until machines work normally. Sinolion has several experienced technicians with passports ready to go for installation, when installation service is needed, the client should pay for technicians' round way air tickets, salary(shall be confirmed before leaving), food and lodging, most importantly to guarantee the technicians' safety.
Q：What's the delivery time after I pay the deposit?
A：We will clear delivery time in slaes contract, Single movable drum sieve often deliveried within 10-15 working days after receipt of the pre-payment. Complete production line will delivery within 25-40 working days after receipt of the pre-payment.
Q：How long of your machine quality guarantee terms ?
A：Quality guarantee time is one year(wearing parts excluded).
