Portable Circular Trommel Fertilizer Screen Machine with 3150*1100*1650MM Dimensions

Portable Circular Trommel Fertilizer Screen Machine with 3150*1100*1650MM Dimensions

Portable Circular Trommel Fertilizer Screen Machine with 3150*1100*1650MM Dimensions
Portable Circular Trommel Fertilizer Screen Machine with 3150*1100*1650MM Dimensions Portable Circular Trommel Fertilizer Screen Machine with 3150*1100*1650MM Dimensions Portable Circular Trommel Fertilizer Screen Machine with 3150*1100*1650MM Dimensions Portable Circular Trommel Fertilizer Screen Machine with 3150*1100*1650MM Dimensions Portable Circular Trommel Fertilizer Screen Machine with 3150*1100*1650MM Dimensions Portable Circular Trommel Fertilizer Screen Machine with 3150*1100*1650MM Dimensions

Large Image :  Portable Circular Trommel Fertilizer Screen Machine with 3150*1100*1650MM Dimensions Get Best Price

Product Details:
Place of Origin: Henan, China
Brand Name: Sinolion
Payment & Shipping Terms:
Price: $4,100.00/sets 1-1 sets
Packaging Details: Standard wooden case packing or standard container shipping, fits for long marine.
Supply Ability: 100 Set/Sets per Month
Detailed Product Description
Applicable Industries: Building Material Shops, Manufacturing Plant, Home Use, Retail, Energy & Mining, Other Showroom Location: Philippines, Morocco, Australia, New Zealand
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Hot Product 2022 Warranty Of Core Components: 1 Year
Core Components: Engine, Bearing, Gearbox, Motor, Gear Condition: New
Type: Circular Application: Material Screening Or Sorting
Voltage: 220V/380V415V Dimension(L*W*H): 3150*1100*1650MM
Weight: 650 KG Warranty: 1 Year
Product Name: Compost Trommel Screen Keyword: Rotary Trommel Screen Compost
Model: MTS0818 Material: Carbon Steel
Function: Screening\separation\sorting\sieving Capacity: 15m³/H
Mesh Size: 2-80MM Color: Green
Installation: Easy Installation Customized: Acceptable
Port: Qingdao/Shanghai/Tianjin/Guangzhou/Dalian

Portable Circular Trommel Fertilizer Screen Machine with 3150*1100*1650MM Dimensions 0
Products Description
Portable Circular Trommel Fertilizer Screen Machine with 3150*1100*1650MM Dimensions 1

About Trommel Screen

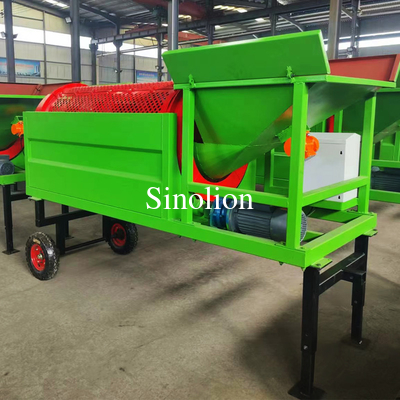

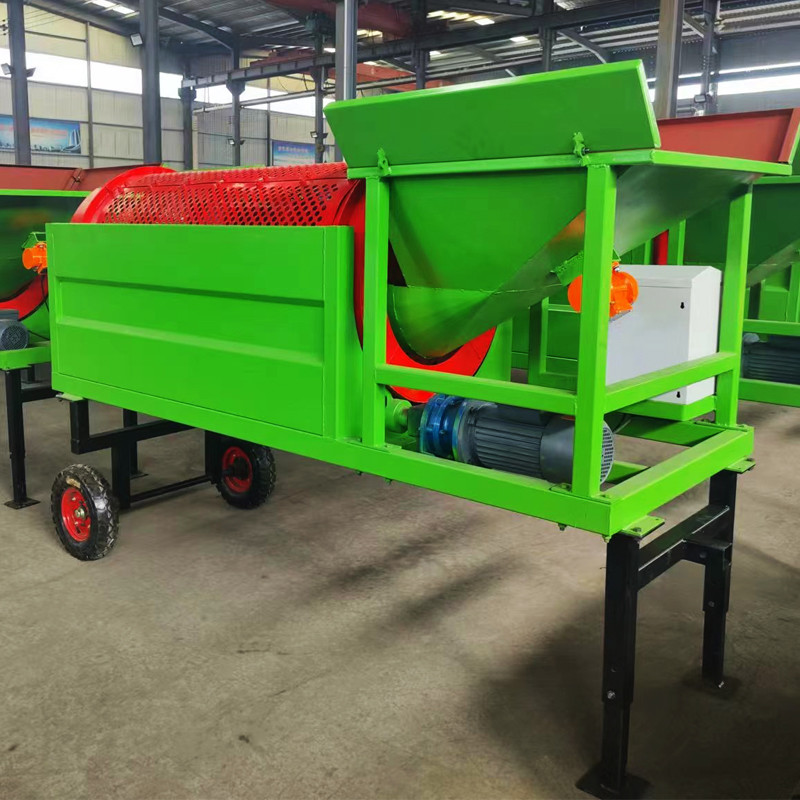

The MTS0818 mobile trommel screen is a portable trommel screen and it’s adopts advanced drum technology. This type of mobile trommel screen mainly components include feed hopper, drum frame, motor reducer, vibration motor and control cabinet, etc. MTS0818 has a new generation of design, more rational route layout, higher screening efficiency, easier operation panel, and more durable material. One year after sell guarantee for core components aims to provided a worry-free purchase experience for you.
ADVANTAGES: • High capacity screen - depending on mesh size and material type • Rotating screen -area of approx 3㎡ (32.29ft2 ) • Quick set-up time - typically 15 minutes • Conveniently Located Control Panel gives finger tip management of all • Variable speed control on trommel drum for maximum efficiency •Traction design for easy mobility •The hopper can be customized and enlarged for convenient loading •Lifting legs to adjust the height of the equipment •Design a frequency conversion control cabinet to adjust the drum speed.
Portable Circular Trommel Fertilizer Screen Machine with 3150*1100*1650MM Dimensions 2

Model
Trommel diameter
(MM)
Trommel length
(MM)
Capacity
(M3/H)
Motor power
(KW)
Weight
(KG)
Dimensions
(L*W*H)(M)
(mm)
(mm)
(m3/h)
(Kg)
(L*W*H)
MTS0818
800
1800
≤15
2.4
650
3.15*1.1*1.65
Application
Portable Circular Trommel Fertilizer Screen Machine with 3150*1100*1650MM Dimensions 3
Discus Your Materials
About Our Design
Portable Circular Trommel Fertilizer Screen Machine with 3150*1100*1650MM Dimensions 4
Discuss your design ideas
PACKING & DELIVERY
Portable Circular Trommel Fertilizer Screen Machine with 3150*1100*1650MM Dimensions 5
OUR SERVICE
Portable Circular Trommel Fertilizer Screen Machine with 3150*1100*1650MM Dimensions 6
COMPANY INTRODUCTION
Portable Circular Trommel Fertilizer Screen Machine with 3150*1100*1650MM Dimensions 7
Zhengzhou Sinolion Equipment Co.. Ltd., a Chinese high-tech company, which is professional in manufacturing trommel sieving equipment, also one of the earliest Chinese enterprises to enter this field. After 30 years of development, Sinolion has been now setting up branches,integrating engineering,trade research and development, production and sales, developed to be a large-scale enterprise. Sinolion has modern standard workshops,as well as advanced technology and testing equipment. Now, sieving equipment are renowned in domestic and foreign markets,and Sinolion products have been exported to Serbia, United Kingdom, Turkey, Malaysia, Indonesia, Kazakhstan, Vietnam, Egypt, Mexico, Ghana, Tanzania, Nigeria, South Africa, Chile, Bolivia, Canada and other countries. Sinolion provides space planning and design,equipment installation and commissioning support under holding the concept of "To survive with quality and develop with credit". Sinolion strives to build a brand enterprise with satisfaction of customers. Let customers buy reassured and use comfortably! Widely cooperate with relevant institutions to continuously improve product value and performance.For users who ask us to design, manufacture and install products, will provide satisfactory products with the latest technology, reliable quality, favorable price and perfect service. We warmly welcome cooperations with friends from all around the world!
Portable Circular Trommel Fertilizer Screen Machine with 3150*1100*1650MM Dimensions 8
Portable Circular Trommel Fertilizer Screen Machine with 3150*1100*1650MM Dimensions 9
Portable Circular Trommel Fertilizer Screen Machine with 3150*1100*1650MM Dimensions 10
FAQ
Q:What materials can the equipment screen?
A:Our mobile trommel screen can screen compost, topsoil,sand, gravel, cow and sheep manure etc.It can be used in many scenarios.

Q:How is the equipment transported?
MTS0818 uses wooden box packaging for transportation.Before shipment,it is package in wooden boxes and moisture-proof and rustproof treatmentis performed to prevent rustand corrosion of the equipment during transportation.MTS1022 and MTS1230 require a 20GP container for transportation,A 40HQ can hold 2 set MTS1230s and a 40HQ container can hold 3 set MTS1022s. MTS1550 requires one 40HQ container for transportation.

Q:What kind of power can the equipment provide?
A;Currently, our equipment supports motor type,diesel engine type and diesel generator set type. Three types are optional to meet your various needs.

Q:What are the biggest highlights of the equipment?
First, our side conveyor belt uses a herringbone belt which can prevent materials from slipping during conveying materials. The conveyor belt thickness is 11mm for better quality. Secondly,the cleaning brushes use nylon material which is very wear-resistant.According to different models.the brush diameter is between 200-350mm.At the same time, the cleaning brushes can prevent sticky materials from blocking the sieve holes.

Q: Can you give me a solution and quotation? A: Absolutely sure, we can provide accurate solution and quotation, please give us background information, including. raw material, the capacity, max. input size, the output size, the usage of final products, etc.

Q: After order equipment how do we slove the equipment installing?
A:For a small single equipment, we offer you user manual, customer wll install and commissioning as operating introduction; For a complete production line, we will send our engineer to your workplace to help you install and commissioning until machines work normally. Sinolion has several experienced technicians with passports ready to go for installation, when installation service is needed, the client should pay for technicians' round way air tickets, salary(shall be confirmed before leaving), food and lodging, most importantly to guarantee the technicians' safety.

Q:What's the delivery time after I pay the deposit?
A:We will clear delivery time in slaes contract, Single movable drum sieve often deliveried within 10-15 working days after receipt of the pre-payment. Complete production line will delivery within 25-40 working days after receipt of the pre-payment.

Q:How long of your machine quality guarantee terms ?
A:Quality guarantee time is one year(wearing parts excluded).
