High Capacity Rotary Gold Trommel Screen for Sorting Sieving and Separation 0.4-4.5m3

High Capacity Rotary Gold Trommel Screen for Sorting Sieving and Separation 0.4-4.5m3

High Capacity Rotary Gold Trommel Screen for Sorting Sieving and Separation 0.4-4.5m3
High Capacity Rotary Gold Trommel Screen for Sorting Sieving and Separation 0.4-4.5m3 High Capacity Rotary Gold Trommel Screen for Sorting Sieving and Separation 0.4-4.5m3 High Capacity Rotary Gold Trommel Screen for Sorting Sieving and Separation 0.4-4.5m3 High Capacity Rotary Gold Trommel Screen for Sorting Sieving and Separation 0.4-4.5m3 High Capacity Rotary Gold Trommel Screen for Sorting Sieving and Separation 0.4-4.5m3 High Capacity Rotary Gold Trommel Screen for Sorting Sieving and Separation 0.4-4.5m3

Large Image :  High Capacity Rotary Gold Trommel Screen for Sorting Sieving and Separation 0.4-4.5m3 Get Best Price

Product Details:
Place of Origin: Henan, China
Brand Name: Sinolion
Payment & Shipping Terms:
Price: $4,100.00 - $28,750.00/pieces
Packaging Details: Wooden box packing or Container shipping
Supply Ability: 100 Piece/Pieces per Month
Detailed Product Description
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert Showroom Location: None
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Ordinary Product Warranty Of Core Components: 1 Year
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump Condition: New
Type: Circular Application: Compost,topsoil,gravel,sand
Voltage: Customizable Dimension(L*W*H): As Per Order
Weight: 6200 KG Warranty: 1 Year
Product Name: Trommel Screen Keyword: Compost Trommel Screen
Function: Screening\separation\sorting\sieving Power: 2.4kw-50kw
Cleaning System: With Bristles Capacity: 0.4-4.5(m3)
Usage: Topsoil/compost/wood Drum Diameter: 1.8-5m
Color: Customizable Port: Qingdao Shanghai

High Capacity Rotary Gold Trommel Screen for Sorting Sieving and Separation 0.4-4.5m3 0

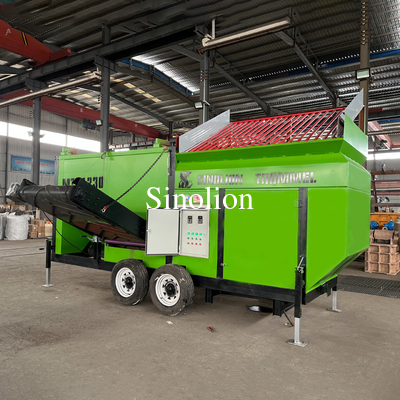

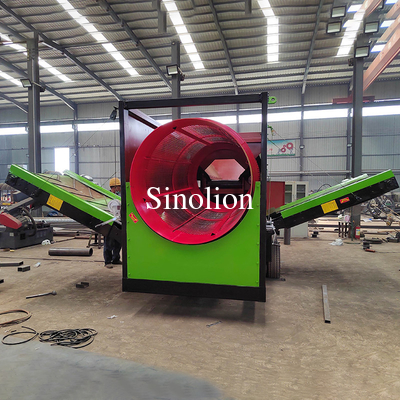

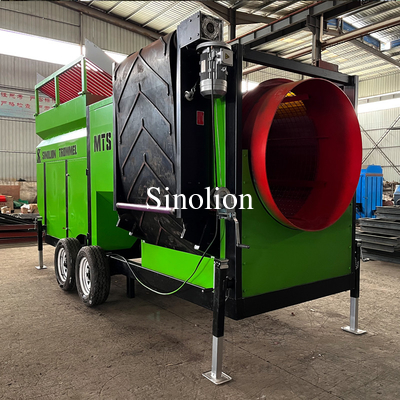

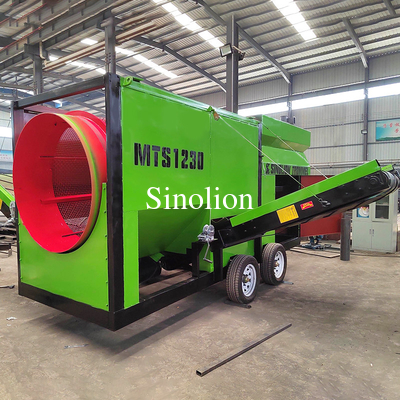

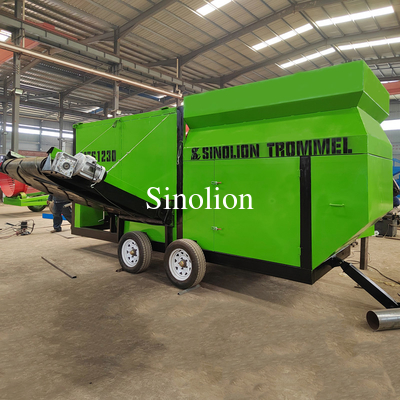

Mobile Trommel Screen is an advanced mobile screening equipment capable of processing up to 150 cubic meters per hour. This portable trommel screen is comprised of a feed belt conveyor, two side discharge conveyors, a rotating drum, cleaning brushes, and a frequency control cabinet. With its cutting-edge design and functionality, the SINOLION mobile trommel screen ensures efficient and seamless screening operations.
SINOLION Mobile trommel screening is a cost-effective and efficient equipment of separating various materials, including compost, sand, gravel, coal, sawdust, and topsoil. This versatile screening equipment is widely utilized for the purpose of segregating different materials based on their size and composition.
Application
High Capacity Rotary Gold Trommel Screen for Sorting Sieving and Separation 0.4-4.5m3 1
High Capacity Rotary Gold Trommel Screen for Sorting Sieving and Separation 0.4-4.5m3 2

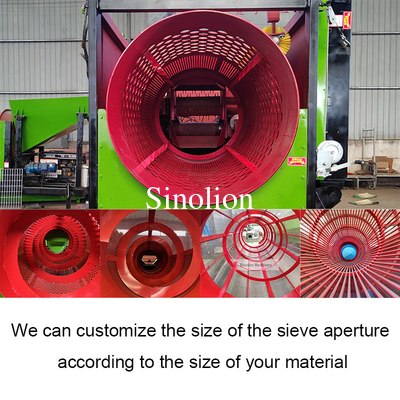

We offer a selection of two premium-quality mesh options for the mobile trommel screen, featuring a convenient screw and nut fastening method for effortless mesh replacement. The steel plate thickness and mesh size can be customized according to specific requirements, allowing for versatility and adaptability in screening various materials.
Discus Your Materials
Our machines
High Capacity Rotary Gold Trommel Screen for Sorting Sieving and Separation 0.4-4.5m3 3
You choose the corresponding machine based on your own materials and hourly processing capacity

Model
Trommel diameter
(mm)
Trommel length
(mm)
Capacity
(m3/h)
Motor power(KW)
Weight
(kg)
Dimensions
(L*W*H)
(m)
(mm)
(mm)
(m3/h)
(Kg)
(L*W*H)
MTS0818
800
1800
≤15
2.4
650
3.15*1.1*1.65
MTS1022
1000
2200
≤30
8.2
2750
4.3*1.9*2.45
MTS1230
1200
3000
≤60
10.6
3210
5.4*2.1*2.7
MTS1550
1500
5000
≤90
20
7900
9.4*2.2*2.9
MTS2050
2000
5000
≤150
33.2
9300
10*2.9*3.95
About Our Design
High Capacity Rotary Gold Trommel Screen for Sorting Sieving and Separation 0.4-4.5m3 4
Discuss your design ideas
One stop shopping
High Capacity Rotary Gold Trommel Screen for Sorting Sieving and Separation 0.4-4.5m3 5
We provide comprehensive assistance in the procurement process of mobile trommel screening equipment, along with the necessary accompanying equipment such as forklifts, pickup trucks, and material handling conveyors. Our company services encompass guiding customers through the entire purchasing process and ensuring customers have access to the required auxiliary machinery.
PACKING & DELIVERY
High Capacity Rotary Gold Trommel Screen for Sorting Sieving and Separation 0.4-4.5m3 6
OUR SERVICE
High Capacity Rotary Gold Trommel Screen for Sorting Sieving and Separation 0.4-4.5m3 7
COMPANY INTRODUCTION
High Capacity Rotary Gold Trommel Screen for Sorting Sieving and Separation 0.4-4.5m3 8
Zhengzhou Sinolion Equipment Co.. Ltd., a Chinese high-tech company, which is professional in manufacturing trommel sieving equipment, also one of the earliest Chinese enterprises to enter this field. After 30 years of development, Sinolion has been now setting up branches,integrating engineering,trade research and development, production and sales, developed to be a large-scale enterprise. Sinolion has modern standard workshops,as well as advanced technology and testing equipment. Now, sieving equipment are renowned in domestic and foreign markets,and Sinolion products have been exported to Serbia, United Kingdom, Turkey, Malaysia, Indonesia, Kazakhstan, Vietnam, Egypt, Mexico, Ghana, Tanzania, Nigeria, South Africa, Chile, Bolivia, Canada and other countries. Sinolion provides space planning and design,equipment installation and commissioning support under holding the concept of "To survive with quality and develop with credit". Sinolion strives to build a brand enterprise with satisfaction of customers. Let customers buy reassured and use comfortably! Widely cooperate with relevant institutions to continuously improve product value and performance.For users who ask us to design, manufacture and install products, will provide satisfactory products with the latest technology, reliable quality, favorable price and perfect service. We warmly welcome cooperations with friends from all around the world!
High Capacity Rotary Gold Trommel Screen for Sorting Sieving and Separation 0.4-4.5m3 9
High Capacity Rotary Gold Trommel Screen for Sorting Sieving and Separation 0.4-4.5m3 10
High Capacity Rotary Gold Trommel Screen for Sorting Sieving and Separation 0.4-4.5m3 11
FAQ
Q:What materials can the equipment screen?
A:Our mobile trommel screen can screen compost, topsoil,sand, gravel, cow and sheep manure etc.It can be used in many scenarios.

Q:How is the equipment transported?
MTS0818 uses wooden box packaging for transportation.Before shipment,it is package in wooden boxes and moisture-proof and rustproof treatmentis performed to prevent rustand corrosion of the equipment during transportation.MTS1022 and MTS1230 require a 20GP container for transportation,A 40HQ can hold 2 set MTS1230s and a 40HQ container can hold 3 set MTS1022s. MTS1550 requires one 40HQ container for transportation.

Q:What kind of power can the equipment provide?
A;Currently, our equipment supports motor type,diesel engine type and diesel generator set type. Three types are optional to meet your various needs.

Q:What are the biggest highlights of the equipment?
First, our side conveyor belt uses a herringbone belt which can prevent materials from slipping during conveying materials. The conveyor belt thickness is 11mm for better quality. Secondly,the cleaning brushes use nylon material which is very wear-resistant.According to different models.the brush diameter is between 200-350mm.At the same time, the cleaning brushes can prevent sticky materials from blocking the sieve holes.

Q: Can you give me a solution and quotation? A: Absolutely sure, we can provide accurate solution and quotation, please give us background information, including. raw material, the capacity, max. input size, the output size, the usage of final products, etc.

Q: After order equipment how do we slove the equipment installing?
A:For a small single equipment, we offer you user manual, customer wll install and commissioning as operating introduction; For a complete production line, we will send our engineer to your workplace to help you install and commissioning until machines work normally. Sinolion has several experienced technicians with passports ready to go for installation, when installation service is needed, the client should pay for technicians' round way air tickets, salary(shall be confirmed before leaving), food and lodging, most importantly to guarantee the technicians' safety.

Q:What's the delivery time after I pay the deposit?
A:We will clear delivery time in slaes contract, Single movable drum sieve often deliveried within 10-15 working days after receipt of the pre-payment. Complete production line will delivery within 25-40 working days after receipt of the pre-payment.

Q:How long of your machine quality guarantee terms ?
A:Quality guarantee time is one year(wearing parts excluded).
