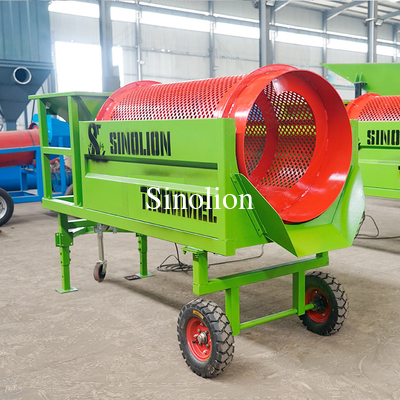

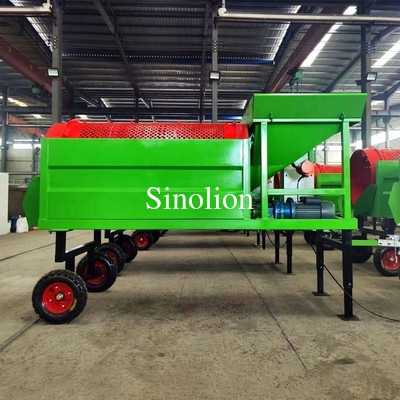

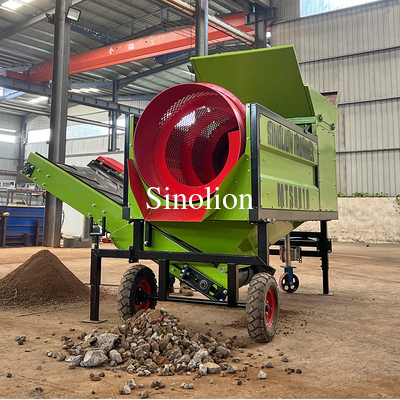

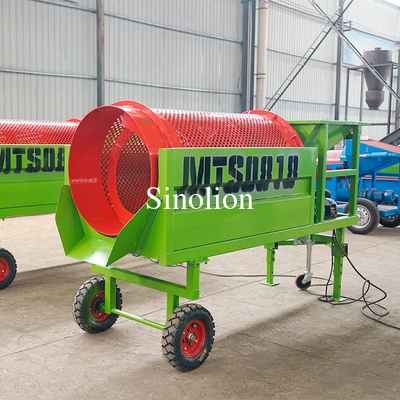

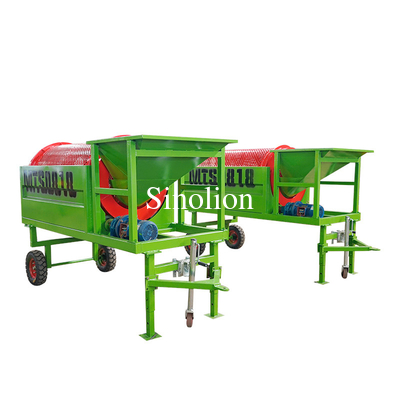

Food Processing Mobile Compost Aggregate Screening Equipment with 3.15*1.1*1.65m Size
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Food Shop, Printing Shops, Energy & Mining, Food & Beverage Shops, Other | Showroom Location: | Canada, United States, Australia |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Hot Product 2019 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Gear | Condition: | New |
| Type: | Circular | Application: | Food Processing |
| Voltage: | 220V/380V/415V/480V | Dimension(L*W*H): | 3.15*1.1*1.65m |
| Weight: | 650 KG | Warranty: | 1year |
| Port: | Qingdao Port |
Products Description
About Trommel Screen
The MTS0818 mobile trommel screen adopts advanced drum technology, and its main components include feed hopper, drum frame, motor, reducer, vibration motor and control system, etc. The drum frame is made of strong material, which can withstand large vibration and shock, while guaranteeing the stability and precision of the screening process. The motor and reducer provide strong power support, so that the materials can be screened effectively on the screen.
ADVANTAGES: • High capacity screen - depending on mesh size and material type • Rotating screen -area of approx 3㎡ （32.29ft2 ） • Quick set-up time - typically 15 minutes • Conveniently Located Control Panel gives finger tip management of all • Variable speed control on trommel drum for maximum efficiency •Traction design for easy mobility •The hopper can be customized and enlarged for convenient loading •Lifting legs to adjust the height of the equipment •Design a frequency conversion control cabinet to adjust the drum speed.
Model | Trommel diameter (mm) | Trommel length (mm) | Capacity (m3/h) | Motor power（KW） | Weight （kg） | Dimensions (L*W*H) |
(mm) | (mm) | (m3/h) | (Kg) | (L*W*H) | ||
MTS0818 | 800 | 1800 | ≤15 | 2.4 | 650 | 3.15*1.1*1.65 |
Application
Trommel Screen Compost Sieving Machine
The mobile trommel screening machine is a screening equipment developed by our company for small and medium-sized and light materials such as compost, wood chips, cow dung, sand and gravel. It has the following characteristics:
The mobile trommel screening machine is a screening equipment developed by our company for small and medium-sized and light materials such as compost, wood chips, cow dung, sand and gravel. It has the following characteristics:
1. Smooth operation and low noise;
2. Simple structure, maintenance Convenient;
3. The screen holes are not easy to block;
4. The screening efficiency is high;
5. The screen has a long service life and is easy to replace.
2. Simple structure, maintenance Convenient;
3. The screen holes are not easy to block;
4. The screening efficiency is high;
5. The screen has a long service life and is easy to replace.
Discus Your Materials
About Our Design

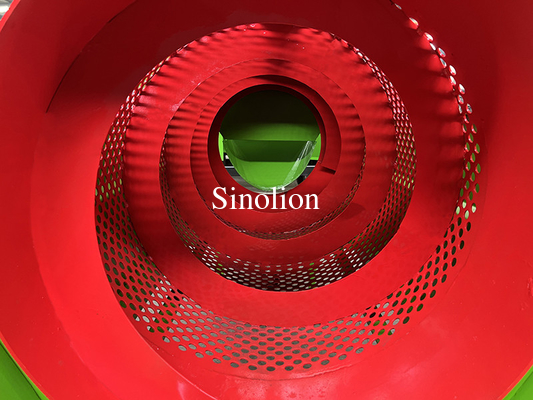

The mobile trommel screen MTS0818 overall size is 3.15*1.1*1.65m.The length of the drum is 1800mm, the width of the drum is 800mm, and 15 cubic meters of material can be screened per hour.At the same time, our screen is divided into manganese wire weaving and steel plate punching.
Structure for mobile topsoil trommel screen
The mobile trommel screen is mainly composed of silo, screen drum, idler assembly, transmission part, discharge conveyor, brush, underframe, rear axle, traction, diesel generator, control cabinet, protective cover and other parts. The basic working principle of the trommel screen: the material is poured into the silo by the loader, and transported to the trommel screen by the conveyor on the silo, and then the motor reducer drives the idler to rotate the screen cylinder, and the material particles in the screen cylinder follow the screen. The drum rotates to a certain height, is thrown and dropped by gravity, and is filtered through the screen to form a screening. Finally, the screened materials are transported to different places by different conveyors.
Discuss your design ideas
PACKING & DELIVERY
Packing of Trommel Screen:
All of the trommel screens will be processed to be rustproof and moisture proof before delivery. 20GP container or 40GP container. Equipment is packed with plastic wrap or steel case or free fumigation wooden cases, depends on machine weight. Motor is packed with steel case or free fumigation wooden case. Control panel is packed with wooden case. Loading container in factory..
OUR SERVICE
We provide comprehensive assistance in the procurement process of mobile trommel screening equipment, along with the necessary accompanying equipment such as forklifts, pickup trucks, and material handling conveyors. Our company services encompass guiding customers through the entire purchasing process and ensuring customers have access to the required auxiliary machinery.
COMPANY INTRODUCTION
Zhengzhou Sinolion Equipment Co.. Ltd., a Chinese high-tech company, which is professional in manufacturing trommel sieving equipment, also one of the earliest Chinese enterprises to enter this field. After 30 years of development, Sinolion has been now setting up branches,integrating engineering,trade research and development, production and sales, developed to be a large-scale enterprise. Sinolion has modern standard workshops,as well as advanced technology and testing equipment. Now, sieving equipment are renowned in domestic and foreign markets,and Sinolion products have been exported to Serbia, United Kingdom, Turkey, Malaysia, Indonesia, Kazakhstan, Vietnam, Egypt, Mexico, Ghana, Tanzania, Nigeria, South Africa, Chile, Bolivia, Canada and other countries. Sinolion provides space planning and design,equipment installation and commissioning support under holding the concept of "To survive with quality and develop with credit". Sinolion strives to build a brand enterprise with satisfaction of customers. Let customers buy reassured and use comfortably! Widely cooperate with relevant institutions to continuously improve product value and performance.For users who ask us to design, manufacture and install products, will provide satisfactory products with the latest technology, reliable quality, favorable price and perfect service. We warmly welcome cooperations with friends from all around the world!
FAQ
Q:What materials can the equipment screen?
A:Our mobile trommel screen can screen compost, topsoil,sand, gravel, cow and sheep manure etc.It can be used in many scenarios.
Q:How is the equipment transported?
MTS0818 uses wooden box packaging for transportation.Before shipment,it is package in wooden boxes and moisture-proof and rustproof treatmentis performed to prevent rustand corrosion of the equipment during transportation.MTS1022 and MTS1230 require a 20GP container for transportation，A 40HQ can hold 2 set MTS1230s and a 40HQ container can hold 3 set MTS1022s. MTS1550 requires one 40HQ container for transportation.
Q:What kind of power can the equipment provide?
A;Currently, our equipment supports motor type，diesel engine type and diesel generator set type. Three types are optional to meet your various needs.
Q:What are the biggest highlights of the equipment?
First, our side conveyor belt uses a herringbone belt which can prevent materials from slipping during conveying materials. The conveyor belt thickness is 11mm for better quality. Secondly，the cleaning brushes use nylon material which is very wear-resistant.According to different models.the brush diameter is between 200-350mm.At the same time, the cleaning brushes can prevent sticky materials from blocking the sieve holes.
Q: Can you give me a solution and quotation? A: Absolutely sure, we can provide accurate solution and quotation, please give us background information, including. raw material, the capacity, max. input size, the output size, the usage of final products, etc.
A:For a small single equipment, we offer you user manual, customer wll install and commissioning as operating introduction; For a complete production line, we will send our engineer to your workplace to help you install and commissioning until machines work normally. Sinolion has several experienced technicians with passports ready to go for installation, when installation service is needed, the client should pay for technicians' round way air tickets, salary(shall be confirmed before leaving), food and lodging, most importantly to guarantee the technicians' safety.
Q：What's the delivery time after I pay the deposit?
A：We will clear delivery time in slaes contract, Single movable drum sieve often deliveried within 10-15 working days after receipt of the pre-payment. Complete production line will delivery within 25-40 working days after receipt of the pre-payment.
Q：How long of your machine quality guarantee terms ?
A：Quality guarantee time is one year(wearing parts excluded).
