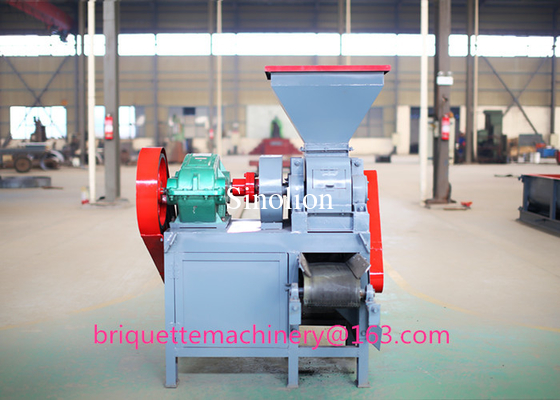

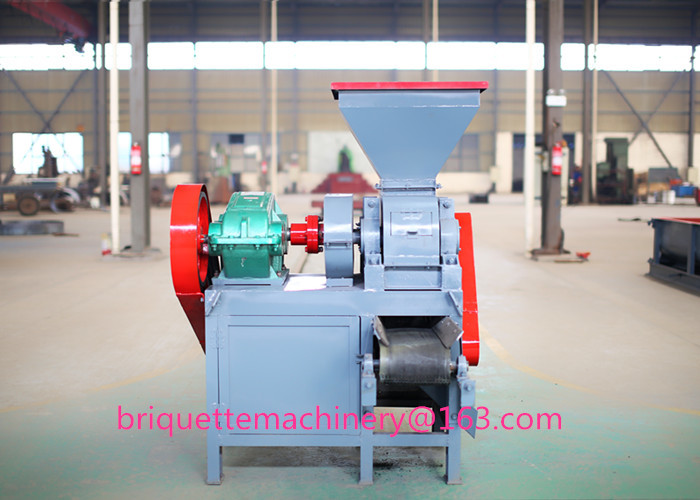

DRI/Ore powder Mechanical Briquetting Machine
Specifications
DRI/Ore powder briquetting machine:
Mechanical/Hydraulic type.
Fit for DRI fines, ore powder.
Directly sell by manufacturer.
Briquetting Machine
1. Briquetting machine working condition:
(1). Materials size required before feeding into briquetting machine: less than 3mm. If the size is larger than 3mm, it is necessary to crush them into smaller size for briquetting.
(2). Moisture content: About 10%.
(3). Briquetting plant is made up of crusher, double shaft mixer, binder mixing barrel, briquetting machine, Briquettes dryer etc.
(4). Production materials type: such as coal powder, coke powder, charcoal powder, iron ore fine, DRI fines, mill scale, iron sludge, fertilizer, oil shale etc
Main Technical Parameter:
|
Model |
Reducer |
speed ratio |
The dimension of pressing roll |
speed of main shaft(r/min) |
Power of motor (kw) |
Output (t/h) |
|
YHQ360-4 |
ZQ350 |
1:31.5 |
Φ360*250 |
15-17 |
7.5 |
3-5 |
|
YHQ360-2 |
ZQ350 |
1:31.5 |
Φ360*250 |
15-17 |
7.5 |
3-5 |
|
YHQ400-4 |
ZQ400 |
1:31.5 |
Φ400*250 |
15-17 |
11 |
4-7 |
|
YHQ400-2 |
ZQ400 |
1:31.5 |
Φ400*250 |
15-17 |
7.5 |
4-7 |
|
YHQ430-4 |
ZQ400 |
1:31.5 |
Φ430*250 |
15-17 |
11 |
5-8 |
|
YHQ430-2 |
ZQ400 |
1:31.5 |
Φ430*250 |
15-17 |
7.5 |
5-8 |
|
YHQ500-4 |
ZQ500 |
1:31.5 |
Φ500*350 |
15-17 |
22 |
8-10 |
|
YHQ500-2 |
ZQ500 |
1:31.5 |
Φ500*350 |
15-17 |
15 |
8-10 |
|
YHQ650-4 |
ZQ650 |
1:31.5 |
Φ650*350 |
15-17 |
30 |
12-20 |
|
YHQ650-2 |
ZQ650 |
1:31.5 |
Φ650*350 |
15-17 |
22 |
12-20 |
|
YHQ750-4 |
ZQ750 |
1:31.5 |
Φ750*380 |
14-16 |
30 4
|
25-30 |
|
YHQ850-4 |
ZQ850 |
1:31.5 |
Φ850*436 |
14-16 |
37 |
35-40 |
|
YHQ1000-4 |
ZQ1000 |
1:31.5 |
Φ1000*530 |
14-16 |
45 |
40-45 |
Flow chart
PLS NOTICE:

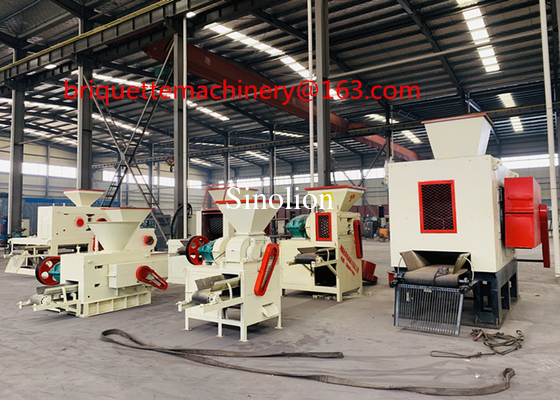

Yonghua Machinery has many type high briquette ratio coal briquette press machine ,if you have any kinds of raw material and want to make them into briquettes ,please contact me freely.we will provide you a competitive price and excellent machine ,sincerely waiting for your inquiry.
