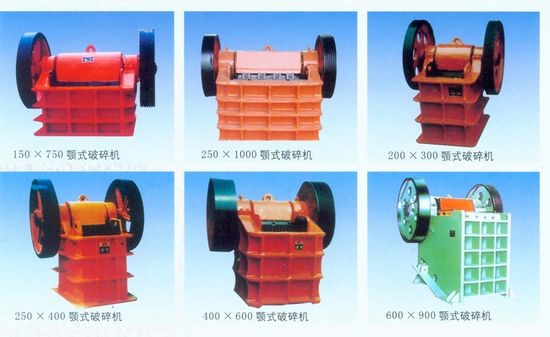

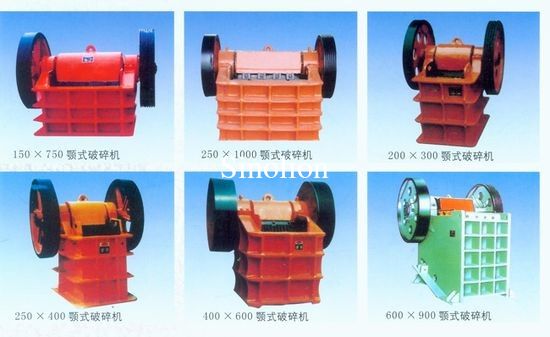

China Leading PE Series Jaw Crusher:
Specifications
Jaw Crusher:
1.Large crushing ratio
2.Even granularity
3.Simple structure&easy maintenance
4.Low cost
Name:stone Crusher-jaw crusher
Advantages:
1,large crushing ratio, uniform particle size.
2, easy to replace parts, maintenance, small amount of work.
3, simple structure, reliable operation and low cost .
4, low noise, less dust.
5, nesting population adjustment range, can meet different user requirements;
Product Description:
PE Jaw Crusher is our company set the successful experience in similar products at home and abroad, for mining, smelting, building material, highway, railway, water conservancy, road construction and other industrial sectors quarries and rock crusher specially designed. The product specification is complete, the feed size from 80-850 mm, PE-type jaw crusher crushing materials of compressive strength of up to 300Mpa, is a complete set of broken lines in the first choice of primary crushing equipment.
Futures:
1) Firm structure, stable performance, large capacity, even producing granularity.
2) With the increase of production, our jaw crusher can greatly reduce the operating costs.
3) Convenient maintenance and economical running expense..
4) The large feed opening and force-feeding action from the inward and downward eccentric movement of the swing jaw mean that our jaw crusher can increase the capacity.
Specification:
Model | Feed Opening | Max. Feed Size | Capacity | Power | Discharge Opening | Overall Dimension |
PE-150×250 | 150×250 | 125 | 1-5 | 5.5 | 10-40 | 758×758×794 |
PE-250×400 | 250×400 | 210 | 5-20 | 15 | 20-60 | 1500×1400×900 |
PE-400×600 | 400×600 | 340 | 16-65 | 30 | 40-100 | 1700×1800×1600 |
PE-500×750 | 500×750 | 425 | 50-100 | 55 | 50-100 | 1890×1940×1870 |
PE-600×900 | 600×900 | 500 | 50-120 | 55 | 65-160 | 2395×1843×2230 |
PE-750 ×1060 | 750×1060 | 630 | 52-180 | 110 | 80-140 | 2775×2426×2840 |
PE-800×1060 | 800×1060 | 640 | 136-230 | 110 | 100-200 | 2500×2472×2810 |
PE-900×1200 | 900×1200 | 750 | 140-260 | 110 | 95-165 | 3400×3200×3500 |
PE-1000×1200 | 1000×1200 | 850 | 315-342 | 110 | 195-265 | 3335×3182×3430 |
PE-1200×1500 | 1200×1500 | 1020 | 400-800 | 160 | 150-300 | 4200×3732×4620 |
PE-250 ×750 | 250×750 | 210 | 15-30 | 22 | 15-70 | 1400×1300×1350 |
PE-250×1000 | 250×1000 | 210 | 16-52 | 30 | 25-60 | 1600×2000×1500 |
PE-250 ×1200 | 250×1200 | 210 | 20-60 | 37 | 25-60 | 1900×2200×1500 |
PE-300×1300 | 300×1300 | 260 | 30-70 | 55 | 30-90 | 1800×2300×1700 |
