Product Details:
Payment & Shipping Terms:
|
Color: | Gray | Capacity: | 10-40t/h |
---|---|---|---|
Motor Power: | 2×18.5 |

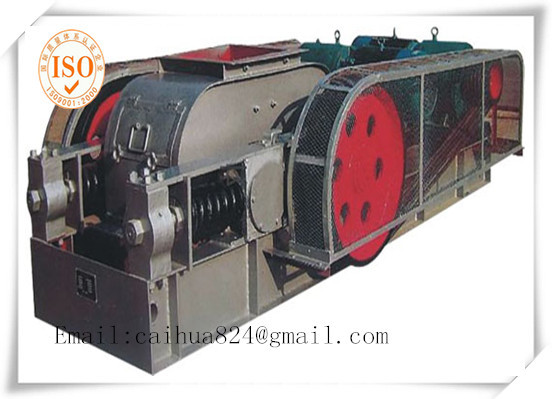

2-roller crusher equipment
1.Introductin of 2-roller crusher:
The series of 2-roller crusher can be applied in industrial sectors such as ore crushing ,chemical industry, cement, refractory, abrasive and construction industries to break ores and stones of high and medium rigidities, and particularly applied in the building material industry to produce pisolitr and pea gravel, which is with better effect than ordinary crushers. This series crusher has good characteristics like reliable working, simple maintenance, low operating cost and adjustable marking granularity.
2. Specifications
1.Two-stage crushing in up and down
2.Non-stop oiling port
3.Bidirectional gap
3.Main Usage:
The roller crusher has features of high efficiency, reliable working, simple maintenance, low operating cost. It is widely used for secondary and fine crushing in the industry of mining, building materials, chemical industry, metallurgy and so on. It can crush materials in middle hardness such as rocks, ore, coke and so on.
4. Technical Parameter of 2-roller Crusher:
Model |
Feeding Size |
Output |
Capacity |
Motor Power |
Weight |
Overall Dimension |
2PG400×250 |
<35 |
≤2-8 |
2-10 |
2×5.5 |
1.3 |
2110×870×810 |
2PG610×400 |
<65 |
≤2-20 |
5-20 |
2×15 |
3.9 |
3510×1420×1030 |
2PG750×500 |
<75 |
≤2-25 |
10-40 |
2×18.5 |
9.5 |
4210×1630×1260 |
2PG800×600 |
<80 |
≤2-25 |
12-45 |
2×22 |
10.8 |
4505×1780×1320 |
2PG1000×700 |
<100 |
≤3-30 |
20-65 |
2×30 |
14.9 |
5310×2175×1595 |
2PG1200×800 |
<120 |
≤3-35 |
35-80 |
2×37 |
25.5 |
6290×2270×1870 |
2PG1500×800 |
<130 |
≤3-45 |
50-120 |
2×75 |
33.7 |
7460×2410×2290 |
2PG1600×1000 |
<150 |
≤3-50 |
60-140 |
2×90 |
41.2 |
8220×2680×2475 |
5.Service policy:
Before sales:
1.The device type
2.For customer training and technical personnel
3.According to customer request, design and manufacture products
4.The company send engineers and technical person to the user’ site, planning for the optimal design of the flow field, and the solutions
Medium sales:
1.Acceptance of the product
2.Assist client protocol construction scheme
After sales:
1.On site training personnel
2.Appoint special after-sale service staff , arrived at the site and guide clients installation and commission.
Note:This specification is just for reference, any changes are subject to the products
