Energy-saving Fly Ash Ball mill Skype sonia107824
USD 5000-10000 PER SET
Energy-saving Fly Ash Ball mill Skype sonia107824
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: Henan
Brand Name: Berno
Certification: CE,ISO
Model Number: 1200*2400
Payment & Shipping Terms
Packaging Details: container
Delivery Time: in stock
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 SETS PER MONTH
Olor: Red
Cylinder Rotating: 32r/min
Feed Size: Less Than 25mm
Discharge Size: 0.075-0.6mm
Capacity: 1.5-4.8t/h
Power: 30kw
Product Description

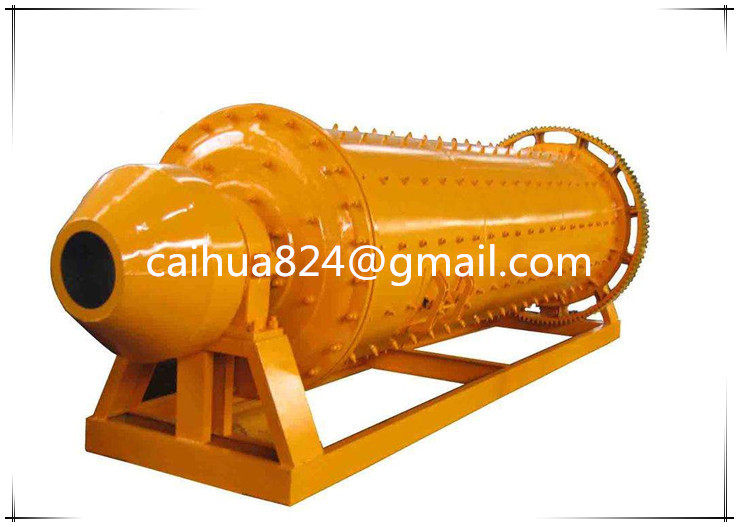

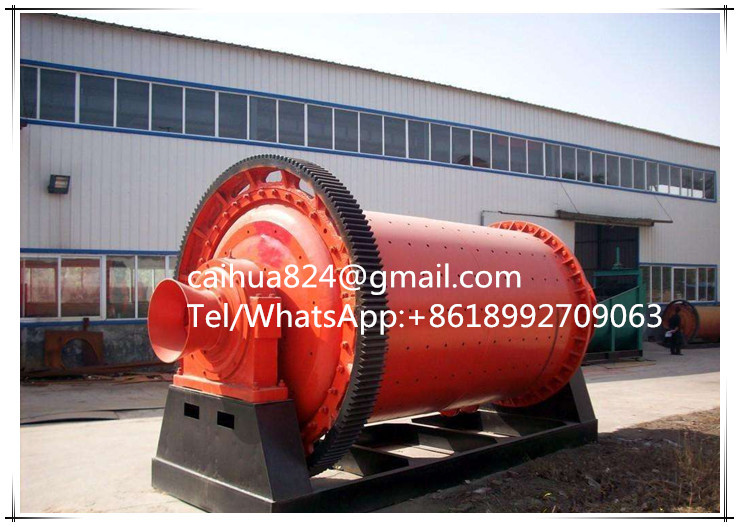

Energy-saving Fly Ash Ball mill Skype sonia107824



Fly Ash ball mill grinds material by rotating a cylinder with steel grinding balls, causing the balls to fall back into the cylinder and onto the material to be ground. The rotation is usually between 4 to 20 revolutions per minute, depending upon the diameter of the mill. The larger the diameter, the slower the rotation. If the peripheral speed of the mill is too great, it begins to act like a centrifuge and the balls do not fall back, but stay on the perimeter of the mill. The point where the mill becomes a centrifuge is called the "Critical Speed", and Slag Ball Mills usually operate at 65% to 75% of the critical speed.

Fly Ash Ball Mill is a key equipment to grind all kinds of ores and other materials.which is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc.Slag Ball Mill are generally used to grind material 1/4 inch and finer, down to the particle size of 20 to 75 microns. To achieve a reasonable efficiency with Slag Ball Mills, they must be operated in a closed system, with oversize material continuously being recirculated back into the mill to be reduced. Various classifiers, such as screens, spiral classifiers, cyclones and air classifiers are used for classifying the discharge from Slag Ball Mills. Slag Ball Mill is an efficient tool for grinding many materials into fine powder. The Slag Ball Mill is used to grind many kinds of mine and other materials, or to select the mine. It is widely used in building material, chemical.


Working Principle Of Fly Ash Ball Mill
Fly Ash Ball Mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

Main parameters:

Energy-saving Fly Ash Ball mill Skype sonia107824 0

Energy-saving Fly Ash Ball mill Skype sonia107824 1

Energy-saving Fly Ash Ball mill Skype sonia107824 2

Energy-saving Fly Ash Ball mill Skype sonia107824 3
