Product Details:
Payment & Shipping Terms:
|
Color: | Blue | Disc Diameter: | Φ1000 |
---|---|---|---|
Adding Volume Each Time: | 200kg | Capacity: 1.0-1.3t/h: | 2.2-2.5t/h |
Main Shaft Speed: | 34.7r/min | Motor Power: | 7.5kw |

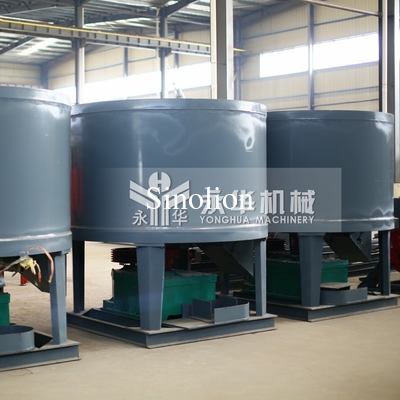

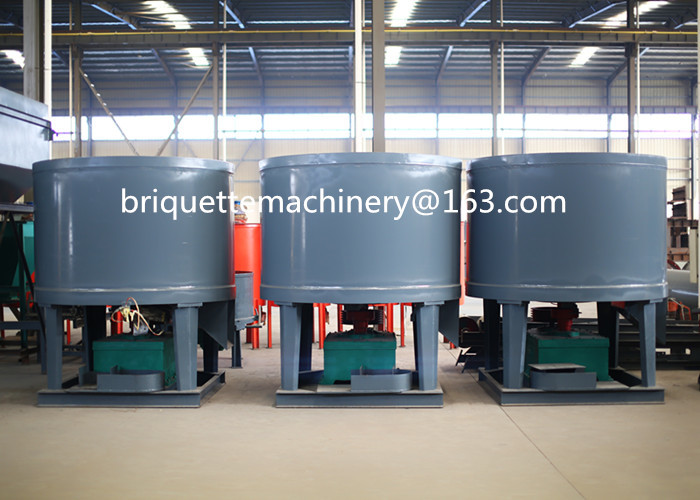

2019 Best Selling ISO9001 Grinding Wheel Sand Mixer
Product introduction

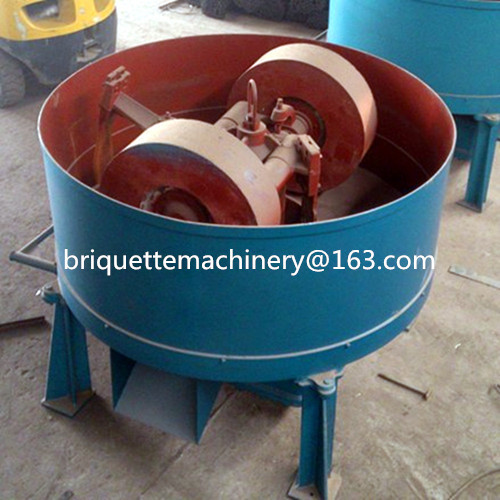

S110 series rotor sand mixer works with the low-speed rotor mixer scraper combinating with the medium-speed rotor. large mixing quantity, good quality and high efficiency.
This rotor sand mill series equipments can mix single type sand for molding machines, and also can use for mixing dry sand, self-hardening sand, facing sand and core sand. Besides, it also can prepare all kinds ofmixed powder loaded materials for glass, ceramics, refractories,etc.
Model | S110 | M150 | M180 | M200 | M250 | M300 |
Mixing disk Diameter(mm) | Φ1000mm | Φ1450mm | Φ1800mm | Φ1850mm | Φ2000mm | Φ2400mm |
Each feeding in(L) | 110L | 200L | 300-400L | 500L | 1000L | 1500L |
Mixing cycle(min) | 3-5 | 3-5 | 3-5 | 2-5 | 2-5 | 2-5 |
Capacity(t/h) | 1-1.3t/h | 2.2-2.5t/h | 4-6t/h | 5-8t/h | 8-10t/h | 13-15/h |
Roller Speed(r/min) | 44r/min | 34.7r/min | 34r/min | 33r/min | 25r/min | 20r/min |
Power(Kw) | 5.5kw | 7.5kw | 15kw | 22kw | 30kw | 37kw |
Size(m) | 1.2*1.2*1.3 | 1.5*1.5*1.6 | 1.8**1.8*1.8 | 2.0*2.0*1.8 | 2.5*2.5*1.8 | 3.0*3.0*1.8 |
Weight(t) | 1.2t | 2.0t | 3.0t | 3.5t | 4.0t |
Quality and After-sale Assurance
1. Supplier promise the name, model, specification and quantity comply with technical protocol,
assuring the machine is new equipment with qualified material manufactured through perfect technology.There are no defects in design, material and technologies, which is suitable for propose of demander,and meets the standard of national industry. The quality is stable and reliable.
2. Equipment warranty and After-sale Assurance Engineers available to service machinery overseas( except force majeure, inappropriate operation and the quick-wear parts wears).
3. The equipment will pass the installment and test before delivery, after the quality is qualified,
we will disassembly the equipment, coating and deliver.
