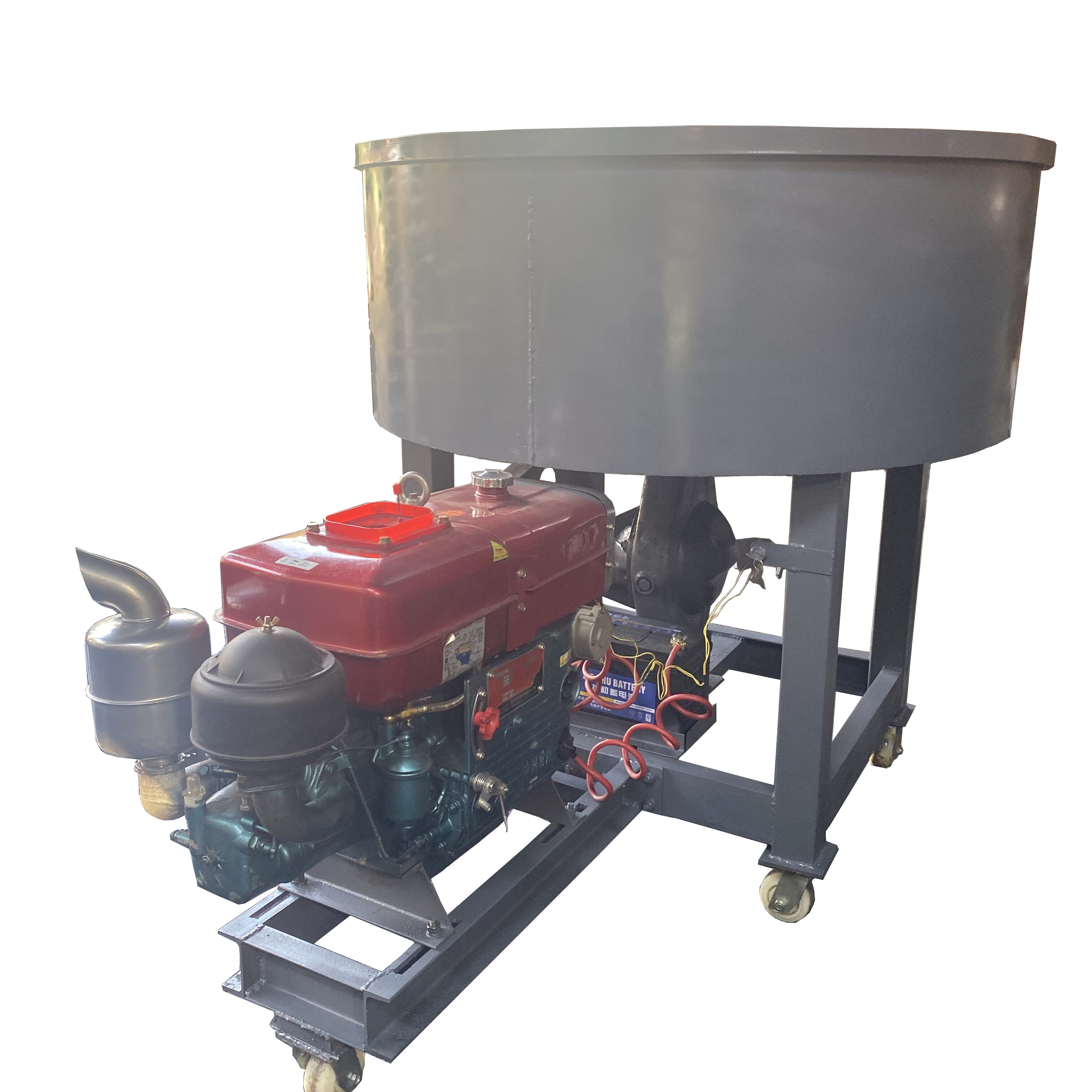

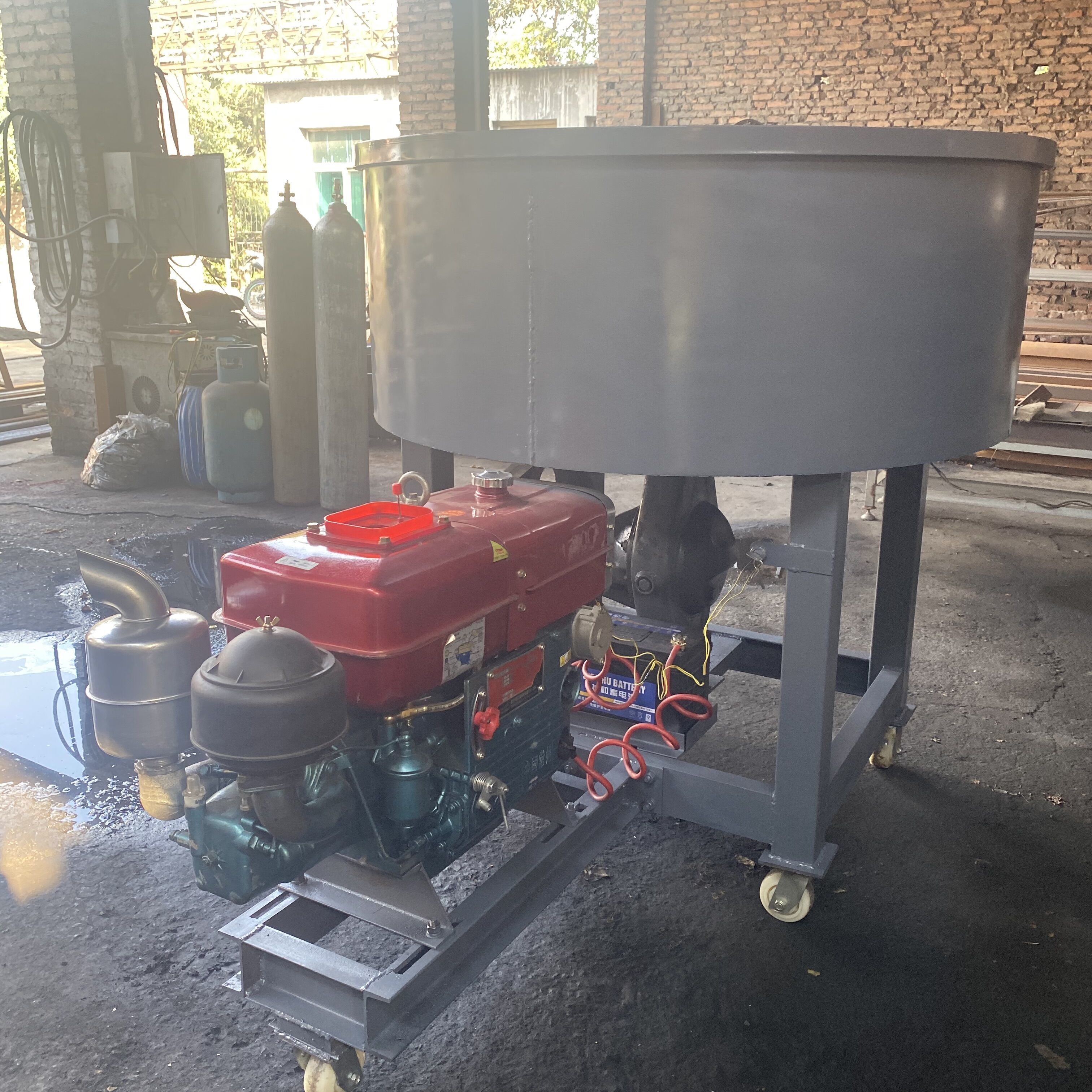

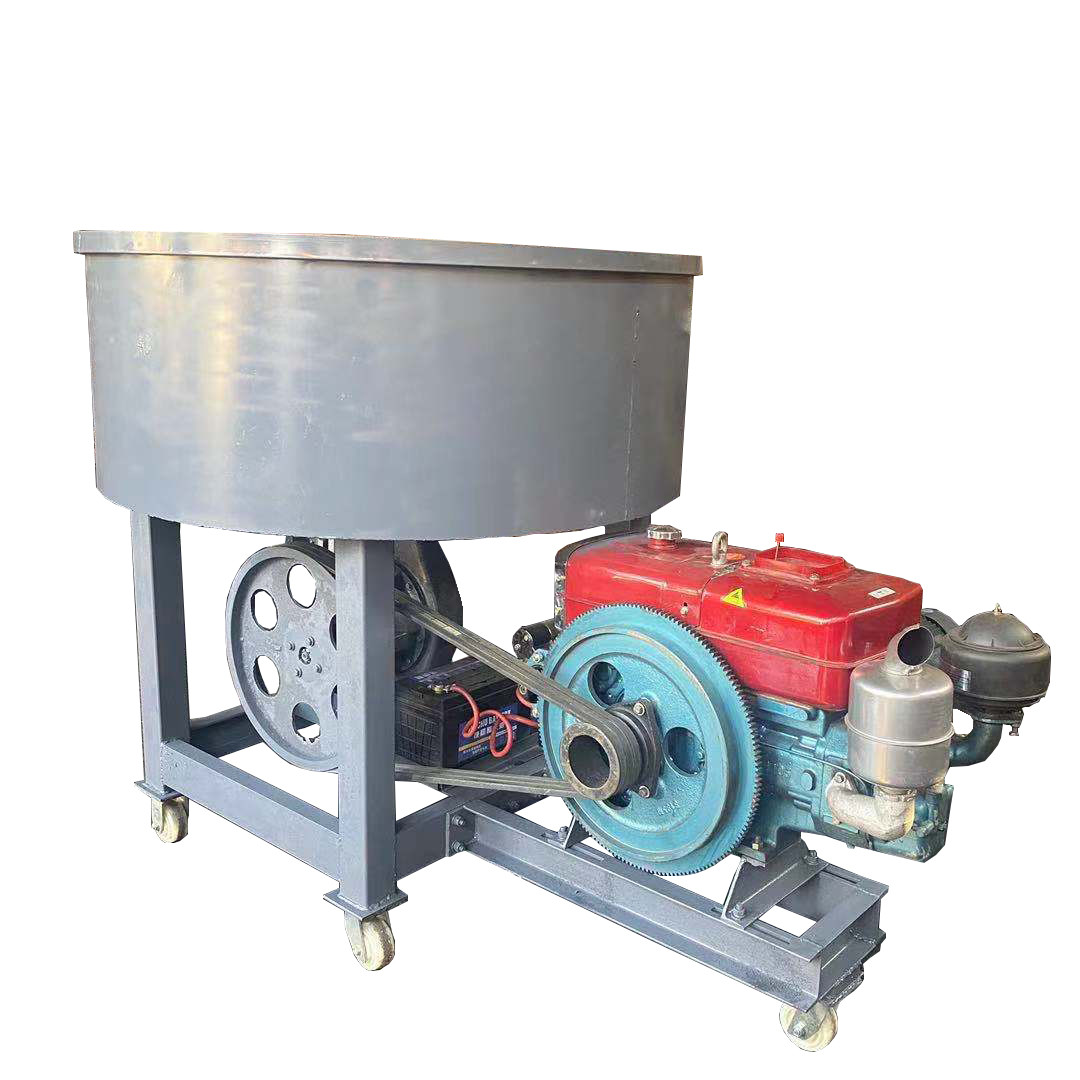

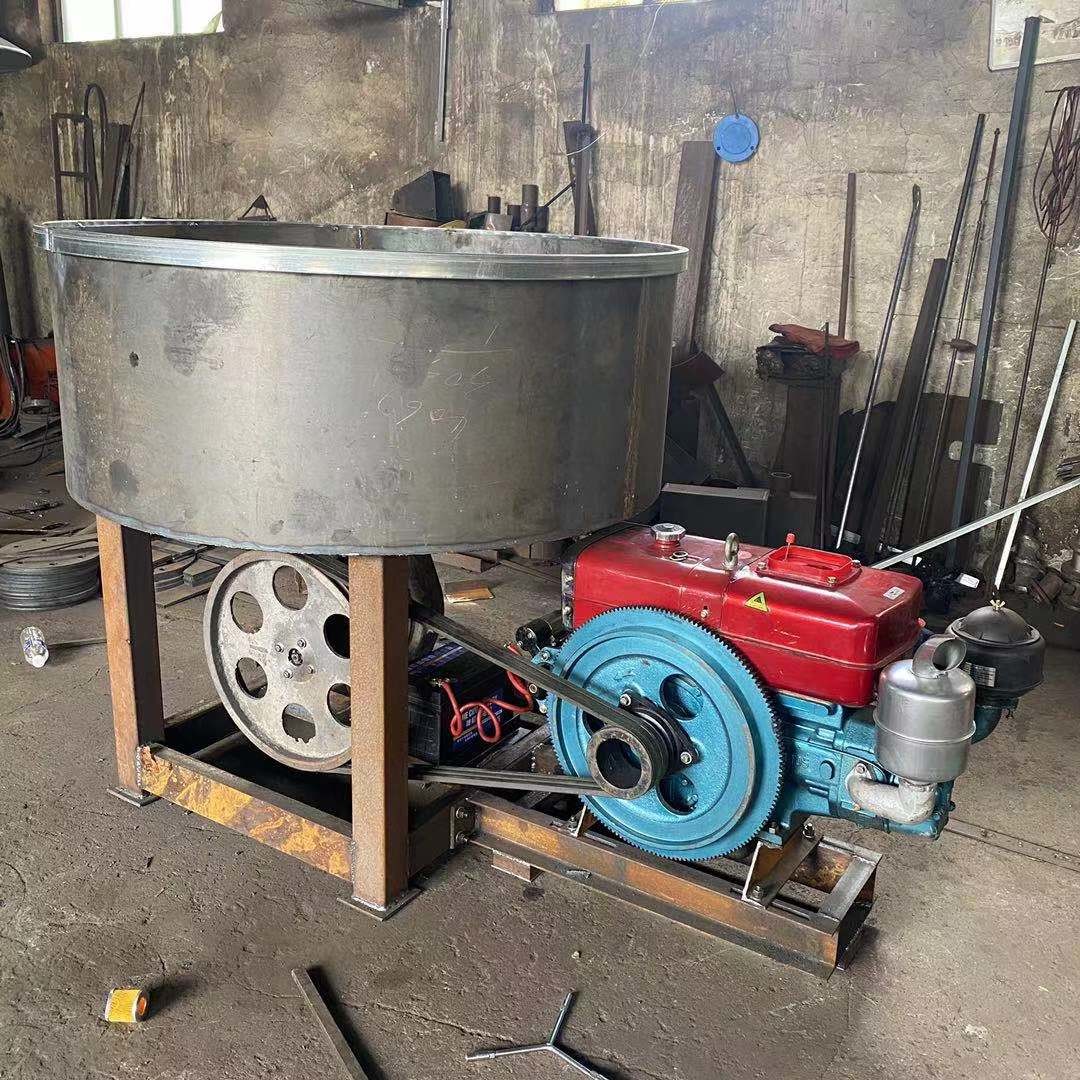

Diesel engine charcoal coal dust double wheel grinding mixer stirring equipment
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Color: | Blue | Disc Diameter: | Φ1800 |
|---|---|---|---|
| Adding Volume Each Time: | 300-400kg | Capacity: 1.0-1.3t/h: | 4-6t/h |
| Main Shaft Speed: | 34r/min | Motor Power: | 15kw |
Diesel engine charcoal coal dust double wheel grinding mixer stirring equipment
Product introduction
S110 series rotor sand mixer works with the low-speed rotor mixer scraper combinating with the medium-speed rotor. large mixing quantity, good quality and high efficiency.
This rotor sand mill series equipments can mix single type sand for molding machines, and also can use for mixing dry sand, self-hardening sand, facing sand and core sand. Besides, it also can prepare all kinds ofmixed powder loaded materials for glass, ceramics, refractories,etc.
Features of wheel grinding mixer:
1). mix and grind at same time.
2). high production efficiency.
3). energy-saving.
4). easy to install and maintain.
5). good sealing property.
Application:
Wheel roller mixer, apply to mixing solid material and liquid amterial in casting workshop, widely applied in various kinds of forming production line. It is a kind of ideal mixing equipment can be easily used in chemical industry, light industry, building materials, and other industries mixing with powder materials.
Main Technical Parameter:
| Model | S110 | M150 | M180 | M200 | M250 | M300 |
| Mixing disk Diameter(mm) | Φ1000mm | Φ1450mm | Φ1800mm | Φ1850mm | Φ2000mm | Φ2400mm |
| Each feeding in(L) | 110L | 200L | 300-400L | 500L | 1000L | 1500L |
| Mixing cycle(min) | 3-5 | 3-5 | 3-5 | 2-5 | 2-5 | 2-5 |
| Capacity(t/h) | 1-1.3t/h | 2.2-2.5t/h | 4-6t/h | 5-8t/h | 8-10t/h | 13-15/h |
| Roller Speed(r/min) | 44r/min | 34.7r/min | 34r/min | 33r/min | 25r/min | 20r/min |
| Power(Kw) | 5.5kw | 7.5kw | 15kw | 22kw | 30kw | 37kw |
| Size(m) | 1.2*1.2*1.3 | 1.5*1.5*1.6 | 1.8**1.8*1.8 | 2.0*2.0*1.8 | 2.5*2.5*1.8 | 3.0*3.0*1.8 |
| Weight(t) | 1.2t | 2.0t | 3.0t | 3.5t | 4.0t |
Quality and After-sale Assurance
1. Supplier promise the name, model, specification and quantity comply with technical protocol,
assuring the machine is new equipment with qualified material manufactured through perfect technology.There are no defects in design, material and technologies, which is suitable for propose of demander,and meets the standard of national industry. The quality is stable and reliable.
2. Equipment warranty and After-sale Assurance Engineers available to service machinery overseas( except force majeure, inappropriate operation and the quick-wear parts wears).
3. The equipment will pass the installment and test before delivery, after the quality is qualified,
we will disassembly the equipment, coating and deliver.
