Product Details:
Payment & Shipping Terms:
|
Condition: | New | Warranty: | 1 Year |
---|---|---|---|
Type: | Briquette Machines,Custom Design | Motor Type: | AC Motor,DC Motor,Other,Stepper Motor |
After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Field Maintenance And Repair Service,Field Installation | Dimension(l*w*h): | As Specification Customized |
Production Capacity: | 50 Sets Per Month | Certification: | CE,ISO9001 |
Power(w): | 7.5-15KW | Raw Material: | Charcoal Powder,sawdust,Coal.charcoal Powder,coal Dust,etc |
Color: | Client's Required | Briquette Shape: | Round,Round Square Hexagon Pillow,Cylinder-shaped,pentagon And Hexagon With A Hole In The Center |
Capacity: | 11-40 Pieces/minute | Application: | BBQ,Charcoal Briquetting |
Name: | Briquette Press Machine,shisha Charcoal Briquette Machine,Roller Press Bbq Charcoal Coal Briquette Machine Price | Voltage: | 380v,220V/380V/415V/460V |
Keyword: | Shisha Charcoal Tablet Press Machine/Briquette Making Machine | Product Name: | Briquette Press Machine |

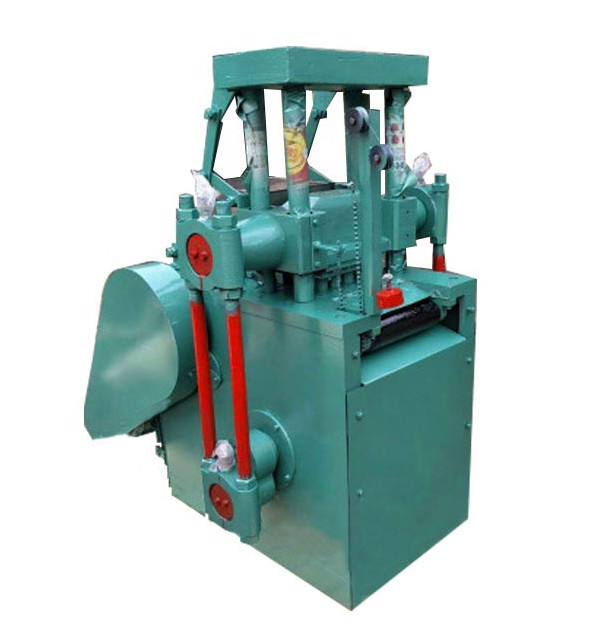

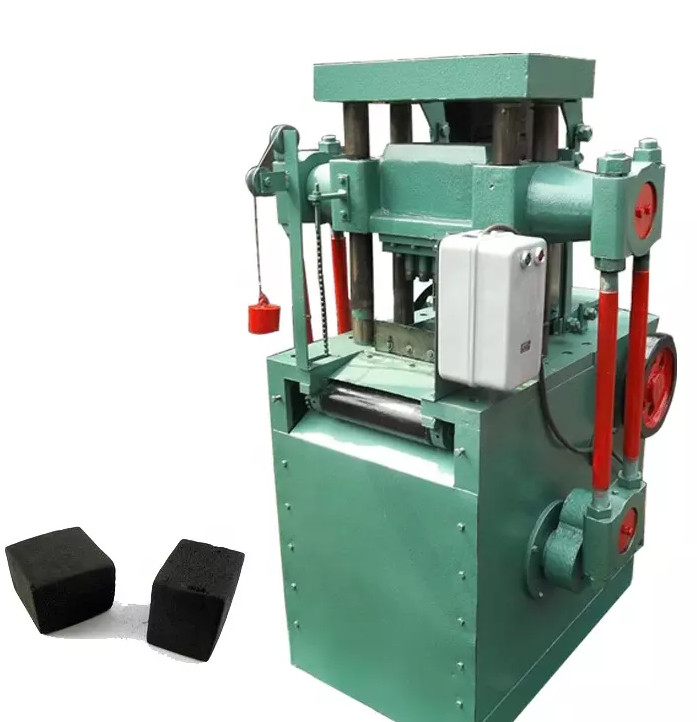

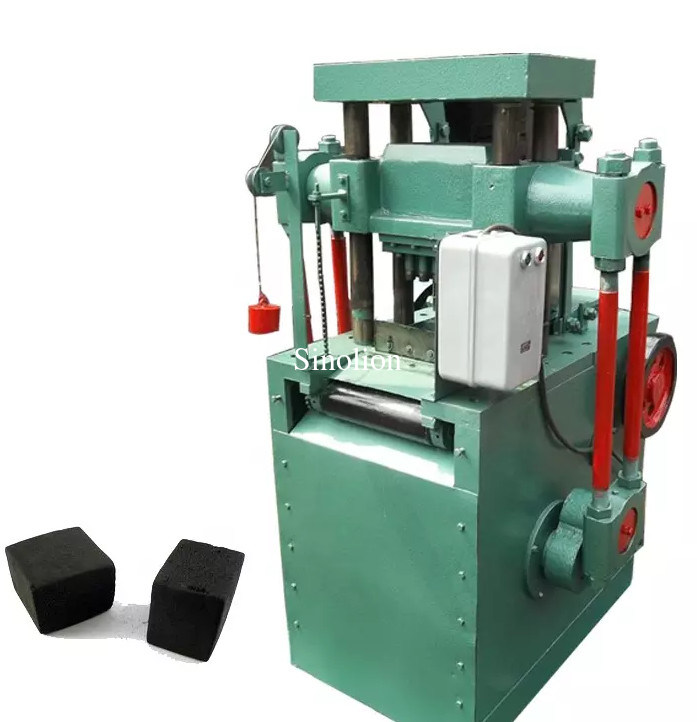

Tablet shisha press machine /good price charcoal briquette making machine
Brief Introduction:
Shisha charcoal machine is specilize in make shisha hookah briquette. This machine use hydraulic principle, owing to the pressure is very large, so it can press good quality final product, so does the briquette quality is very good, our machine use PLC system, and about the product line, we can achieve all automatic production, of course, if you are beginner, want lower invest, we also can offer you semi-automatic production line. Machine include PLC system, hydraulic cylinder, conveyor, molds and main machine.
Main parameters:
Model | SBJ-9 | SBJ-48 |
Applicable materials | charcoal powders, coal powders, sawdust, any powders materials | |
Capacity |
11-16 pieces / time 20-40 times/min |
48 Pieces per Time (30 mm) 8-20 times/min |
Motor | 7.5 kw (4 pole) | 18.5kw (4 pole) |
Diameter of briquettes |
20,25,30 33 35 38 40 43 mm(round); 20-40 mm(cubic) |
20,25,30 33 35 38 40 43 mm(round); 20-40 mm(cubic) |
Feeding materials | < 3 mm | < 3 mm |
Briquettes shape |
Round shape and Cubic shape Or as customers’ request |
Round shape and Cubic shape Or as customers’ request |
Pressure | 40-60tons(adjustable) | 40-150tons |
Press type | Mechanical Press | Hydraulic Press |
Overall size |
2500x 950x1550 mm (includes conveyor) |
3500*2000*1800mm (includes conveyor) |
Packing size | 1500x1200x1750 mm | 2100*2100*1900mm |
Weight | 1500 KG | 5500kg |
Festures:
(1) NO binder needed during production to make clean & green fuel briquette.
(2) Quantity of heat of final product is 500-1000Kcal higher than raw material.
(3) Can replace firewood and liquefaction gas, with less investment.
(4) Small cubage and easy for transport.
(5) Adopt high-speed, high-frequency stamping technique, ensure the stability of the molding.
1.Size and shapes:
1) Size: round: 20-45mm, square: 15-55mm
2) Shape: round, square, restabgle, triangle, cylinder, diamound, cone, etc.
3) The shape of briquettes can be customized.
2. Characteristics:
1) The shisha charcoal briquettes use quick burning charcoal technology, can burn from the top to down.
2) Firepower fierce, smokeless, tasteless, non-toxic, long burning time.
3) Square shape shisha charcoal can burn for about 1-1.5 hours.
4) Round tablet shisha charcoal can burn for about 40 minutes.
Application:
The Shisha tablet press is widely used in refractory, power plants, metallurgy, chemicals, energy, transportation, heating, etc.

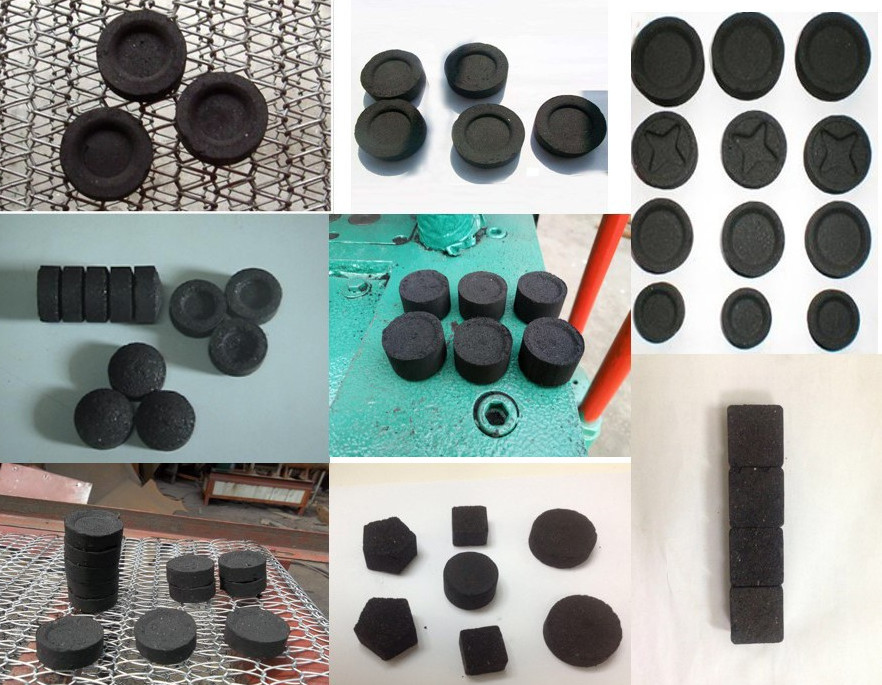

Shape and size
If you want to learn more information, please contact us.
