Capacity: | 1.8-5t/h | Motor Power: | 7.5kw |
---|---|---|---|
Color: | Red | Voltage: | 220V 50HZ,220v/380v,380v,380V/220V,380V/50HZ |
Power(w): | Based | Condition: | New |
Weight: | 2.9-104.9t | Warranty: | 1 Year |
Type: | Vacuum Drying Equipment,Rotary Drying Equipment,Spray Drying Equipment | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support |
Application: | Food Processing,Medicine Processing,Chemicals Processing,Pharmaceutical | Name: | Continuous Dehydrator System Alfalfa Drying Equipment,Rotary Dryer Price,creative Lab Vacuum Drying Oven Equipment With Ce Certificated,rotary Drying Equipment |
Product Name: | Big Capacity Elephant Grass Rotary Drum Dryer Drying Equipment | Installation: | Under Technician's Guidance,Engineer Guide |
Color: | Customized | Heating Source: | Electricity / Coal / Natural Gas / Diesel |
Material: | SS304/SS316L,Q235 | Raw Material: | Carbon Steel |
Usage: | Reduce Material's Moisture |

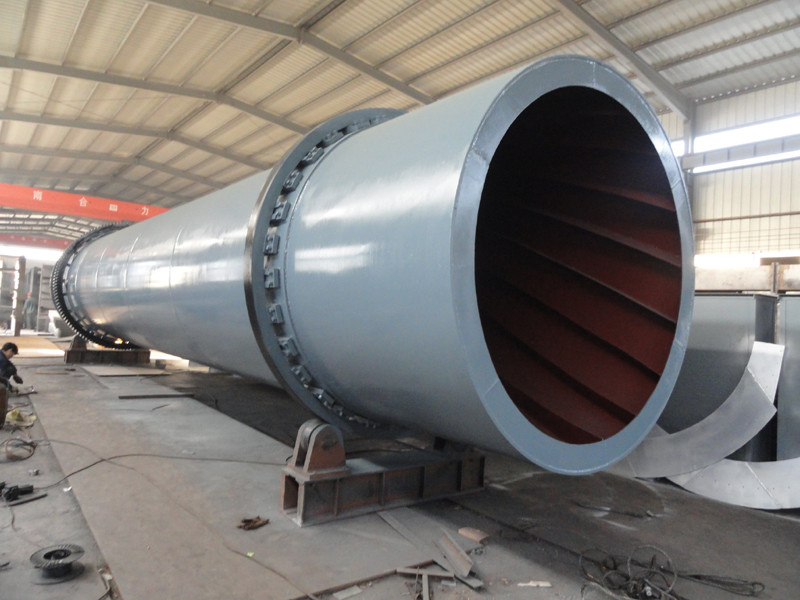

2021 good features chicken manure dryer rotary drum dryer
Sewage rotary dryer
Rotary Dryer Introduction:
1. Company Introduction:
Our factory is a manufacturer and exporter of mining machinery in China.
Our main products are grinding mill, briquetting machine,sand making production line, stone production line, magnetic separating production line, Flotation separating production line, cement production line, crusher, dryer, rotary dryer, rotary kiln, coal gasifier, conveyor, ball mill and so on.
All of them are ISO9001:2008 confirmed.
Specifications
new designed high quality and durable competitive rotary dryer:
1.Used for coal,cement,ore drying
2.Fast delivery
3.OEM
2.Description of rotary dryer:

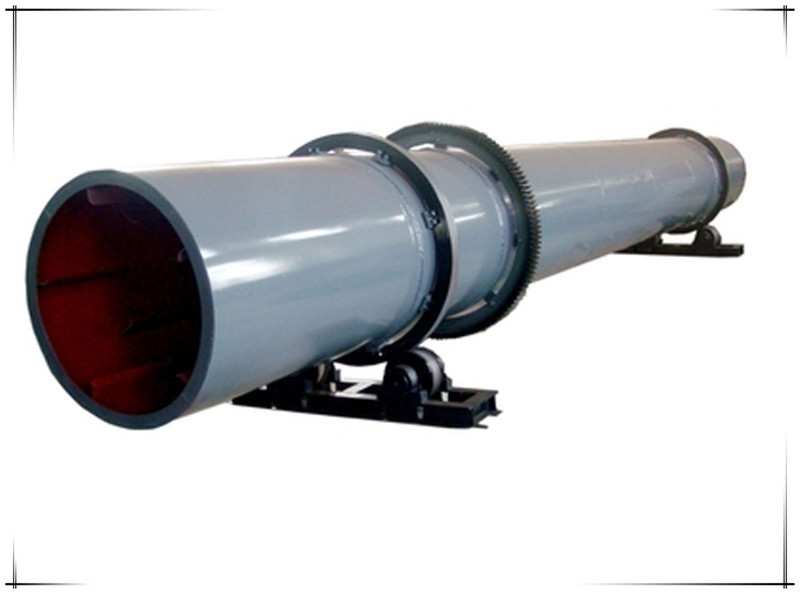

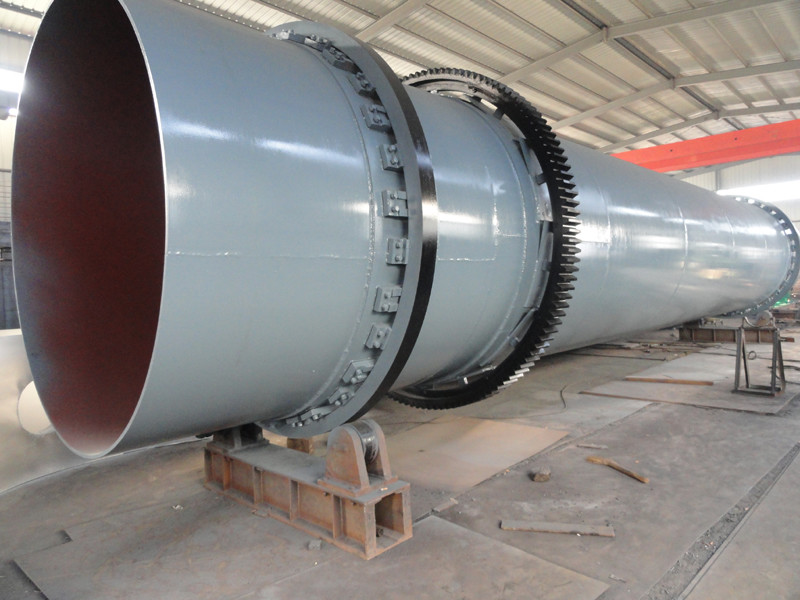

The rotary dryer is mainly composed by the revolving body, lifting plate, driving device, supporting device, sealing ring and other components. So it has the advantages of reasonable structure, perfect in workmanship, high yield, low energy consumption, convenient to operate.
3.Application of rotary dryer:
Rotary dryer can dry many kinds of materials which contain moisture, such as coal, coal slurry, slag, industrial waste, and clay stone. Rotary dryer are widely used in building materials,metallurgy, and chemical industry. Rotary dryer is handling by bringing it into direct contact with a heated gas. The dryer is made up of a large, rotating cylindrical tube,the dryer slopes slightly so that the discharge end is lower than the material feed end in order to convey the material through the dryer under.
4.Working Principle of rotary dryer:
Material to be dried enters the dryer, and as the dryer rotates, the material is lifted up by a series of internal fins lining the inner wall of the dryer. When the material gets high enough to roll back off the fins, it falls back down to the bottom of the dryer, passing through the hot gas stream as it falls. This gas stream can either be moving toward the discharge end from the feed end (known as co-current flow), or toward the feed end from the discharge end (known as counter-current flow). The gas stream can be made up of a mixture of air and combustion gases from a burner, in which case the dryer is called a direct heated dryer. Alternatively, the gas stream may consist of air or another (sometimes inert) gas that is preheated. When the gas stream is preheated by some means where burner combustion gases do not enter the dryer, the dryer known as an indirect-heated type. Often, indirect heated dryers are used when product contamination is a concern.
lope(%) |
rotation speed(r/min) |
input temperature(º C) |
motor power(kw) |
output(t/h) |
weight(t) |
|
Φ 600× 6000 |
3-5 |
3-8 |
≤ 700 |
3 |
0.5-1.5 |
2.9 |
Φ 800× 8000 |
3-5 |
3-8 |
≤ 700 |
4 |
0.8-2.0 |
3.5 |
Φ 800× 10000 |
3-5 |
3-8 |
≤ 700 |
4 |
0.8-2.5 |
4.5 |
Φ 1000× 10000 |
3-5 |
3-8 |
≤ 700 |
5.5 |
1.0-3.5 |
5.6 |
Φ 1200× 10000 |
3-5 |
3-8 |
≤ 700 |
7.5 |
1.8-5 |
14.5 |
Φ 1200× 12000 |
3-5 |
3-8 |
≤ 700 |
11 |
2-6 |
14.8 |
Φ 1500× 12000 |
3-5 |
2-6 |
≤ 800 |
15 |
3.5-9 |
17.8 |
Φ 1800× 12000 |
3-5 |
2-6 |
≤ 800 |
18 |
5-12 |
25 |
Φ 2200× 12000 |
3-5 |
1.5-6 |
≤ 800 |
18.5 |
6-15 |
33 |
Φ 2200× 18000 |
3-5 |
1.5-6 |
≤ 800 |
22 |
10-18 |
53.8 |
