Ball mill grinding machine low noise ceramic ball mill grinding machine
1set
MOQ
4500USD-25000USD
Price
Ball mill grinding machine low noise ceramic ball mill grinding machine
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Henan Province, China
Brand Name: Berno
Certification: ISO
Model Number: Ø900×1500
Payment & Shipping Terms
Packaging Details: standard container
Delivery Time: 20 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 15 sets per month
port: Shanghai, Qingdao
Specifications
Condition: New
Application: Mining
Color: Customized
Capacity: 1-60t/h
Raw Material: Cement, Ore
Feeding Size: Less Than 25mm
Discharge Size: 0.074-0.4mm
Motor Power: 15-90kw
Product Description

Ball mill grinding machine low noise ceramic ball mill grinding machine



Our company mainly produces two kinds of ball mills, energysaving ball mill and dry type ball mill. Mining grinding ball mill for ore, cement clinker, gypsum, glass, etc.

It changed the original ball mill structures, and make ball mill shell and underframe be inergrated together. It can be placed on building foundation directly one-off in installation. Main shaft adopts double centripital spherical rolling bearings, which can lower energy consumption 30%. The discharge type changed from orinigial lattice force discharging into overflow control discheging, which can improve grinding size, and increase capacity 15-20%.

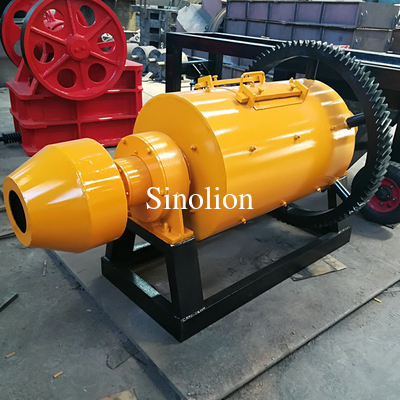

Ball mill grinding machine low noise ceramic ball mill grinding machine 0

Ball Mill

1) It is an efficient tool for grinding many materials into fine powder.
2) The ball mill is used to grind many kinds of mine and other materials, or to select the mine
3) Ball mill is widely used in building material, and chemical industry.
4) There are two ways of grinding: the dry way and the wet way.
5) Ball mill can be divided into tabular type and flowing type according to differentexpelling mine
6) To use the ball mill, the material to be ground is loaded into the neoprene barrel that contains grinding media.
7) As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the  product into fine powder over a period of several hours.
8) The longer the ball mill runs, the finer the powder will be.
9) Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the ball mill runs.

10) Our ball mills have been used to grind glass, powder food products, create custom varnishes, make ceramic glaze, powder various chemicals.

11) Completely enclosed welded design in high-grade steel.
12) Direct drive via bearing journal with top-mounted gearbox.
      Motor connected to gearbox via a V-belt drive.

The quality guarantee is 12 months after finishing the trial run of machines which has been shipped to the buyer side. If any part (excluding easily damaging parts) is found defective in quality within warranty period, we would like to replace it for free. After warranty, spare parts can be replaced based on favorable price.

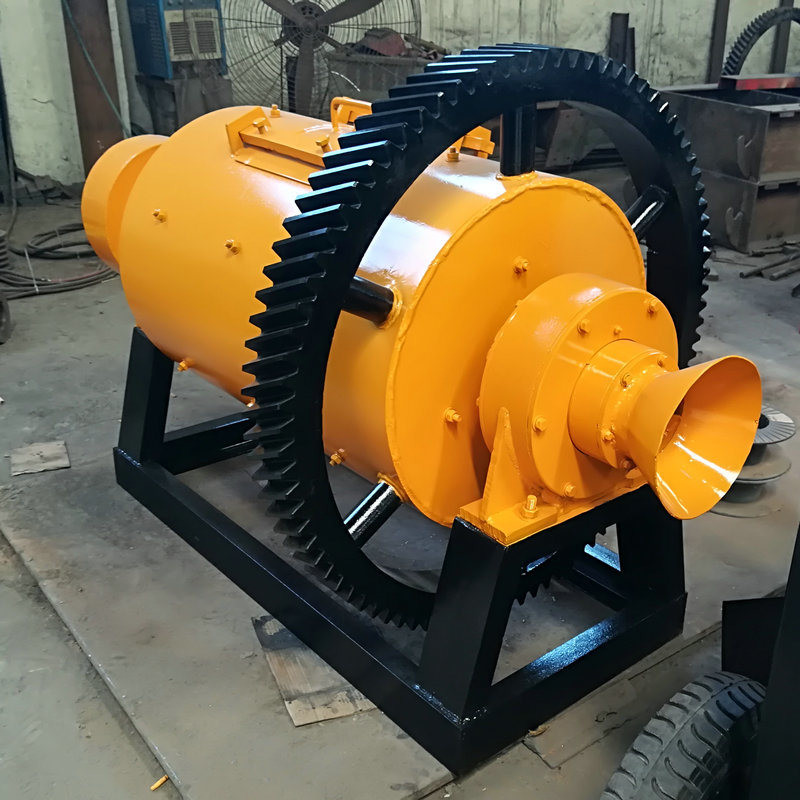

Ball mill grinding machine low noise ceramic ball mill grinding machine 1

Main parameters of Ball Mill

Model

Cylinder rotary speed

(r/min)

Loading ball weight

(t)

Input size

(mm)

Discharge size

(mm)

Capacity

(t/h)

Motor power

(kw)

Weight

(t)

Ø900×1800

39

1.5

≤20

0.075-0.89

0.8-2

18.5

4.6

Ø1200×3000

36

3.5

≤25

0.074-0.4

1.6-5

37

12.8

Ø1200×4500

32

5

≤25

0.074-0.4

1.6-5.8

55

13.8

Ø1500×3000

27

7.5

≤25

0.074-0.4

2-5

75

15.6

Ø1500×5700

28

12

≤25

0.074-0.4

3.5-6

130

24.7

Ø1830×3000

25

11

≤25

0.074-0.4

4-10

130

28

Ø1830×6400

24

21

≤25

0.074-0.4

7-16

210

34

Ø1830×7000

24

23

≤25

0.074-0.4

8-18

245

36

Ø2100×3600

23

19

≤25

0.074-0.4

10-36

210

46

Ø2200×4500

21

27

≤25

0.074-0.4

12-23

280

48.5

Ø2200×6500

21

35

≤25

0.074-0.4

14-26

380

52.8

Ø2200×7000

21

35

≤25

0.074-0.4

15-28

380

54

Ø2200×7500

21

35

≤25

0.074-0.4

15-30

380

56

Ø2400×4500

21

30

≤25

0.074-0.4

18-45

320

65

Ø2400×8000

20

36

≤25

0.074-0.4

20-48

410

81

Ø2700×3600

21

39

≤25

0.074-0.4

19-75

400

83

Ø2700×4000

20

40

≤25

0.074-0.4

20-78

400

85

Ø2700×4500

20

48

≤25

0.074-0.4

22-85

430

89

Ø3200×4500

18

65

≤25

0.074-0.4

29-140

800

137

Ø3200×5400

18

81.6

≤25

0.074-0.4

30-180

800-1000

146

Ø3600×4500

17

88

≤25

0.074-0.4

35-210

1000

190

Ø3600×6000

17

117

≤25

0.074-0.4

38-240

1250-1500

220

Ø3600×8500

17

144

≤25

0.074-0.4

45-260

1800

260

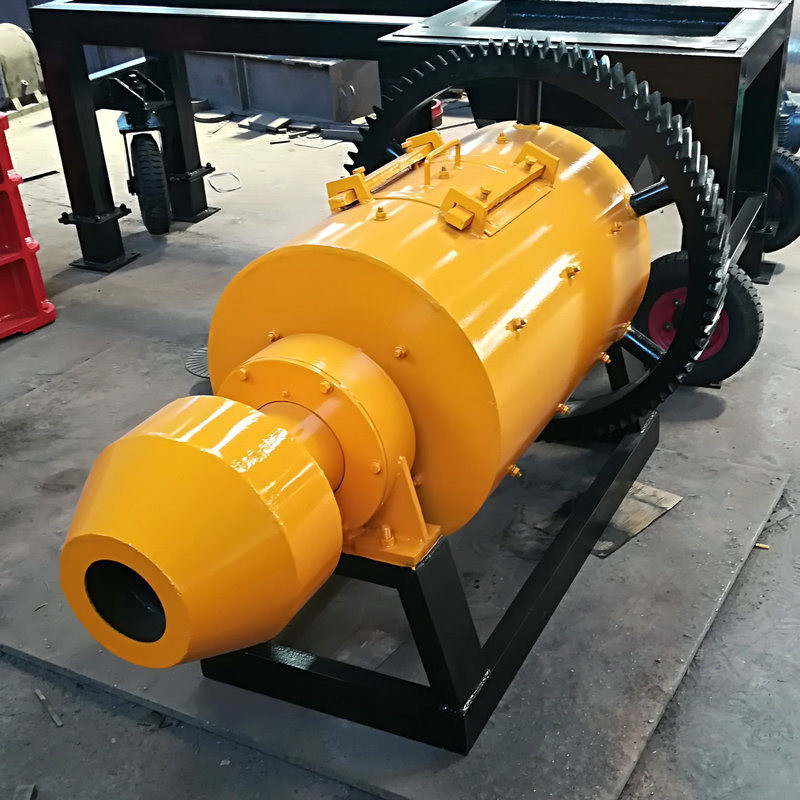

Ball mill grinding machine low noise ceramic ball mill grinding machine 2

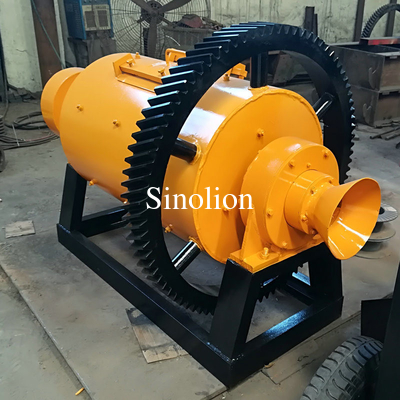

Ball mill grinding machine low noise ceramic ball mill grinding machine 3
