Product Details:
Payment & Shipping Terms:
|
Condition: | New | Application: | Mining |
---|---|---|---|
Color: | Customized | Capacity: | 1-60t/h |
Raw Material: | Cement, Ore | Feeding Size: | Less Than 25mm |
Discharge Size: | 0.074-0.4mm | Motor Power: | 15-90kw |

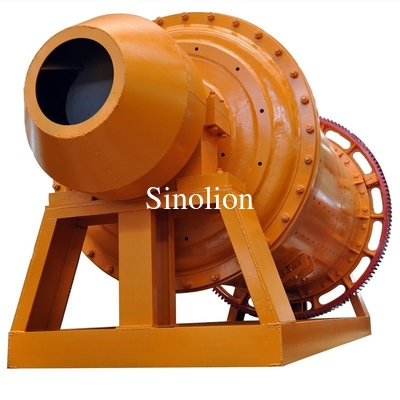

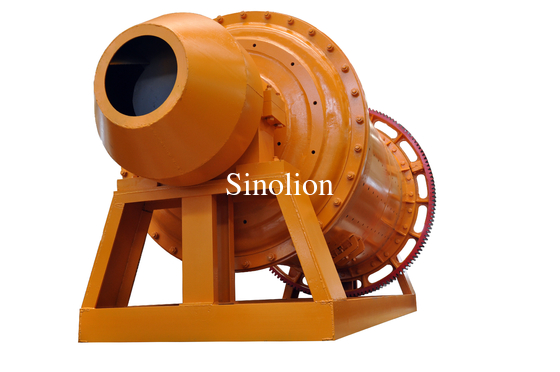

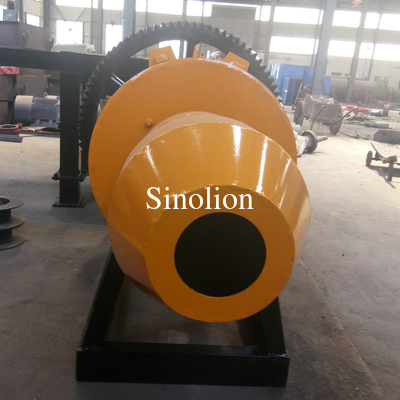

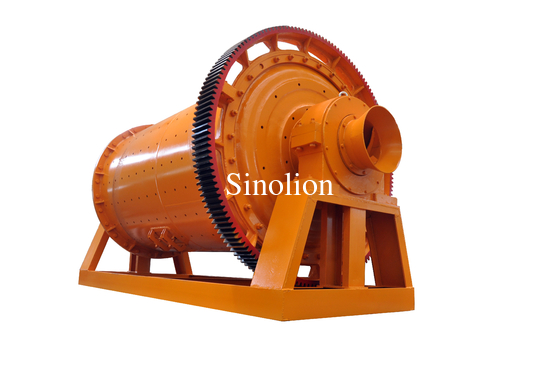

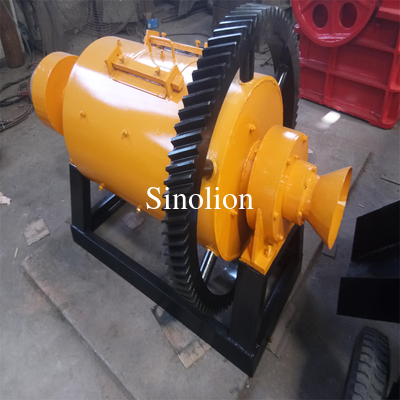

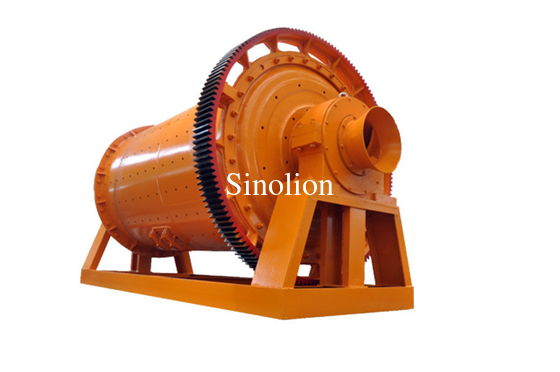

Industrial gold pant production line ball mill refiner machine for sale
Our company mainly produces two kinds of ball mills, energysaving ball mill and dry type ball mill. Mining grinding ball mill for ore, cement clinker, gypsum, glass, etc.
It changed the original ball mill structures, and make ball mill shell and underframe be inergrated together. It can be placed on building foundation directly one-off in installation. Main shaft adopts double centripital spherical rolling bearings, which can lower energy consumption 30%. The discharge type changed from orinigial lattice force discharging into overflow control discheging, which can improve grinding size, and increase capacity 15-20%.
Ball Mill
1) It is an efficient tool for grinding many materials into fine powder.
2) The ball mill is used to grind many kinds of mine and other materials, or to select the mine
3) Ball mill is widely used in building material, and chemical industry.
4) There are two ways of grinding: the dry way and the wet way.
5) Ball mill can be divided into tabular type and flowing type according to differentexpelling mine
6) To use the ball mill, the material to be ground is loaded into the neoprene barrel that contains grinding media.
7) As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.
8) The longer the ball mill runs, the finer the powder will be.
9) Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the ball mill runs.
10) Our ball mills have been used to grind glass, powder food products, create custom varnishes, make ceramic glaze, powder various chemicals.
11) Completely enclosed welded design in high-grade steel.
12) Direct drive via bearing journal with top-mounted gearbox.
Motor connected to gearbox via a V-belt drive.
The quality guarantee is 12 months after finishing the trial run of machines which has been shipped to the buyer side. If any part (excluding easily damaging parts) is found defective in quality within warranty period, we would like to replace it for free. After warranty, spare parts can be replaced based on favorable price.
Main parameters of Ball Mill
Model |
Cylinder rotary speed (r/min) |
Loading ball weight (t) |
Input size (mm) |
Discharge size (mm) |
Capacity (t/h) |
Motor power (kw) |
Weight (t) |
Ø900×1800 |
39 |
1.5 |
≤20 |
0.075-0.89 |
0.8-2 |
18.5 |
4.6 |
Ø1200×3000 |
36 |
3.5 |
≤25 |
0.074-0.4 |
1.6-5 |
37 |
12.8 |
Ø1200×4500 |
32 |
5 |
≤25 |
0.074-0.4 |
1.6-5.8 |
55 |
13.8 |
Ø1500×3000 |
27 |
7.5 |
≤25 |
0.074-0.4 |
2-5 |
75 |
15.6 |
Ø1500×5700 |
28 |
12 |
≤25 |
0.074-0.4 |
3.5-6 |
130 |
24.7 |
Ø1830×3000 |
25 |
11 |
≤25 |
0.074-0.4 |
4-10 |
130 |
28 |
Ø1830×6400 |
24 |
21 |
≤25 |
0.074-0.4 |
7-16 |
210 |
34 |
Ø1830×7000 |
24 |
23 |
≤25 |
0.074-0.4 |
8-18 |
245 |
36 |
Ø2100×3600 |
23 |
19 |
≤25 |
0.074-0.4 |
10-36 |
210 |
46 |
Ø2200×4500 |
21 |
27 |
≤25 |
0.074-0.4 |
12-23 |
280 |
48.5 |
Ø2200×6500 |
21 |
35 |
≤25 |
0.074-0.4 |
14-26 |
380 |
52.8 |
Ø2200×7000 |
21 |
35 |
≤25 |
0.074-0.4 |
15-28 |
380 |
54 |
Ø2200×7500 |
21 |
35 |
≤25 |
0.074-0.4 |
15-30 |
380 |
56 |
Ø2400×4500 |
21 |
30 |
≤25 |
0.074-0.4 |
18-45 |
320 |
65 |
Ø2400×8000 |
20 |
36 |
≤25 |
0.074-0.4 |
20-48 |
410 |
81 |
Ø2700×3600 |
21 |
39 |
≤25 |
0.074-0.4 |
19-75 |
400 |
83 |
Ø2700×4000 |
20 |
40 |
≤25 |
0.074-0.4 |
20-78 |
400 |
85 |
Ø2700×4500 |
20 |
48 |
≤25 |
0.074-0.4 |
22-85 |
430 |
89 |
Ø3200×4500 |
18 |
65 |
≤25 |
0.074-0.4 |
29-140 |
800 |
137 |
Ø3200×5400 |
18 |
81.6 |
≤25 |
0.074-0.4 |
30-180 |
800-1000 |
146 |
Ø3600×4500 |
17 |
88 |
≤25 |
0.074-0.4 |
35-210 |
1000 |
190 |
Ø3600×6000 |
17 |
117 |
≤25 |
0.074-0.4 |
38-240 |
1250-1500 |
220 |
Ø3600×8500 |
17 |
144 |
≤25 |
0.074-0.4 |
45-260 |
1800 |
260 |
