2021 Popular Cow Dung Dryer Entire Drying Rotary Dryer Process Dryer
USD 10000-20000/set
2021 Popular Cow Dung Dryer Entire Drying Rotary Dryer Process Dryer
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: Henan Province, China
Brand Name: Berno
Certification: CE,ISO
Model Number: 1.5*12
Payment & Shipping Terms
Packaging Details: standard container
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10 sets per month
Material: Steel Or Stainless Steel
Color: Blue
Customization: Customized
Type: Rotary Drying Equipment
Discount: 5% Or More
Condition: New
Heating Method: Indirect Heating
Product Description

2021 Popular Cow Dung Dryer Entire Drying Rotary Dryer Process Dryer


        Product Description

Drum dryer is mainly composed of hot blast stove, belt feeding machine, drum dryer, belt discharging machine, induced draft fan, cyclone dust collector, bag filter (or wet dust collector) and operation control system. Equipment used downstream drying process, its working principle is as follows: wet material after entering drying drum divided into the following workaround: one is the feeding area, the coal into the area exchanged with high temperature and hot air quickly evaporate moisture, the material in large Angle of guide plate copy, to be imported under a workspace;2 The copy plate area, the coal in this area is copying by copy board forming curtain material, the material with good contact with hot air, the moisture in coal rapid evaporation become water vapor, water vapor was siphoned off by induced draft fan, so as to achieve the aim of coal drying;The moisture of coal in this area is less than 15% (or less) under the state of loose, after heat exchange the materials achieve the required moisture state, and discharging out;Three is a discharging area, do not set copy plate roller in the region, the material in this area scroll taxiing to the discharge port, then complete the whole drying process.


Detailed Photos

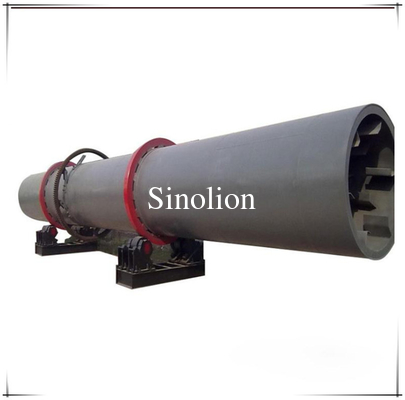

2021 Popular Cow Dung Dryer Entire Drying Rotary Dryer Process Dryer 0

Working Principle

Material to be dried enters the dryer, and as the dryer rotates, the material is lifted up by a series of internal fins lining the inner wall of the dryer. When the material gets high enough to roll back off the fins, it falls back down to the bottom of the dryer, passing through the hot gas stream as it falls. This gas stream can either be moving toward the discharge end from the feed end (known as co-current flow), or toward the feed end from the discharge end (known as counter-current flow). The gas stream can be made up of a mixture of air and combustion gases from a burner, in which case the dryer is called a direct heated dryer. Alternatively, the gas stream may consist of air or another (sometimes inert) gas that is preheated. When the gas stream is preheated by some means where burner combustion gases do not enter the dryer, the dryer known as an indirect-heated type. Often, indirect heated dryers are used when product contamination is a concern.


Product Parameters


Packaging & Shipping

The dryer will start shipping within 30 days after payment. It will be packed in a standard export container, and its main motor and spare parts will be placed in a sealed waterproof wooden box. We guarantee that the rotary dryer will be delivered to you quickly and safely.


Company Profile

♥Zhengzhou Berno Machinery Co., Ltd. is a high-tech Company which professional manufacturing the production of briquette equipment, building material equipment, and mining machinery.
♥After 30years of development, Berno machinery is now setting up branches, integrating engineering, trade, research and development, production and sale to develop to be a large sized enterprise.

♥Berno machinery has modern standard workshops, as well as advanced technology and testing equipment. Extensively cooperating with coal research institutions and other research departments,
Now, 10,000-300,000 tons briquette production lines are renowned in domestic and foreign markets, Our products have been exported to Indonesia, Kazakhstan, Vietnam, North Korea, Egypt and other countries and regions. It is ideal equipment for briquette mine power in the world market.

Q1: In order to provide you with a suitable quotation, we need to know the following information: Answer:
1. What are the raw materials of the production line?
2. How much capacity do you need per hour?
3. What is the maximum input of raw materials?
4. What is the output and use of the final product?
After we receive your reply, we will provide you with the best quotation immediately.
Note: The price will depend on different models. According to the news, you will get a 5% discount.
Q2: How about the product warranty?
Answer: Berno Machinery provides our customers with a twelve-month warranty for machines exported from us from the date of shipment. During the warranty period, if defects in materials or workmanship occur during normal operation, we will, at our discretion, replace or repair defective parts at no cost.
Q3: Why did you choose Berno Machinery?
Answer: 1. Professional manufacturer, providing mine crushing equipment, construction equipment, ore dressing equipment and mine dryer. 2. Experienced and professional R & D team and manufacturing team; 3. The professional sales team is composed of dedicated, energetic and innovative personnel with international standards. 4. Professional logistics services to ensure safe and timely delivery of products worldwide by sea, air, road and railway.

After Sales Service

1. 24 hours online consult and service
2. Introduce the product to the customer in detail, answer the question raised by customer carefully;
3. Make different plans for choice according to the needs and requirements of customers;
After-sale Service
1. Help to install and debug the equipment;
2. Provide 24 hours techincal support by e-mail or phone;
3. Keep sufficient replaceable spare parts;
4. Help customers slove any other questions about products or other aspect;
5. Establish long-term and friendly relationship.
Service Commitment
1. We will provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
2. Consultant services for whole machine life, 24 hours technical support by email and telephone.
3. Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.

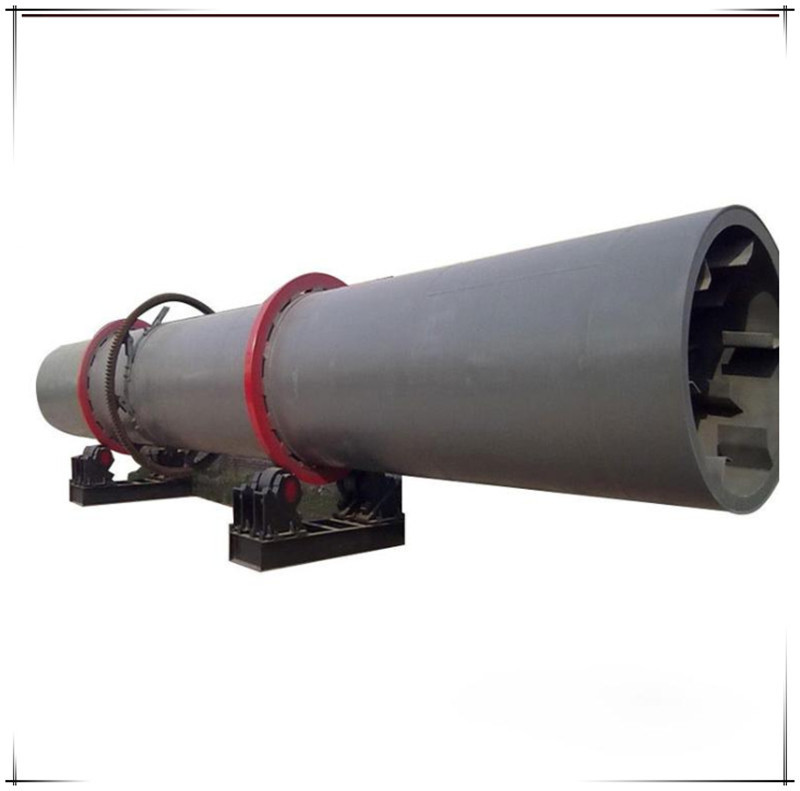

2021 Popular Cow Dung Dryer Entire Drying Rotary Dryer Process Dryer 1


1. New technology of indirect-drying structure, the working process is very safe and health.

2. Biofuels stove, has a high environmental protection effect.

3. High thermal efficiency, the thermal efficiency can reach 60%.

4. Multi-tube structure to avoid material agglomeration and uniform drying.

5. Construction investment reduces 50%, power consumption reduces 60%.

6. Adopts roller rotation, no need reducer.

7. Hot air stove can supporting fluidezed bed, spray stove, hands burned furnace, also used in fuel and gas type, can bake the below 20 mm pieces of materials, aggregates, powder material.

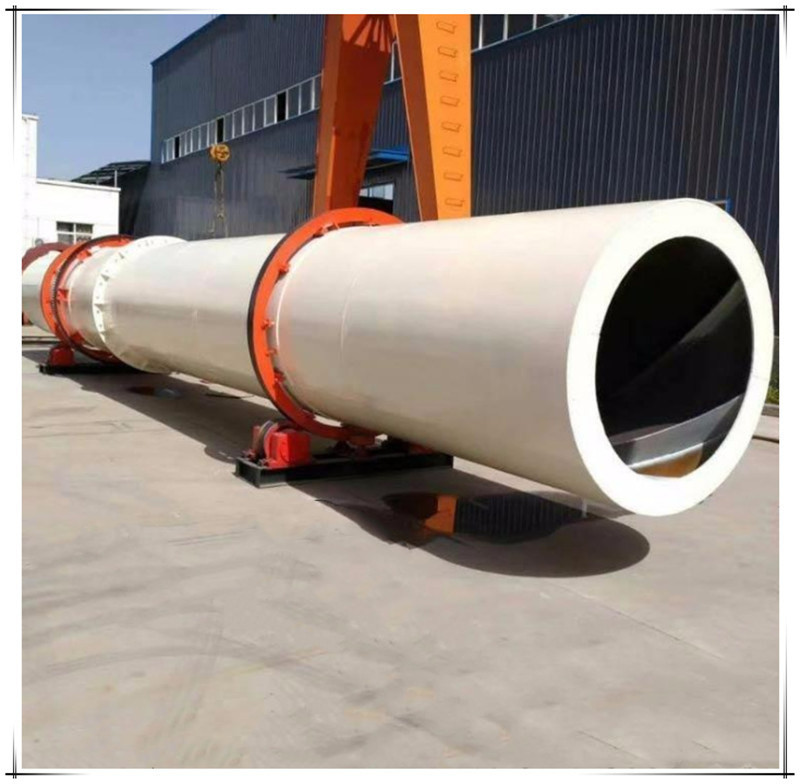

2021 Popular Cow Dung Dryer Entire Drying Rotary Dryer Process Dryer 2

Technical parameters

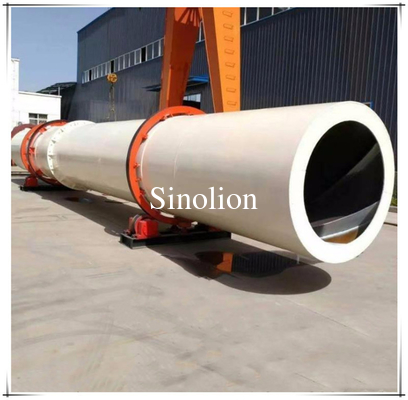

2021 Popular Cow Dung Dryer Entire Drying Rotary Dryer Process Dryer 3


Contact us:

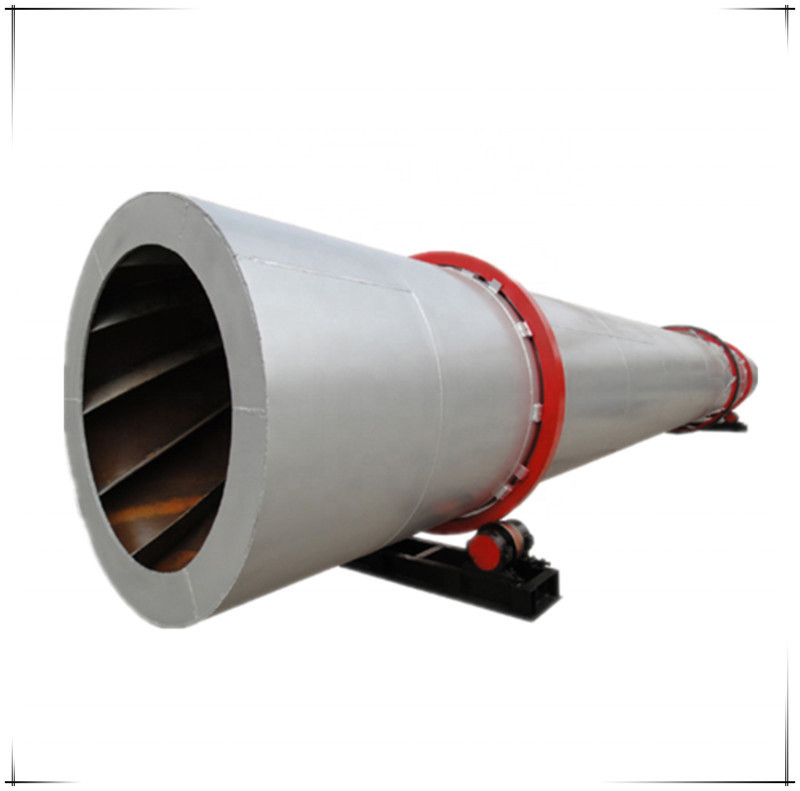

2021 Popular Cow Dung Dryer Entire Drying Rotary Dryer Process Dryer 4

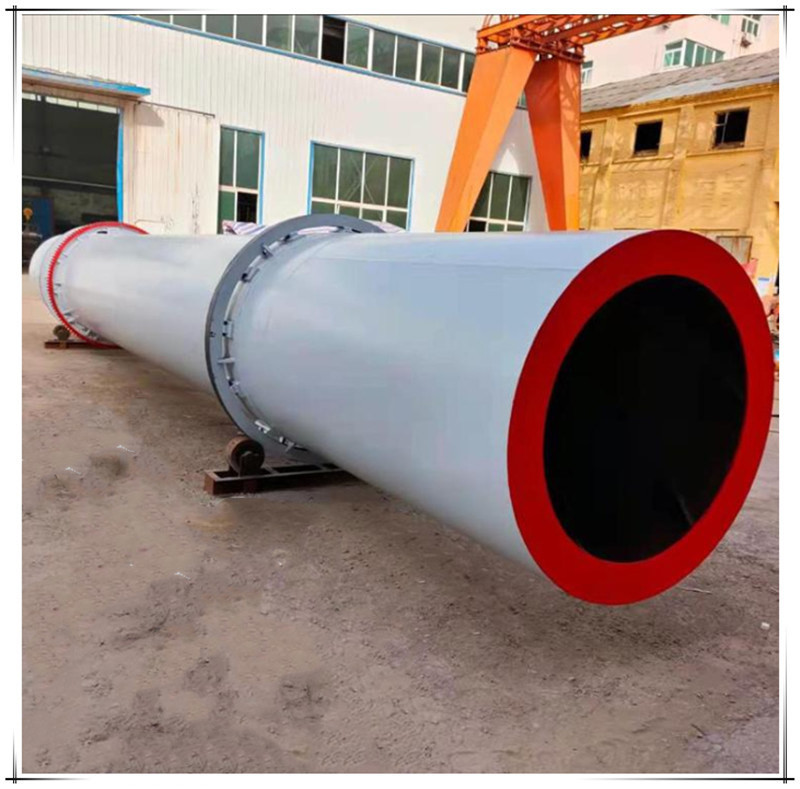

2021 Popular Cow Dung Dryer Entire Drying Rotary Dryer Process Dryer 5
