Without installation continuous charcoal ball briquettes dryer
Without installation continuous charcoal ball briquettes dryer
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: Henan Province, China
Brand Name: Berno
Certification: CE, SGS
Model Number: WD6, WD8,WD10, WD12, WD14, WD16,WD18, WD20
Payment & Shipping Terms
Packaging Details: standard container
Delivery Time: 25 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10sets per month
Voltage: 220V 50HZ,380V/220V,380V/50HZ
Power(w): Based
Condition: New
Weight: 2.9-104.9t
Warranty: 1 Year
Type: Vacuum Drying Equipment
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Overseas Third-party Support Available
Dimension(l*w*h): Varied
Application: Food Processing,Medicine Processing,Pharmaceutical
Name: Creative Lab Vacuum Drying Oven Equipment With Ce Certificated
Capacity: 0.5-45T/H
Installation: Under Technician's Guidance,Engineer Guide
Color: Customized
Heating Source: Electricity / Coal / Natural Gas / Diesel
Material: SS304/SS316L,Q235,Stainless Steel
Raw Material: Carbon Steel
Usage: Reduce Material's Moisture
Product Description

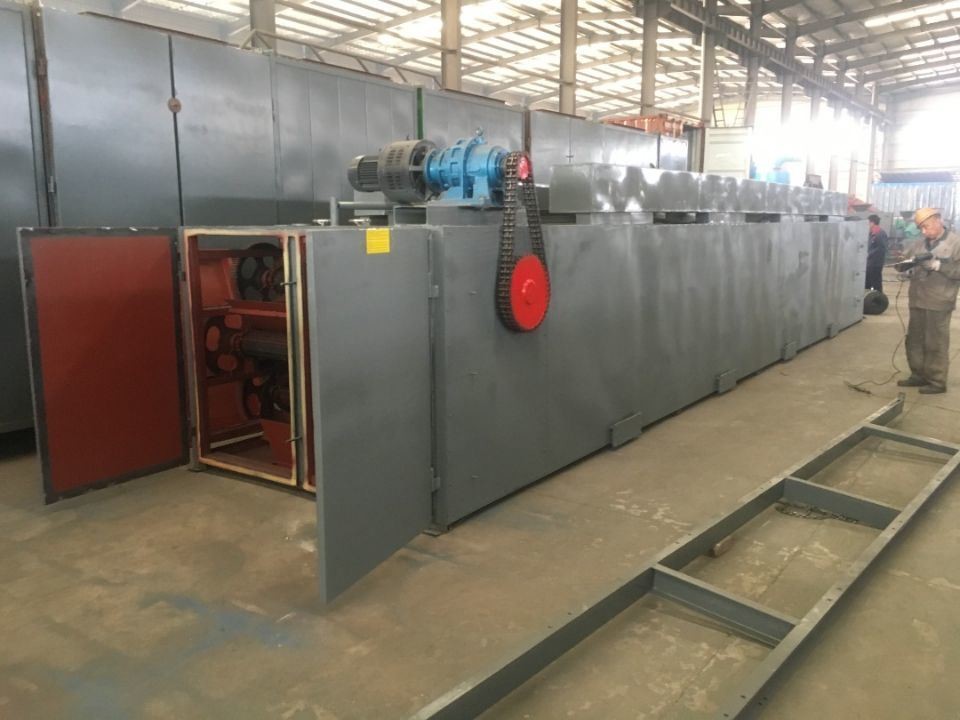

Without installation continuous charcoal ball briquettes dryer 0
Without installation continuous charcoal ball briquettes dryer
Product Description

Mesh belt dryer is one kind of batch, tunnel type continuous production drying equipment, Mainly used for better breathability platy,strip and bulk material drying process. Heating source is power,steam and hot air. Main principle is to lay material on mesh belt evenly first, and then mesh belt is dragged by transmission device to move back and forward inside dryer, Hot air flow up and pass through material ,water vapor get out from vent hole, finally reach to drying purpose
Mesh belt dryer/ drying oven used for coal, charcoal, matched for briquette production line to dry briquettes products, This dryer will be Installed after the briquetting machine, conveyor the completed briquette products to the mesh belt dryer/drying oven. The dryer consisted by several segments and each part with 2m length, the total length of each part from head to tail is 2.5m.

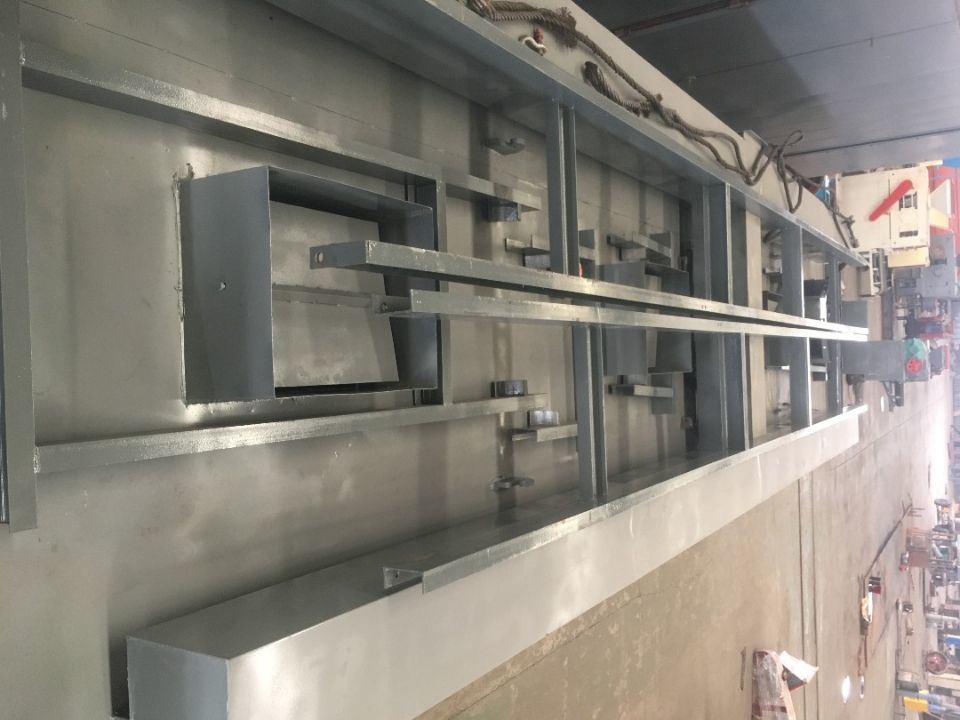

Without installation continuous charcoal ball briquettes dryer 1

♥Features of Mesh belt dryer
1. Compared with the vertical dryer, the land occupation is small, the wet ball breakage rate is low;

2. More efficient, more productive, and save investment costs;

3. High drying strength, good drying effect, which is good for improving product strength and preventing burning when drying

4. Modular unit design for easy transportation and assembly;

Product Parameters
Type WD6 WD8 WD12 WD16 WD18 WD20 WD24
Conveying width(mm) 600 800 1200 1600 1800 2000 2400
drying length(m) 7-13 7-13 9-17 13-25 13-35 15-37 17-41
Transmission Power (kw) 1.1-2.2 2.2-3 2.3-3 3-4 4-5.5 5.5-7.5 7.5-11
layers 1-8
Material distribution 90-200 kg/m2
Input moisture 12%-18%
Output Moisture 1%-5%
Temperature Carbon steel <200 celsius degree, Stainless steel <280 celsius degree
Heating source Hot air (coal, oil, gas, power)
Moving speed 0.04-4m/min
Auxiliary equipment Conveyor, Heating source, Furnace, Dust collector, Draft fan
Remarks Customized
More briquette machine show

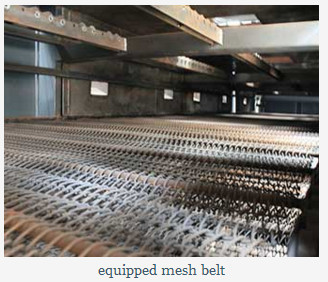

Without installation continuous charcoal ball briquettes dryer 2


Packaging & Shipping

♥Standard export packing,
♥The loading port is Qingdao Port, also can be requested by customer. We have superior cargo agent to arrange the sea shipment for each client, competitive price, secure transportation.

♥All products will be processed to be rustproof and moisture proof before delivery.
♥20GP container or 40GP container Equipment is packed with plastic wrap or steel case, depends on machine weight.
♥Motor is packed with steel case or wooden case.
♥Control panel is packed with wooden case or Plastic packaging
♥Loading container in factory.


Company Profile

Zhengzhou Berno Machinery Co., Ltd. is a high-tech Company which professional manufacturing the production of briquette production line equipment and mining machinery.
After 30years of development, Sinolion is now setting up branches, integrating engineering, trade, research and development,

Zhengzhou Berno have modern standard workshops, as well as advanced technology and testing equipment. Extensively cooperating with coal research institutions and other research departments,Now, 10,000-300,000 tons briquette production lines are renowned in domestic and foreign markets, Our products have been exported to Indonesia, Kazakhstan, Vietnam, North Korea, Egypt and other countries and regions. It is ideal equipment for briquetting mine power in the world market.

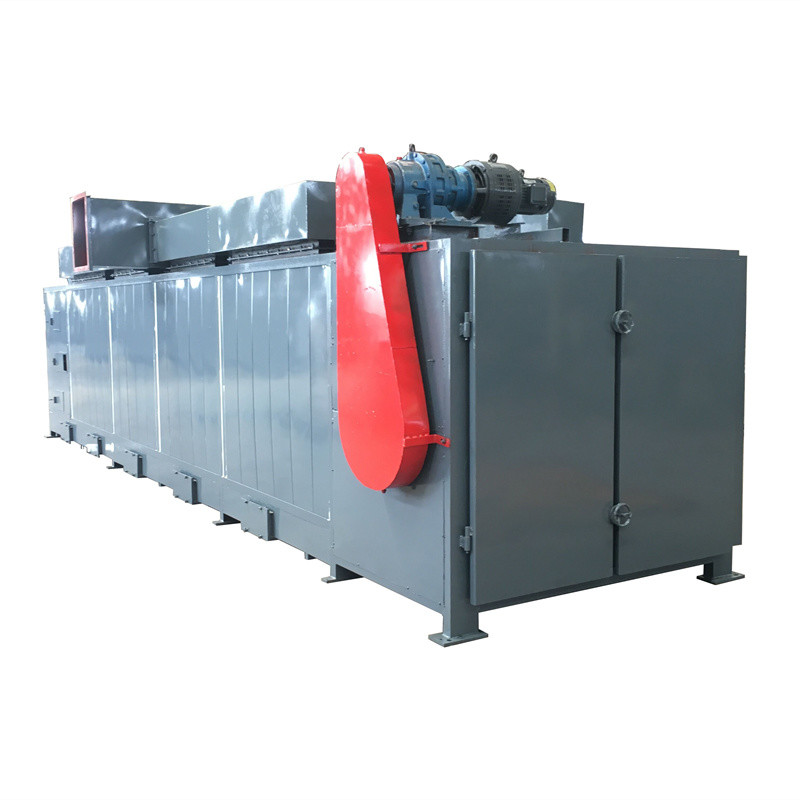

Without installation continuous charcoal ball briquettes dryer 3


Q. What kind of material can be dried by mesh belt dryer machine?
Answer: Nearly all kinds of lump and chips material can be dried by our machine such as wood chips, leaves, coal briquettes, charcoal briquettes, iron pellets, etc.

Q.What kind of fuel can be used with the mesh belt dryer machine?
Answer: Diesel, natural gas, coal, wood chips and other kind of fuel are OK.

Q.What's the drying temperature of the mesh belt dryer?
Answer:Drying temperature of the dryer is adjustable. It varies from 50 to 350 °C.

Q.How long will the briquettes stay in the briquette mesh belt dryer machine?
Answer:Normally the drying time will be about 50-120 minutes.

Q.Is the mesh belt speed adjustable?
Answer: Yes, the mesh belt moving speed is adjustable to make sure it can dry material with different moisture.

contact us

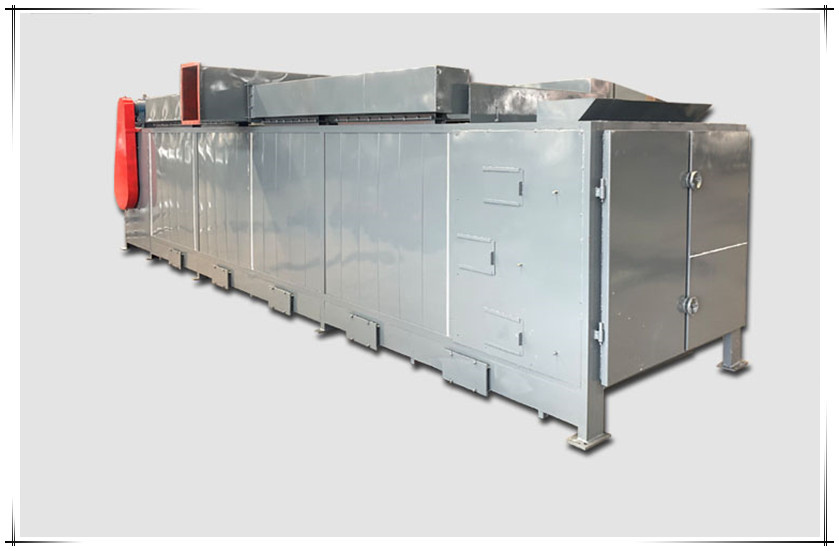

Without installation continuous charcoal ball briquettes dryer 4
