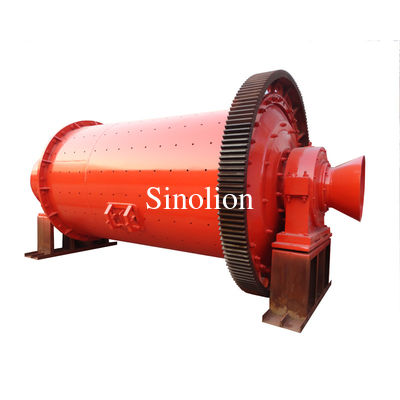

Ball mill machine Zinc ore Rod Mill with high production capacity for sale
Ball mill application
Ball mill is an important equipment to grind the crushed materials which is widely used in powdermaking production line including cement, silicate, newtype building material, refractory material, fertilizer, ore dressing of ferrous metal and nonferrous metal, glass ceramics, etc. Further more, ball mill can grind various ores and other materials with dry type and wet type.There are two types of ball mill, grate type and overfall type seprated by different ways of material discharging. Grate type is a type of grinding mill processes similarly to the sag mill or other mining crushers. Ball Grinding Machine is used to grind or mix metals or raw materials for further processing. Various materials are placed into the mill drum and rotated with the minedmaterials that are to be crushed. The ball mill contains materials meant for crushing and grinding, such as balls of ceramic, smallrocks, or balls made from stainless steel. The internal device of the ball mill grinds material into powderlike substances, and can rotate continuously for optimal grinding and refinery production.
Ball mill strucuture
Ball mill is made up of feedisng part, discharging part, gyre part, transmission part, (decelerator, small transmission gear, motor, electrical control) and so on.
The hollow axis adopts the cast steel and the lining can replace, the rotating big gear processes in the way of casting rolling gear. The barrel body is wearable well and bears wearable scaleboard. This machine run steadily and works reliably.
Ball mill Working Principle
The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
Ball Mill Featurers:
1.Large application range, simple structure and convenient maintenance;
2.Large capacity and continuous work are very obvious;
3.Barrel lining and grinding media can apply various abrasive materials;
4.Installation and adjustment are very convenient and easy to be operated.
Ball mill parameters
|Model||shell rotation speed (r/min)||Ball load (t)||Feeding size(mm)||Discharging size(mm)||Capacity (t/h)||Power (KW)||Weight (T)|
|900×1800||38||1.5||≤20||0.075 -0.89||0.65 -2||18.5||3.6|
|1500 ×3500||27||6.75-6.4||≤25||0.075 -0.4||3-7||75||17.5|
|according to the technology||800||137|
About our company and service
Berno equipment can provide turkey service for customers, such as engineering consultation, engineering design, equipment manufacturing, packing & transportation, installation & commissioning personnel training etc.
About Spare Parts
Berno equipment will be dedicated to provide our customers with genuine spare parts with high quality. With our technological advice, the life cycle of your machine can be prolonged and sustained significantly with high effectiveness.
Berno equipemnt could offer excellent facilities and comfortable environment and training services to different customers. The training should include product training, safety training, operation training, maintenance know-how, technical know-how training, and regulations training, etc. All of the training is customized to fulfill every customer’s expectations. Training programs can be conducted in our workshop, or at customer’s site.
About Installation and Commissioning
Berno equipment are able to guide the overall installation of whole set production line, including crushing production line and cement equipment production line, etc., which will allow you to start the normal operation of equipment immediately. After installation,we will make inspection of the whole machine commissioning and operation condition and provide you testing data report of installation.
You are welcome to our company for visiting and business cooperation. We will provide you the best services and most favorable ball mill price. For more introduction, please contact with me !
