High pressure shisha hydraulic charcoal making machine/machine make briquette
1 set
MOQ
USD 5000-15000 per set
Price
High pressure shisha hydraulic charcoal making machine/machine make briquette
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Berno
Certification: SGS
Model Number: Hydraulic, mechanical
Payment & Shipping Terms
Packaging Details: Wooden case or Standard container
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T
Supply Ability: 25 sets per month
Specifications
Condition: New
Warranty: 1 Year
Type: Briquette Machines,Custom Design
Motor Type: AC Motor,DC Motor,Other,Stepper Motor
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Field Maintenance And Repair Service,Field Installation
Dimension(l*w*h): As Specification Customized
Certification: CE,ISO9001
Power(w): 7.5-15KW
Raw Material: Charcoal Powder,sawdust,Coal.charcoal Powder,coal Dust,etc
Color: Client's Required
Briquette Shape: Round,Round Square Hexagon Pillow,Cylinder-shaped,pentagon And Hexagon With A Hole In The Center
Capacity: 11-40 Pieces/minute
Application: BBQ,Charcoal Briquetting
Name: Briquette Press Machine,shisha Charcoal Briquette Machine,Roller Press Bbq Charcoal Coal Briquette Machine Price
Voltage: 380v,220V/380V/415V/460V
Keyword: Shisha Charcoal Tablet Press Machine/Briquette Making Machine
Product Name: Briquette Press Machine
Product Description

High pressure shisha hydraulic charcoal making machine/machine make briquette



Brief Introduction:

Shisha charcoal machine is specilize in make shisha hookah briquettes. This machine use hydraulic principle, owing to the pressure is very large, so it can press good quality final product, so does the briquette quality is very good, our machine use PLC system, and about the product line, we can achieve all automatic production, of course, if you are beginner, want lower invest, we also can offer you semi-automatic production line. Machine include PLC system, hydraulic cylinder, conveyor, molds and main machine.

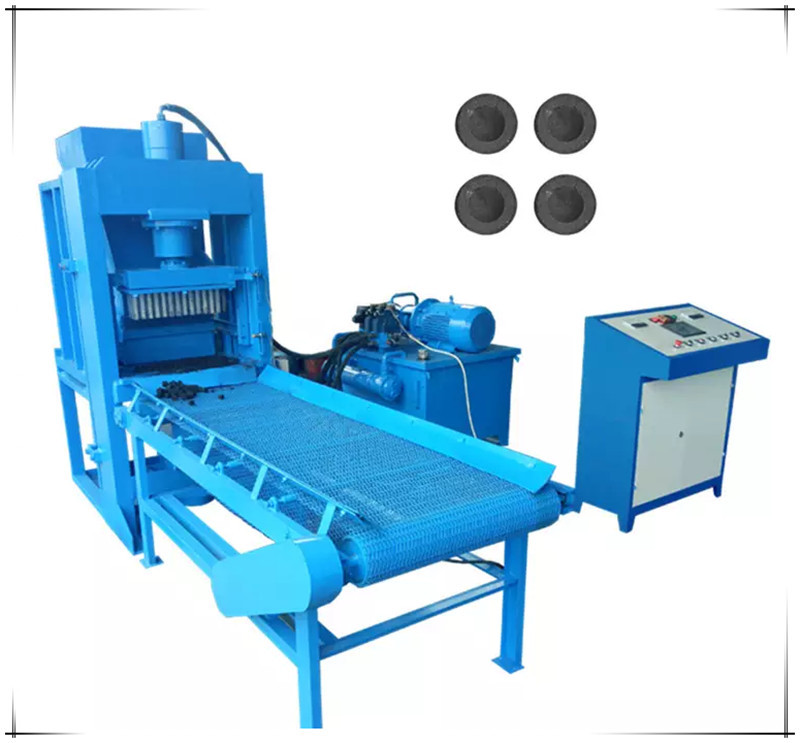

High pressure shisha hydraulic charcoal making machine/machine make briquette 0

Main parameters:

Model SBJ-9 SBJ-48
Applicable materials charcoal powders, coal powders, sawdust, any powders materials
Capacity

11-16 pieces / time

20-40 times/min

48 Pieces per Time (30 mm)

8-20 times/min

Motor 7.5 kw (4 pole) 18.5kw (4 pole)
Diameter of briquettes

20,25,30 33 35 38 40 43 mm(round);

20-40 mm(cubic)

20,25,30 33 35 38 40 43 mm(round);

20-40 mm(cubic)

Feeding materials < 3 mm < 3 mm
Briquettes shape

Round shape and Cubic shape

Or as customers’ request

Round shape and Cubic shape

Or as customers’ request

Pressure 40-60tons(adjustable) 40-150tons
Press type Mechanical Press Hydraulic Press
Overall size

2500x 950x1550 mm

(includes conveyor)

3500*2000*1800mm

(includes conveyor)

Packing size 1500x1200x1750 mm 2100*2100*1900mm
Weight 1500 KG 5500kg



Festures:

(1) NO binder needed during production to make clean & green fuel briquette.
(2) Quantity of heat of final product is 500-1000Kcal higher than raw material.
(3) Can replace firewood and liquefaction gas, with less investment.
(4) Small cubage and easy for transport.
(5) Adopt high-speed, high-frequency stamping technique, ensure the stability of the molding.

shisha charcoal briquette machine Can Make

1.Size and shapes:
1) Size: round: 20-45mm, square: 15-55mm
2) Shape: round, square, restabgle, triangle, cylinder, diamound, cone, etc.
3) The shape of briquettes can be customized.
2. Characteristics:
1) The shisha charcoal briquettes use quick burning charcoal technology, can burn from the top to down.
2) Firepower fierce, smokeless, tasteless, non-toxic, long burning time.
3) Square shape shisha charcoal can burn for about 1-1.5 hours.
4) Round tablet shisha charcoal can burn for about 40 minutes.



Application:



The Shisha tablet press is widely used in refractory, power plants, metallurgy, chemicals, energy, transportation, heating, etc.

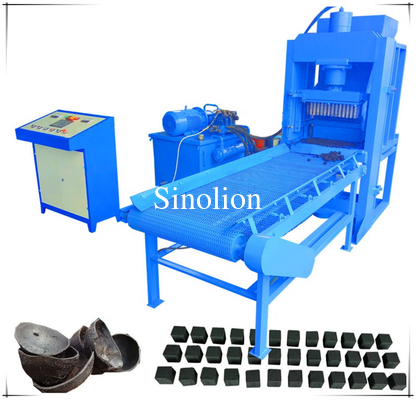

High pressure shisha hydraulic charcoal making machine/machine make briquette 1

Shape and size

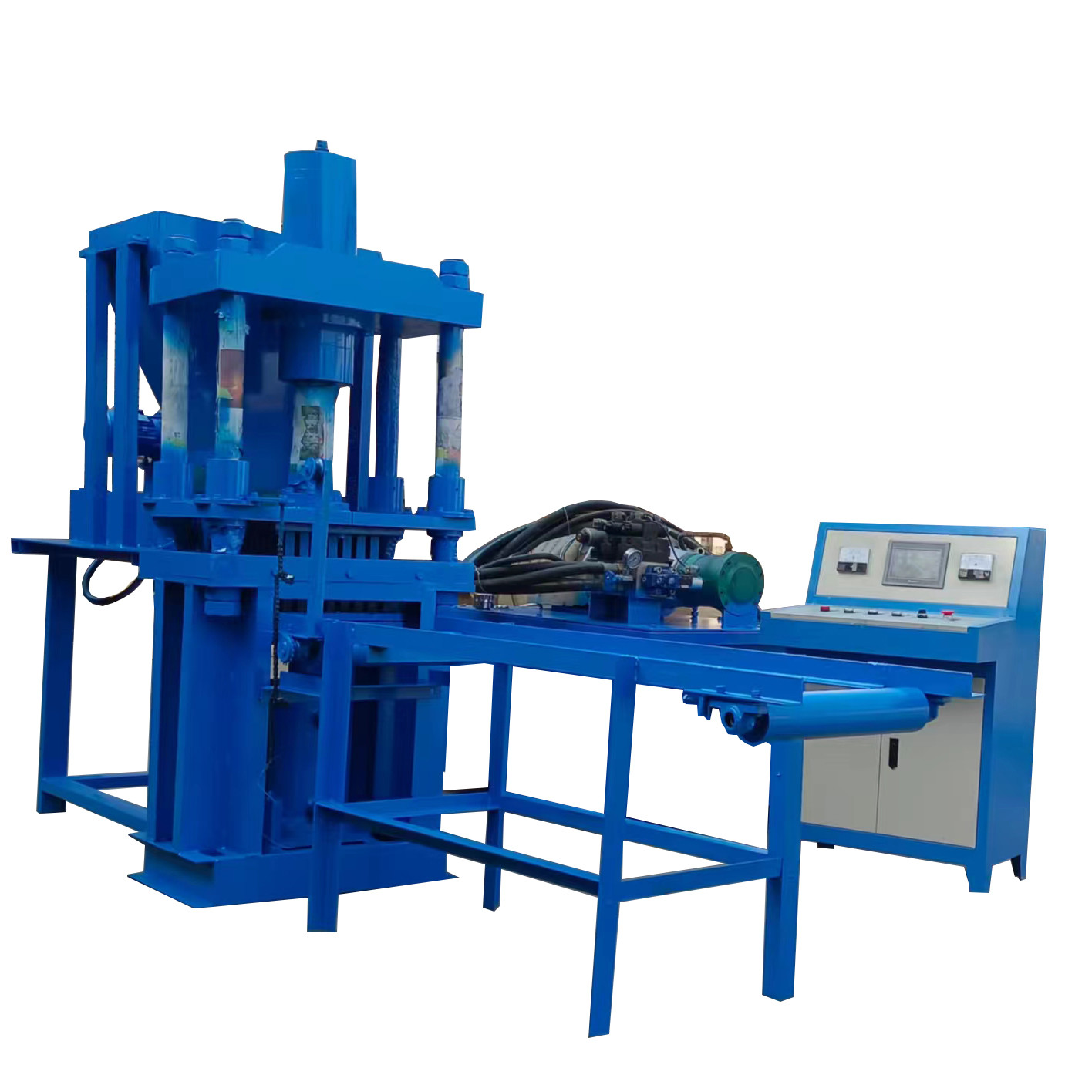

High pressure shisha hydraulic charcoal making machine/machine make briquette 2

Related equipment:

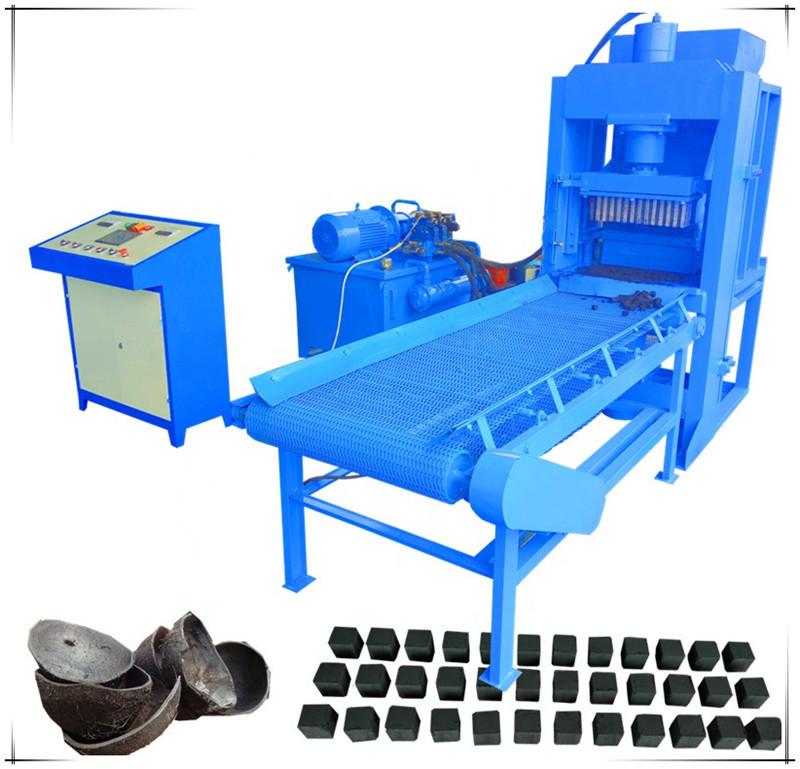

High pressure shisha hydraulic charcoal making machine/machine make briquette 3

If you want to learn more information, please contact us.

High pressure shisha hydraulic charcoal making machine/machine make briquette 4
