Computer Control System of Ball Milling

Computer Control System of Ball Milling

Computer Control System of Ball Milling
Computer Control System of Ball Milling Computer Control System of Ball Milling

Large Image :  Computer Control System of Ball Milling Get Best Price

Product Details:
Place of Origin: Henan Province, China
Brand Name: Sinolion
Certification: ISO, CE
Model Number: 1500*3000
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 10000USD-15000USD
Packaging Details: standard container
Delivery Time: 15 days
Payment Terms: T/T, L/C
Supply Ability: 10sets per month
color: green
Detailed Product Description


Yonghua is a Ball Mill Manufacturer, the ball mill that Zenith produced is high quality and high technology. There are two kinds of ball mill, grate type and overfall type due to different ways of discharging material. Ball Mills are used primary for single stage fine grinding. It is the key equipment that repulverizes the material after it is crushed, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, mill run of ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and went pulverization for all kinds of ores and other grindable materials.

Ball Mill Working Principle:

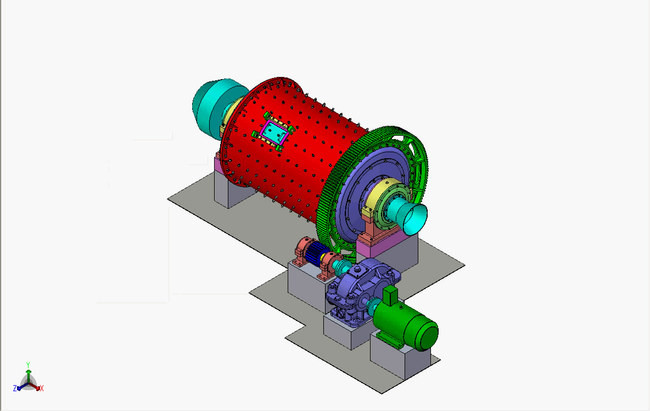

The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
Ball Mill Features:
1) Easy and safe operation
2) Stable performance
3) Even product size
4) Low energy consumption
5) Low invest, high return
Ball Mill Technical Data:


Model

Rotate Speed (r/min)

Grinding Media Weight (T)

Feeding Size(mm)

Discharge Size (mm)

Output(t/h)

Motor Power (KW)

Weight (T)

900×1800

36~38

1.5

≤20

0.075-0.89

0.65-2

18.5

4.6

900×3000

36

2.7

≤20

0.075-0.89

1.1-3.5

22

5.6

1200×2400

36

3

≤25

0.075-0.6

1.5-4.8

30

12

1200×3000

36

3.5

≤25

0.074-0.4

1.6-5

37

12.8

1200×4500

32.4

5

≤25

0.074-0.4

1.6-5.8

55

13.8

1500×3000

29.7

7.5

≤25

0.074-0.4

2-5

75

15.6

1500×4500

27

11

≤25

0.074-0.4

3-6

110

21

1500×5700

28

12

≤25

0.074-0.4

3.5-6

130

24.7

1830×3000

25.4

11

≤25

0.074-0.4

4-10

130

28

1830×4500

25.4

15

≤25

0.074-0.4

4.5-12

155

32

1830×6400

24.1

21

≤25

0.074-0.4

6.5-15

210

34

1830×7000

24.1

23

≤25

0.074-0.4

7.5-17

245

36

2100×3000

23.7

15

≤25

0.074-0.4

6.5-36

155

34

2100×4500

23.7

24

≤25

0.074-0.4

8-43

245

42

2100×7000

23.7

26

≤25

0.074-0.4

8-48

280

50

2200×4500

21.5

27

≤25

0.074-0.4

9-45

280

48.5

2200×6500

21.7

35

≤25

0.074-0.4

14-26

380

52.8
