Overflow type ball mill

Name: Overflow type ball mill
Brand: Sinolion
SKU: Ø1500×3000
Price: 10000 USD
Availability: InStock
Rating: 4.5 (146 reviews)

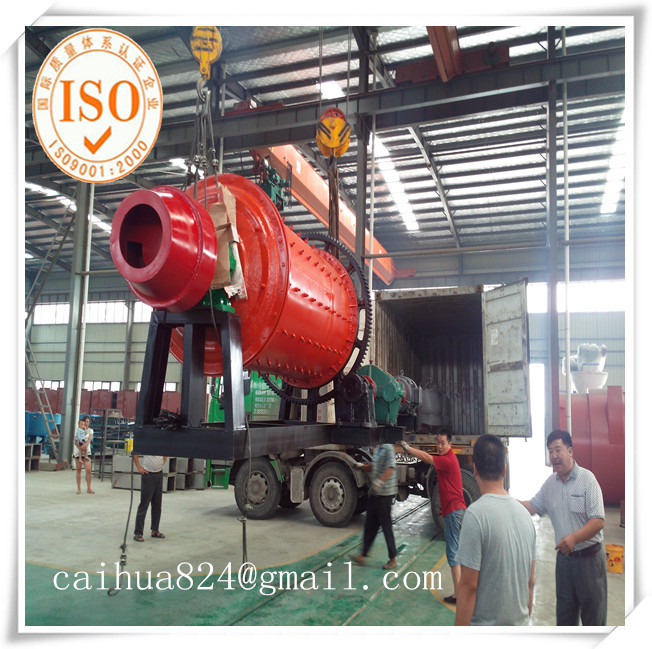

Large Image : Overflow type ball mill Get Best Price

Product Details:

Place of Origin:	Henan Province, China
Brand Name:	Sinolion
Certification:	ISO
Model Number:	Ø1500×3000

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	10000USD-25000USD
Packaging Details:	standard container
Delivery Time:	20 days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	15 sets per month
port:	Shanghai, Qingdao

Contact Now

Detailed Product Description

Overflow Type Ball Mill

Our company mainly produces two kinds of ball mills, energy-saving ball mill and dry type ball mill. Mining grinding ball mill for ore, cement clinker, gypsum, glass, etc.

Overflow Type Ball Mill

The overflow ball mill has relatively simple structure--the advantage of no grate fence, high fineness in grinding, and less ball loading etc. Widely used in the second segment or place of comparably finer product.

When the motor drive the pinion and the big gear rotating, the material will get into the cylinder from the left end through the hollow shaft neck from the material feeding device. The cylinder are loaded certain weight of ball as the grinding media. The material get crushed under the ball function and discharged from the hollow shaft in the material feeding end. As the grinded material get discharged by overflow from the neck, the mill is called overflow type ball mill, a widely used ball mill.

The structure of overflow type is basically the same with the grate one, only with no material discharging grate in the cylinder outlet end. Besides, it has reverse screw blade on the surface of the hollow shaft inner liner cover. It can return the small ball in the slurry and overflowed rough ore back to the mill. As the grinded material get flowed freely from the hollow shaft neck, the slurry level must be higher than the lowest mother line level of the discharging shaft neck. Therefore, it is called high surface slurry mill sometimes. It is of simple structure and easy to maintain. And as it has fine product, it is usually used in grinding the fine ore, that is the size less than 0.2mm or the second segment in the two continuous stages

Main parameters of Overflow Type Ball Mill

Model	Cylinder rotary speed (r/min)	Loading ball weight (t)	Input size (mm)	Discharge size (mm)	Capacity (t/h)	Motor power (kw)	Weight (t)
Ø900×1800	39	1.5	≤20	0.075-0.89	0.8-2	18.5	4.6
Ø1200×3000	36	3.5	≤25	0.074-0.4	1.6-5	37	12.8
Ø1200×4500	32	5	≤25	0.074-0.4	1.6-5.8	55	13.8
Ø1500×3000	27	7.5	≤25	0.074-0.4	2-5	75	15.6
Ø1500×5700	28	12	≤25	0.074-0.4	3.5-6	130	24.7
Ø1830×3000	25	11	≤25	0.074-0.4	4-10	130	28
Ø1830×6400	24	21	≤25	0.074-0.4	7-16	210	34
Ø1830×7000	24	23	≤25	0.074-0.4	8-18	245	36
Ø2100×3600	23	19	≤25	0.074-0.4	10-36	210	46
Ø2200×4500	21	27	≤25	0.074-0.4	12-23	280	48.5
Ø2200×6500	21	35	≤25	0.074-0.4	14-26	380	52.8
Ø2200×7000	21	35	≤25	0.074-0.4	15-28	380	54
Ø2200×7500	21	35	≤25	0.074-0.4	15-30	380	56
Ø2400×4500	21	30	≤25	0.074-0.4	18-45	320	65
Ø2400×8000	20	36	≤25	0.074-0.4	20-48	410	81
Ø2700×3600	21	39	≤25	0.074-0.4	19-75	400	83
Ø2700×4000	20	40	≤25	0.074-0.4	20-78	400	85
Ø2700×4500	20	48	≤25	0.074-0.4	22-85	430	89
Ø3200×4500	18	65	≤25	0.074-0.4	29-140	800	137
Ø3200×5400	18	81.6	≤25	0.074-0.4	30-180	800-1000	146
Ø3600×4500	17	88	≤25	0.074-0.4	35-210	1000	190
Ø3600×6000	17	117	≤25	0.074-0.4	38-240	1250-1500	220
Ø3600×8500	17	144	≤25	0.074-0.4	45-260	1800	260
