rotary driers / maizse driers / drier for cassava

Name: rotary driers / maizse driers / drier for cassava
Brand: Sinolion
SKU: 1200*18000
Price: 7000 USD
Availability: InStock
Rating: 5 (114 reviews)

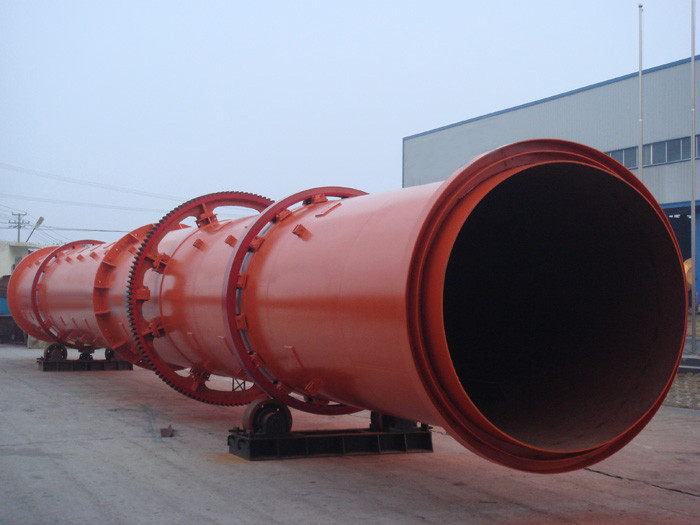

Large Image : rotary driers / maizse driers / drier for cassava Get Best Price

Product Details:

Place of Origin:	Henan Province, China
Brand Name:	Sinolion
Certification:	ISO
Model Number:	1200*18000

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	7000USD-15000USD
Packaging Details:	standard container
Delivery Time:	20 days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	10sets per month

Contact Now

Detailed Product Description

rotary driers / maizse driers / drier for cassava:

1. Structure of rotary drier

Drier also named as Drying Machine and Rotary Drier.Drier is mainly consist of rotary body, raw material feeding plate, driving and supporting device, etc

2. Application of rotary drier

Rotary drier is used to dry slag, clay, limestone, It is mainly used for cement, chemical, metallurgical, building materials industries.

3. Working principle of rotary drier

Its principle of operation: the raw material plate which is arranged reasonably with changeable angles in order, throws moisture materials into the rotary cylinder. Then water will be separated from the materials by hot air-flow and changed into vapour to be discharged into the atmosphere. Then the materials would be dried.

4. Whole set rotary dryer equipments

feeder, bucket elevator, rotary dryer,dust collector, heat resource

5. Technical Parameter:

Model	Basic Parameters					Power(kw)		Production Capacity(t/h)		Weight (kg)
	Inner Diameter (m)	Length(m)	Gradient (%)	Rotate Speed (r/min)
Φ0.6x6	0.6	6	5.0	3-8	3		0.5-2.0		2900
Φ0.8x8	0.8	8	5.0	3-8	4		0.8-2.5		3500
Φ0.8x10	0.8	10	5.0	3-8	4		1.0-3.5		4500
Φ1.0x10	1.0	10	5.0	3-8	5.5		1.5-6		5600
φ1.2×6	1.2	6	5.0	5.8	5.5		8		9380
Φ1.2x8	1.2	8	5.0	5.8	5.5		12		10200
φ1.5×12	1.5	12	5.0	4.8	15		12		16450
Φ1.5x15	1.5	15	5.0	4.8	15		16		18240
φ1.8×12	1.8	12	5.0	4.5	18.5		18		20000
Φ1.8x14	1.8	14	5.0	4.5	18.5		20		21000
φ2.2×12	2.2	12	5.0	4.3	22		22		37100
Φ2.2x14	2.2	14	5.0	4.3	22		28		38830
