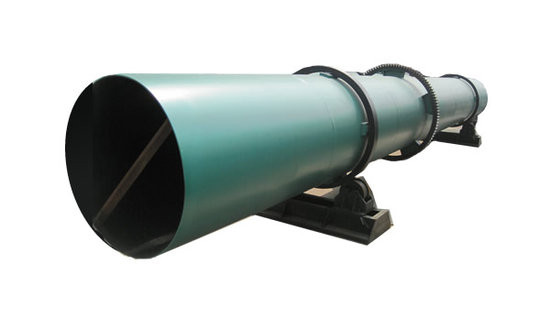

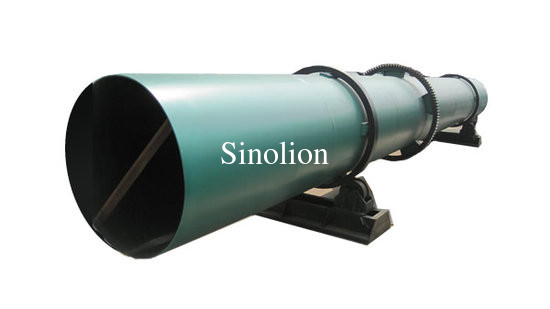

Low Noise and Best Offer Sand Rotary Dryer

Low Noise and Best Offer Sand Rotary Dryer

Low Noise and Best Offer Sand Rotary Dryer
Low Noise and Best Offer Sand Rotary Dryer

Large Image :  Low Noise and Best Offer Sand Rotary Dryer Get Best Price

Product Details:
Place of Origin: Henan Province, China
Brand Name: Sinolion
Certification: ISO
Model Number: 2000*28000
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 6000USD-15000USD
Packaging Details: standard container
Delivery Time: 20 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10sets per month
Detailed Product Description



Low Noise and Best Offer Sand Rotary Dryers pecifications

1.High quality, high efficiency
2.Professional design
3.Reliable performance



Low Noise and Best Offer Sand Rotary Dryer:

Rotary dryer Instruction:

Rotary dryers widely used for drying materials in the industries of cemet, mine, construction, chemical, food, compound fertilizer, etc. Feeding and discharging unit is installed with thermocouple to control drier temperature. The temperature change of drier's feeding end can be indicated by the thermometer to control the inner drier temperature ( generally 250-350°C)



Rotary dryer Structure:

Rotary dryer machine is mainly composed of shell, back and forth supporting wheel, feeding and discharging unit and gear cap. The accessories which are not in the the scope of this machine include firebox, feeding and discharging equipment, dust catcher, etc.



Rotary dryer working principle:

Rotary dryer adopts direct flow type of heating with heat re source from firing unit. The material to be dried is pushed back intermediately by spiral board when enters the shell from feeding tank and feeding chute. Because the drier is installed in slope, material flows to the back end under gravity and rotation force, meanwhile, it is lifted by board repeatedly and thrown down accordingly, which make the material form even curtain, and exchange heat sufficiently with inner the heat flow. In the end, water in the material is dried by repeatedly scattering.



Main Technical Parameters

Type (mm)

Inclinational (%)

rotation speed (r/min)

input temperate (°C)

motor power (kw)

Output (t/h)

Reference

Φ600×6000

3-5

3-8

≤700

3

2-4



Φ800×8000

3-5

3-8

≤700

4

3-7



Φ800×10000

3-5

3-8

≤700

4

7-10



Φ1000×10000

3-5

3-8

≤700

5.5

8-12



Φ1200×12000

3-5

3-8

≤700

11

10-15



Φ1500×12000

3-5

2-6

≤800

15

14-18



Φ1800×12000

3-5

2-6

≤800

18

16-22



Φ2200×12000

3-5

1.5-6

≤800

18.5

20-28



Φ2200×18000

3-5

1.5-6

≤800

22

25-32



Φ2200×20000

3-5

1.5-6

≤800

30

30-40



Φ2400×20000

3-5

1.5-5

≤800

37

36-45



Low Noise and Best Offer Sand Rotary Dryer 0
